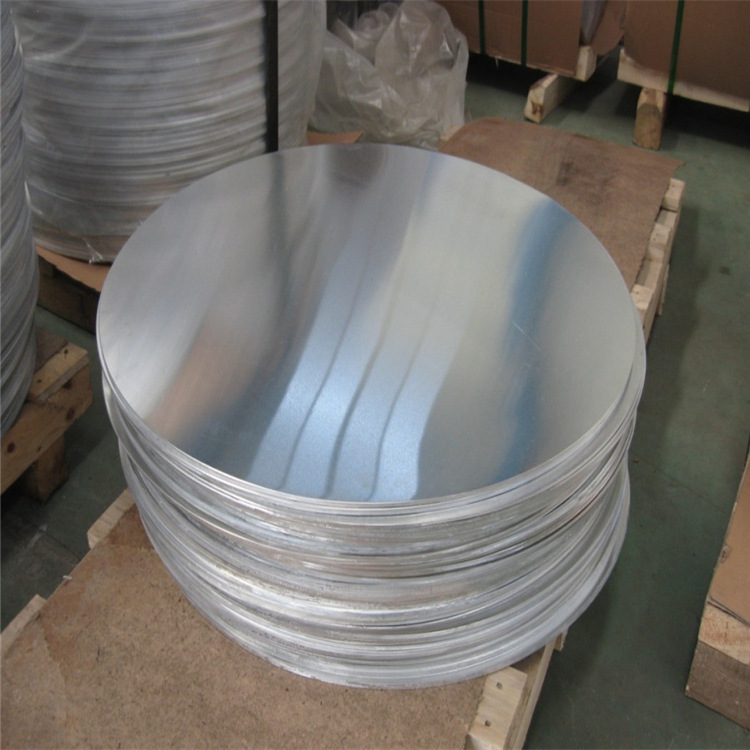

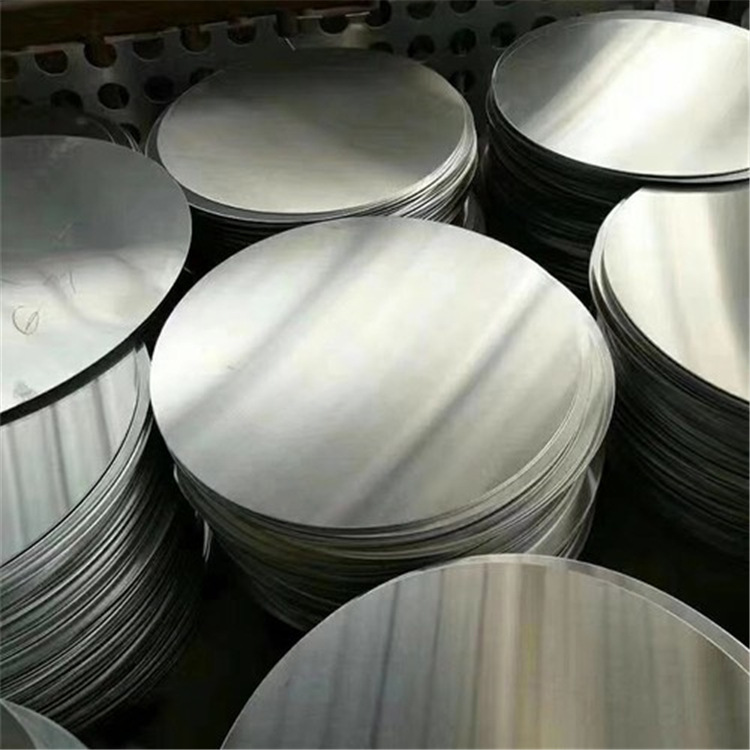

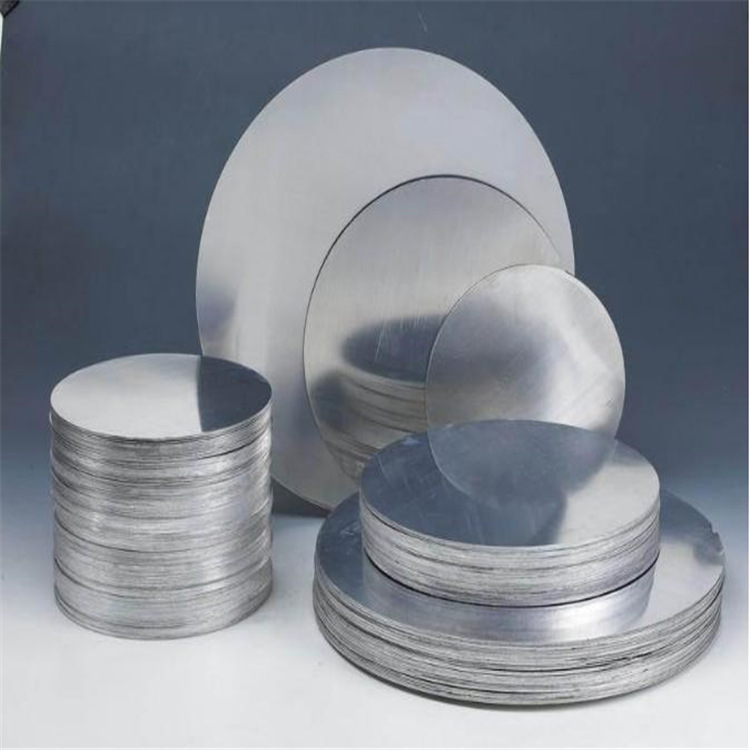

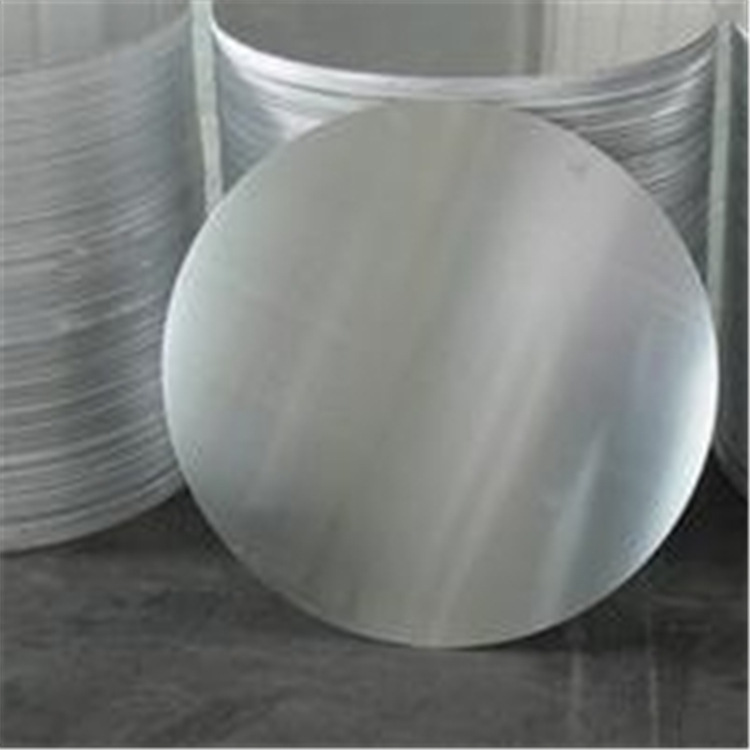

1060h24 aluminum disk 0.15mm, sign aluminum plate 0.2mm, triangular aluminum plate 0.5mm

XIN HONG Materials Co,.Ltd. 12yr.

Contacts Mr LI Chat

Mobile 18066212379

E-mail 2402493303@qq.com

LBSbxg

WhatsApp wechat:LBSbxg

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

name: pure aluminum

brand: south-south aluminum

brand: 1060

origin: china

aluminum content: 99.6

item no.: 1060

impurity content: 0.00010

granularity: 1000

Primary business involves high-quality domestic alloy aluminum materials and alloy copper materials, as well as original ALCOA alloy aluminum sheets, aluminum rods, and profiles (7075, 6061, 5052, 20241060, 1050, 170, 1100, 085, 090, 1350, A12, LY12, 2014, 2017, 3003, 3004, 5005, 5500, 5506, 583, 5754, A06, 6063, 6082, 6010, 6015, 7500, 7475, A04, 7021, and various grades and states), anodized aluminum plates, and other industrial raw materials. These are widely used in aerospace, shipbuilding, mechanical equipment, mold manufacturing, hardware products, and other industries.

undefined

10:00 Pure Aluminum Properties

Editor

1060 Aluminum AlloyForPure aluminumFormed by adding a small amount of copper element, it possesses excellent forming and processing properties, high corrosion resistance, and goodWeldabilityand electrical conductivity. Widely used in products with low strength requirements, such as chemical instruments, thin sheet components,Deep pullorSpin pressingConcave utensils, welded parts, heat exchangers, clock surfaces and dials, nameplates, kitchenware, decorations, reflective devices, etc. Product characteristics of mirror-like aluminum plates: 1. Hardness characteristics: Uniform hardness makes it suitable for complex stamping, bending, stretching, and shaping without easy cracking. 2. Surface treatment characteristics: Pure material, suitable for high-demand and stable anodized surface treatment [1]

Common states of aluminum materials: T351, H112, T651, T7451.

Aluminum material HX sub-status codes: H1, H2, H3, H4.

Aluminum material sub-category codes: H111, H112, H116.

Aluminum material HXY sub-status codes: HX1, HX2, HX3, HX4, HX5, HX6, HX7, HX8, HX9

<t_1060Pure Aluminum Chemical Composition>

Aluminum Al: 99.6

Si ≤ 0.25

Copper Cu ≤ 0.05

Mg ≤ 0.05

Zn ≤ 0.05

Mn ≤ 0.05

Ti ≤ 0.03,

Vanadium V ≤ 0.05

Iron Fe: 0.000～0.400

<t_1060Pure Aluminum Mechanical Properties>

Editor

Tensile strengthσb (MPa) 95～125

ConditionsYield strengthσ0.2 (MPa) ≥ 75

Note: Mechanical properties of pipes at room temperature

Sample dimensions: all wall thicknesses

1060 Pure Aluminum Heat Treatment Process

Editor

1)Complete annealing: Heat at 390～430°C; depending on the materialEffective thicknessDifferent; the heat retention time is 30–120 minutes; cool down at a rate of 30–50°C/h with the furnace until reaching 300°C, then cool further in a vacuum.

2)Rapid annealing: Heat at 350–370°C; the heat retention time varies depending on the effective thickness of the material, ranging from 30 to 120 minutes; cool by air or water. 3) Quenching and aging: Quench at 500–510°C, then cool by air;Artificial aging95～105℃, 3 hours, air cooling;Natural agingRoom temperature 1:20 h

1060 Pure Aluminum Weight Calculation Formula

Editor

Length * Width * Height * Density (0.0028) = kg/m

Radius * Radius * Length * 3.14 * Density (0.0028) = kg/m
