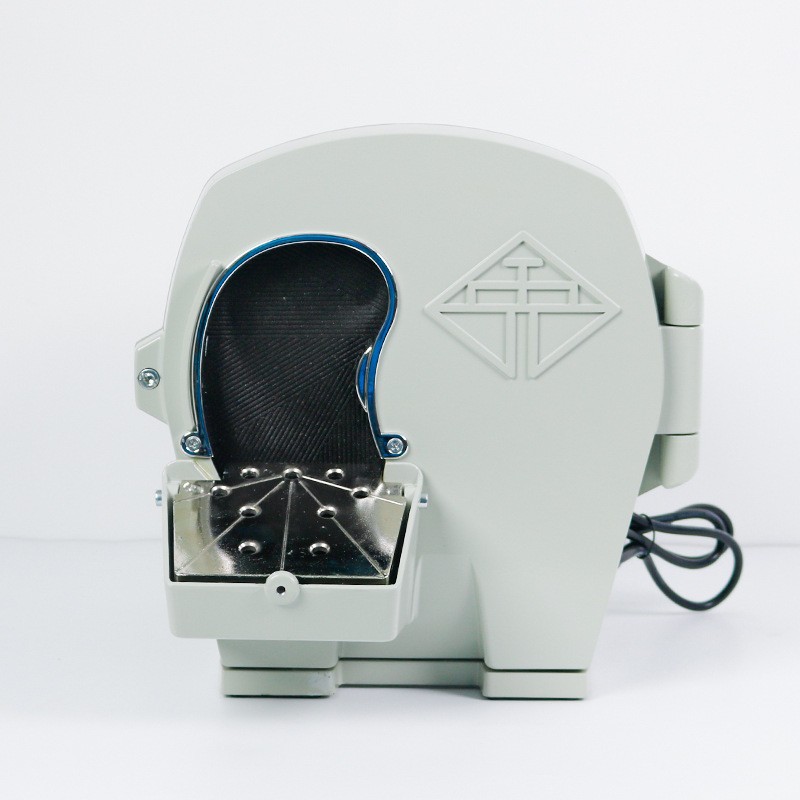

dental plaster finishing machine water mill plaster grinding machine model finishing machine mechanic wet and dry finishing machine 牙科石膏修整机水磨机石膏修磨机模型修整机技工干湿两用修整机

EXW Price:

CN¥ 850.0 ~ CN¥ 960.0

Min. order: 50 piece

50 piece

color classification

Specifications

jinguang plaster finishing machine (with resin abrasive disc), national standard 220v 金光石膏修整机（配树脂砂片）国标220V	CN¥ 850.0
jinguang plaster finishing machine (with resin abrasive disc), eu standard 220v 金光石膏修整机（配树脂砂片）欧标220V	CN¥ 850.0
jinguang plaster finishing machine (with resin abrasive disc), us standard 110v 金光石膏修整机（配树脂砂片）美标110V	CN¥ 850.0
jinguang plaster finishing machine (with resin abrasive disc), uk standard 220v 金光石膏修整机（配树脂砂片）英标220V	CN¥ 850.0
jinguang plaster finishing machine (with solenoid valve) equipped with diamond abrasive paper, national standard 220v. 金光石膏修整机（带电磁阀）配金刚石砂片国标220V	CN¥ 960.0
jinguang plaster finishing machine (with solenoid valve) equipped with diamond abrasive paper, european standard 220v. 金光石膏修整机（带电磁阀）配金刚石砂片欧标220V	CN¥ 960.0
jinguang plaster finishing machine (with solenoid valve) equipped with diamond abrasive paper, us standard 110v. 金光石膏修整机（带电磁阀）配金刚石砂片美标110V	CN¥ 960.0
jinguang plaster finishing machine (with solenoid valve) equipped with diamond abrasive paper, british standard 220v. 金光石膏修整机（带电磁阀）配金刚石砂片英标220V	CN¥ 960.0
jinguang plaster finishing machine (without solenoid valve) with diamond abrasive paper, national standard. 金光石膏修整机（不带电磁阀）配金刚石砂片国标	CN¥ 900.0

Send Inquiry Chat with supplier

yiwu biotect medical Co.ltd 3yr.

Contacts Elena Chat

Mobile 13516898881

E-mail 249899822@qq.com

biotech0529

WhatsApp +8613516898881

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

function: others

fragrance: fragrance-free

import or not: no

brand type: domestic brand

product barcode: 20245293

item no.: 2024

net content: 20kg

applicable object: adult

packing quantity: 1 set/box

whether cross-border export is exclusively available: no

color classification: golden light plaster finishing machine (with resin sand sheet) national standard 220

applicable scenarios: commercial

product type: trimming machine

ip authorization: no

material: others

Golden Light gypsum box repair specification (the box specification with and without solenoid valve is the same):

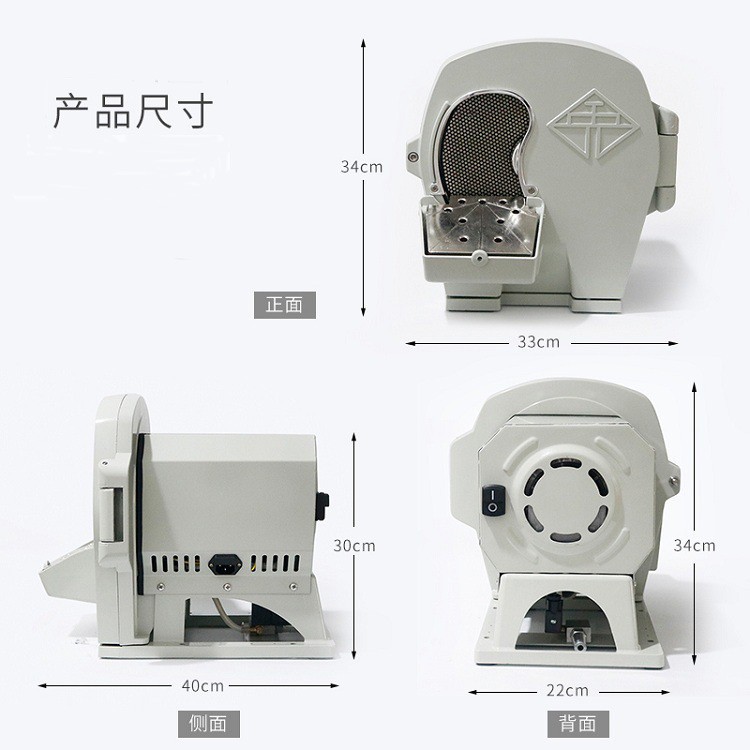

① Size of the Chinese outer box: 450*385*400mm (1 unit/box), ② Size of the neutral outer box: 450*385*400mm (1 unit/box), Weight of a single product: 19.25 Kg

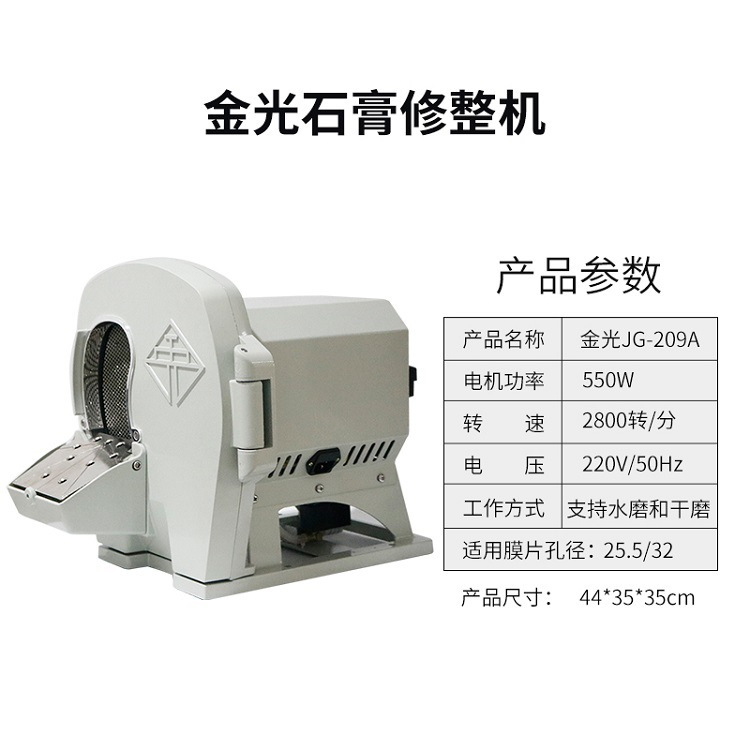

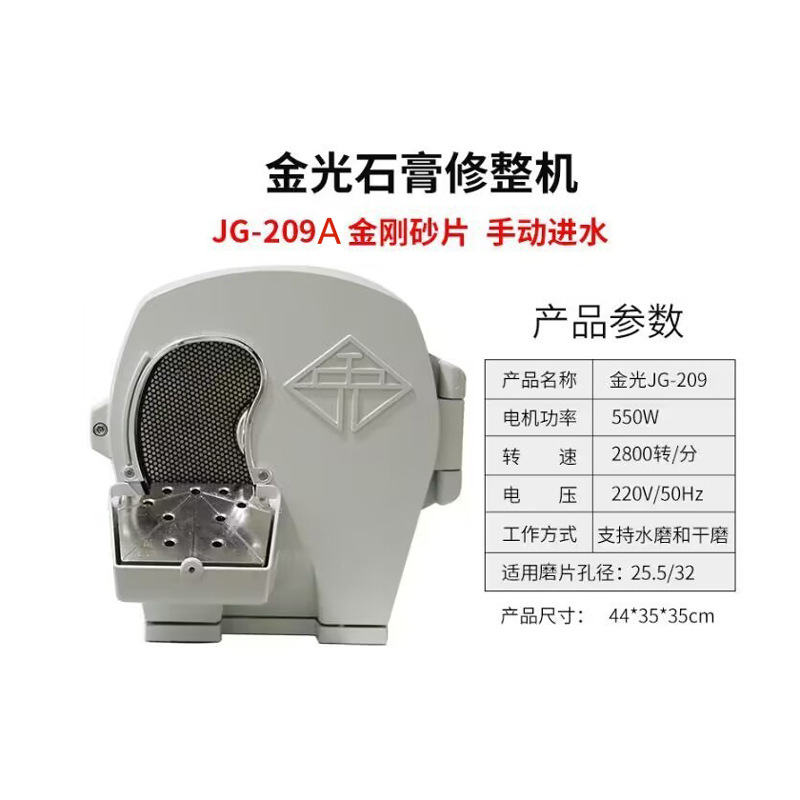

Jinguang Gypsum Repair Machine (with solenoid valve) JG-209A Technical Parameters:

Power input: 220V/50Hz, 110V/60HzInput power: 550W, motor speed: 2800 revolutions per minute, configuration: emery discs, 110V solenoid valve. Product features: adjustable grinding angle, supports both water grinding and dry grinding.

Jinguang Gypsum Repair Machine (with solenoid valve) JG-209A,Manual water supply refers to turning on the faucet manually, while automatic water supply means the machine does it automatically.solenoid valveJust like a washing machine, there's no need for a switch or faucet; it can be filled with water by turning it on.

Technical Parameters of JG-209 Golden Light Gypsum Shaper Machine

Power input: 220V/50Hz, 110V/60Hz; Input power: 550W; Motor speed: 2800 revolutions per minute; Configuration: resin sand sheet; Product features: adjustable grinding angle, supports dry grinding

A high-power, low-noise plaster repair machine. The motor has a power of 550W, a speed of 2800 revolutions per minute, and a voltage of 220V/50Hz (110V/60Hz). The motor mounting base and bracket of its overall structure

Working method: water grinding.

Work grinding discs: Quartz sand discs/SiC discs, standard options: SiC discs: Applicable disc hole diameter: 2.5.5/3.2

1. Level the machine (the 4 holes on both sides of the base allow customers to install expansion screws for fixation), connect to the water inlet pipe (the electric valve at the water inlet pipe is controlled during operation and syncs with the motor switch), and remove the water outlet pipe (during operation, the water inlet pipe).

2. Power on the device, start the motor, and observe for any abnormal noise during operation without load.

3. There are three angles available on the work platform, which can be adjusted using the adjustment screw (7).

4. Replace the grinding wheel. Cut off the power, open the front cover (11), remove the grinding wheel cover (1) (if not convenient, you can also remove the spray pipe (13) at the same time to replace the grinding wheel).

5. After completing the work, any remaining debris must be cleared promptly.

General Issues and Troubleshooting

1. Abnormal noise during work

Reason: ① The shaft sleeve is loose; ② The grinding tool has poor flatness.

Removal methods: ① The sand blade (16) can be removed, and the two set screws on the shaft sleeve (2) can be tightened again using the attached wrench; ② Replace with a new sand blade.

2. After power on, the machine does not operate.

Reason: ① Motor fuse; ② Motor burned out; ③ Switch malfunction.

Exclusion methods: ① Replace the fuse (22 socket built-in); ② Replace the motor; ③ Replace the switch
