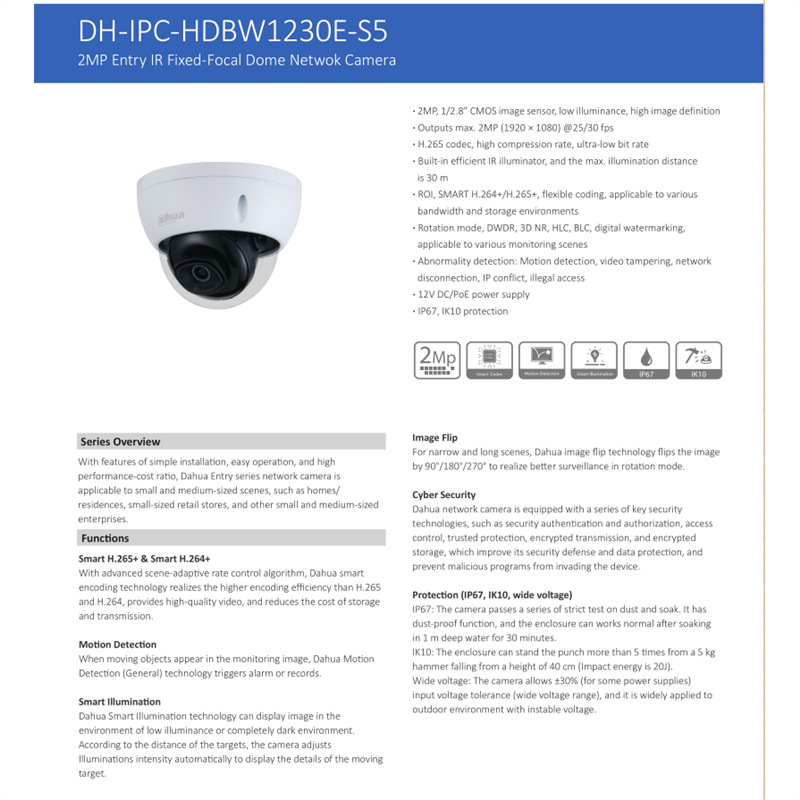

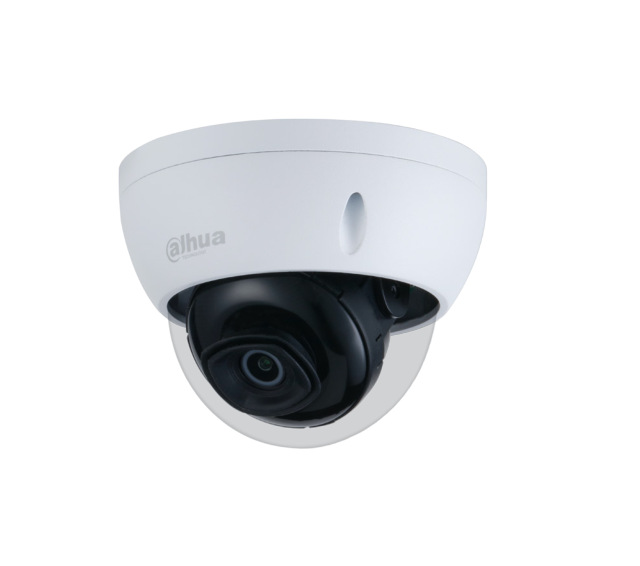

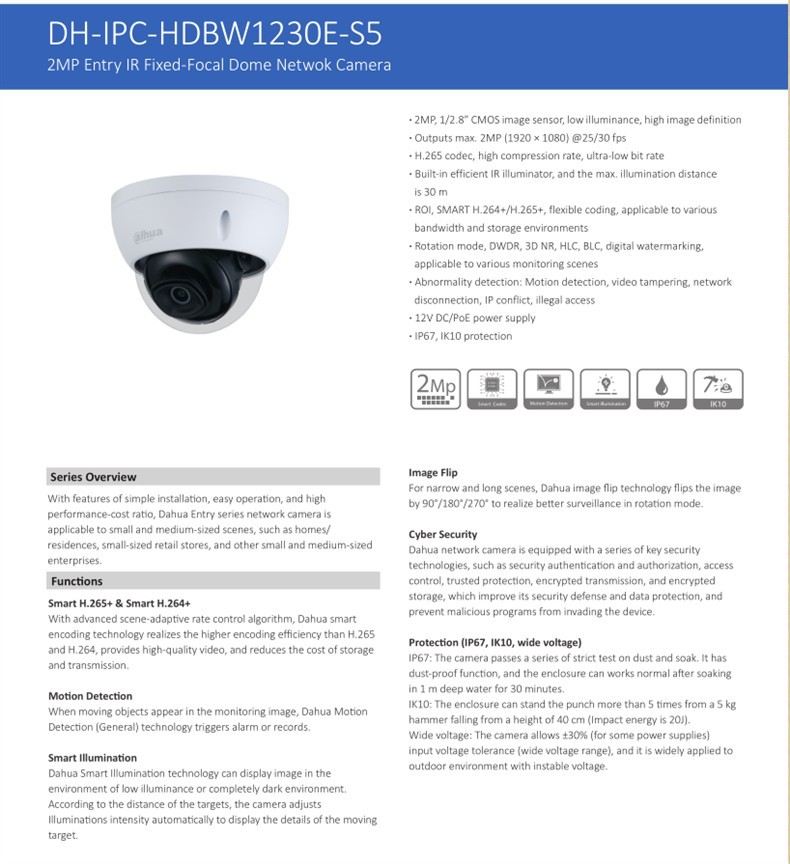

ipc-hdbw1230e-s5 2mp entry ir fixed-focal dome netwok camera IPC-HDBW1230E-S5 2MP Entry IR Fixed-Focal Dome Netwok Camera

Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is
Applicable to small and medium-sized premises, such as homes/
residences, small-scale retail stores, and other small and medium-sized businesses
enterprises.
Functions
Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart
The encoding technology achieves a higher encoding efficiency compared to H.265.
and H.264, provides high-quality video, and reduces storage costs
and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers an alarm or records data.
Smart Lighting
Dahua Smart Illumination technology can display images
environment with low illuminance or a completely dark environment.
According to the distance of the targets, the camera adjusts
The illumination intensity is automatically adjusted to display the details of the movement
target.

· 2MP, 1/2.8” CMOS image sensor, low light performance, high image resolution
· Maximum resolution: 2 MP (1920 × 1080), at 25/30 fps
· H.265 codec, high compression ratio, ultra-low bit rate
· Built-in efficient IR illuminator, and the maximum illumination distance
is 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking
Applicable to various monitoring scenarios
· Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access
· 1.2V DC/PoE power supply
· IP6.7, IK10 protection

Image Flip
For narrow and long scenes, Dahua image flip technology flips the image
By 90°, 180°, and 270°, to achieve better surveillance in rotation mode.
Cyber Security
The Dahua network camera is equipped with a series of key security features
technologies, such as security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage, which enhances its security defense and data protection, and
Prevent malicious programs from accessing the device.
Protection (IP6.7, IK10, wide voltage)
IP6.7: The camera undergoes a series of rigorous tests regarding dust and immersion.
dust-proof function, and the enclosure can operate normally after being soaked
In 1 meter deep water for 30 minutes.
IK10: The enclosure can withstand more than 5 impacts from a 5 kg force.
A hammer falls from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera supports ±30% (for some power supplies)
Input voltage tolerance (wide voltage range), and it is widely applied to
Outdoor environment with unstable voltage.
