Data-Based Product Summary of Polycarbonate (PC) Solid Sheet

1. Raw Material & Core UV Protection Parameters

1. 1. Raw Material: Virgin polycarbonate pellets from Bayer & Sabic; recycled materials are strictly prohibited
2. 2. UV Coating: Double-sided 50-micron anti-UV coating on both sheet surfaces
3. 3. Quality Warranty: 10-year weather resistance guarantee
4. 4. UV Blocking Performance: Ultraviolet transmittance ≤ 0.001%

2. Standard Size Specifications

Width (Customizable Available)

1220mm, 1560mm, 1820mm, 2100mm

Length

Fully customized on demand

Thickness Range

2mm / 3mm / 4mm / 5mm / 6mm / 7mm / 8mm / 9mm / 10mm

Color Options

Clear, Bronze, Blue, Green, Opal, Grey and other custom colors

Roll & Sheet Standard Packing

• • Roll: 1.22m×30M / 1.56m×30M / 1.82m×30M / 2.1m×30M per roll
• • Flat Sheet: 1.22m×2.44M per piece

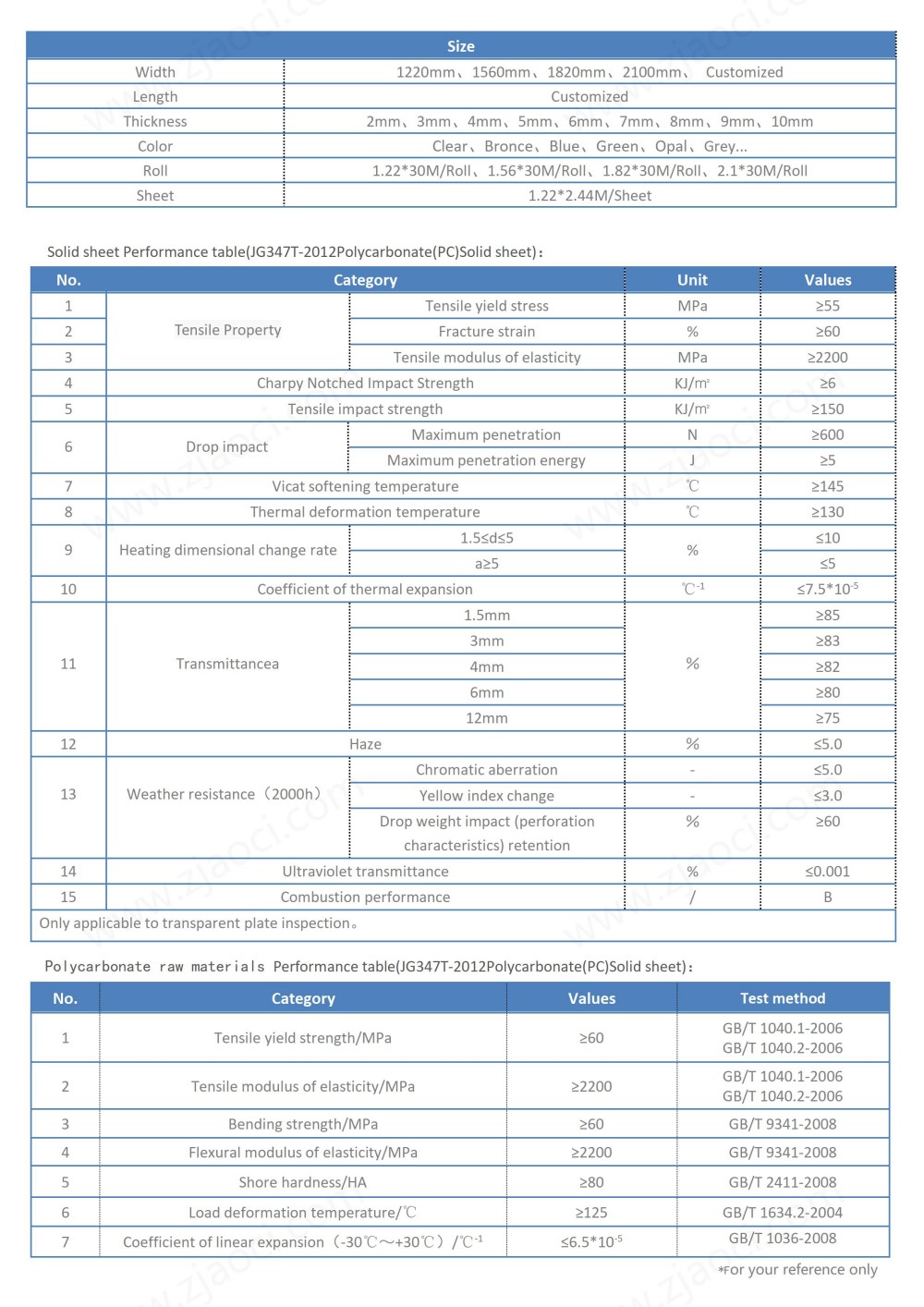

3. Core Physical Performance Data (Compliant with JG347T-2012 Standard)

Mechanical Properties

Thermal Properties

Light Transmission & Optical Performance

Weather Resistance (2000h Accelerated Aging Test)

1. 1. Chromatic Aberration: ≤5.0
2. 2. Yellow Index Change: ≤3.0
3. 3. Drop Weight Impact Performance Retention Rate: ≥60%

Combustion Grade

Combustion Performance Class B

4. Key Product Advantages (Data Supported)

1. 1. Ultra-high impact resistance: Unbreakable safety glass alternative, explosion-proof
2. 2. Lightweight: Low self-weight, easy transportation & installation
3. 3. High light transmittance: Adjustable light transmission as customized
4. 4. Full weather & anti-UV performance: 10-year service life supported by double-sided 50μm UV coating

5. Typical Application Scenarios

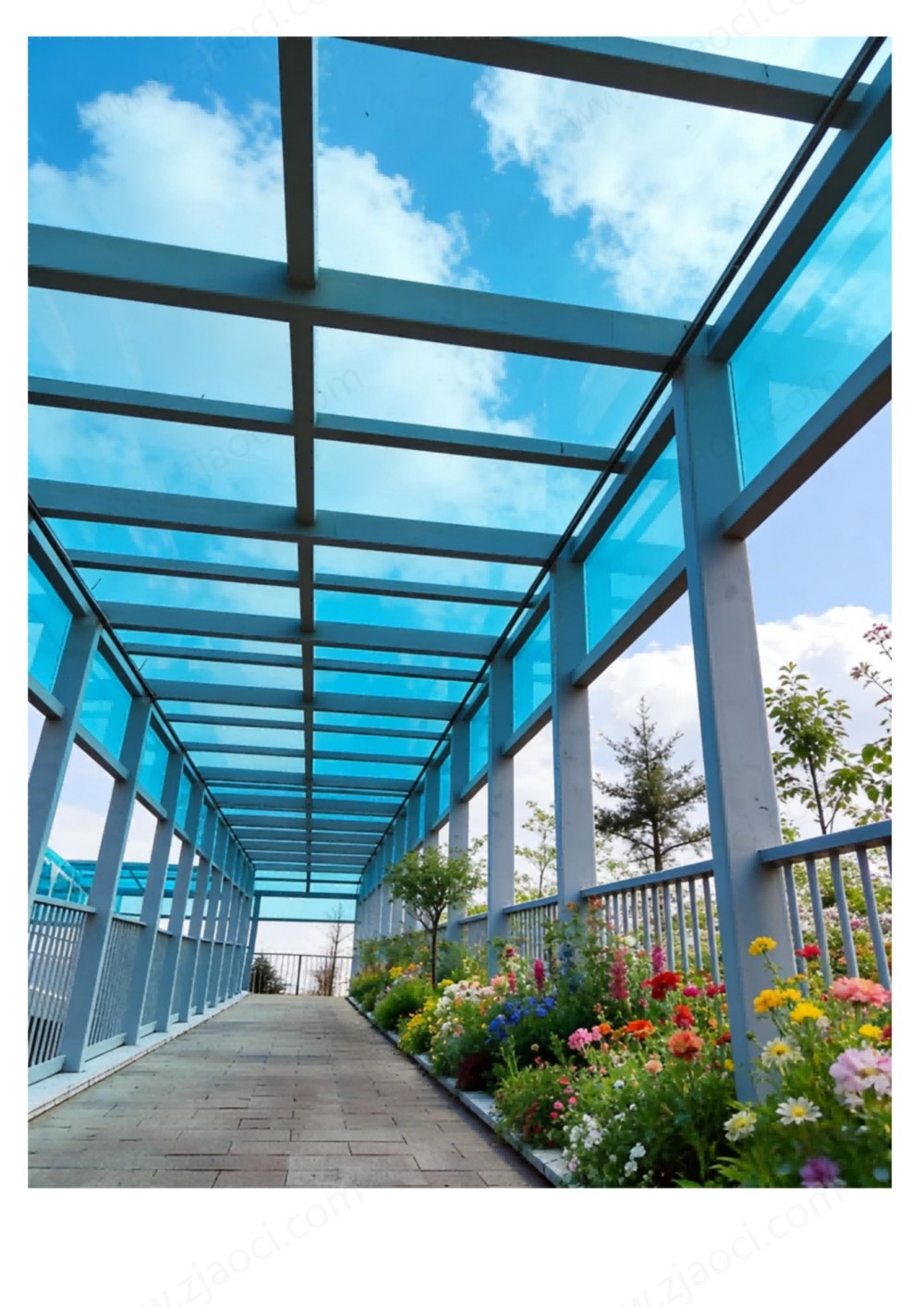

• • Architectural roof & daylight glazing
• • Unbreakable safety glass panels
• • Explosion-proof windows & protective shields
• • Carports, rain sheds & pedestrian canopies
• • Advertising billboards
• • Noise barrier walls

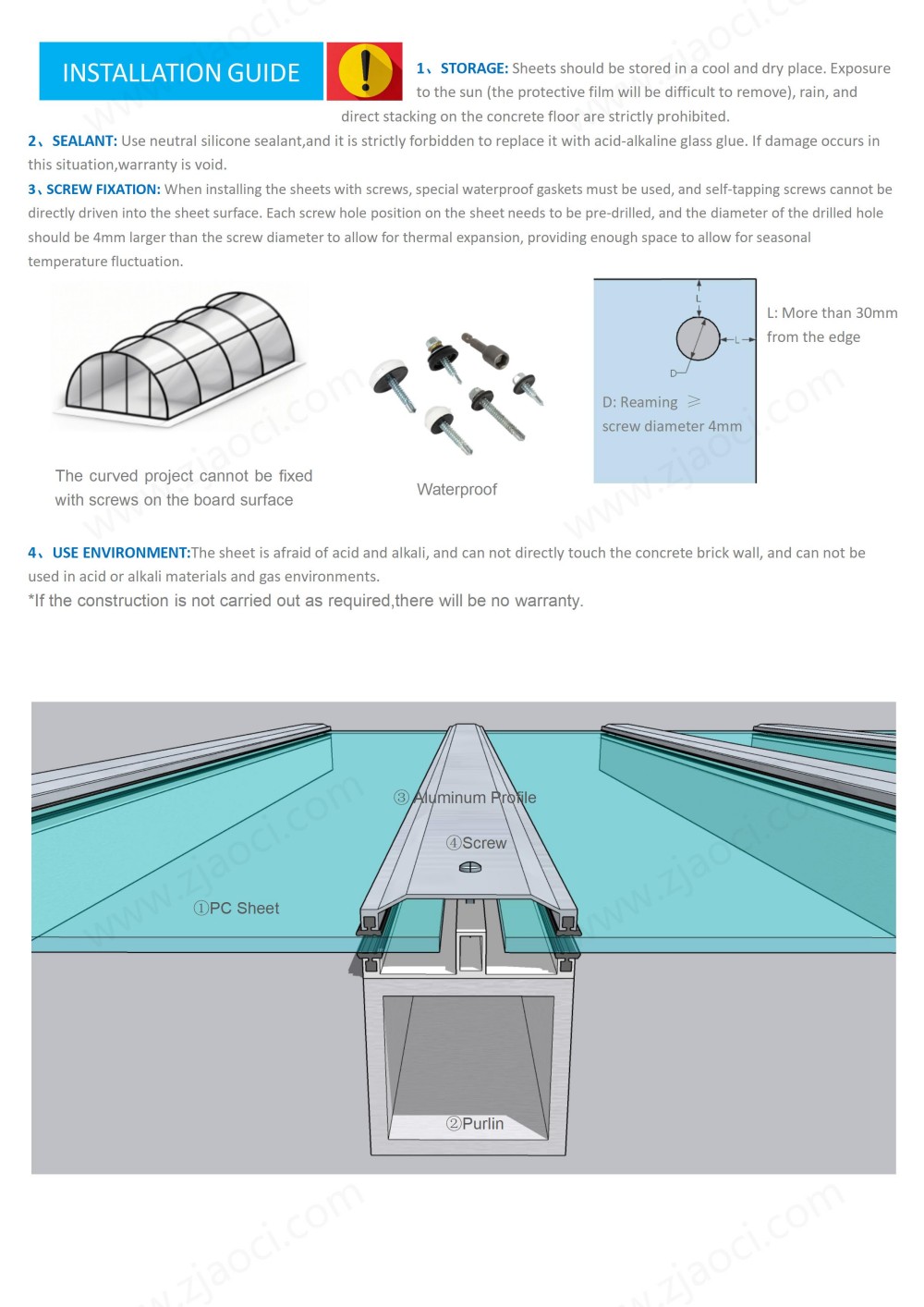

6. Standard Installation Technical Data & Rules

1. 1. Storage Requirement: Cool & dry environment; avoid direct sunlight, rain and direct contact with concrete ground
2. 2. Sealant Requirement: Only neutral silicone sealant; acid & alkaline glass glue invalidates warranty
3. 3. Screw Fixing Standard
   • • Pre-drill holes 4mm larger than screw diameter to reserve thermal expansion space
   • • Hole edge distance ≥30mm
   • • Special waterproof gaskets mandatory for all screws
   • • Curved surfaces cannot be fixed with surface screws
4. 4. Service Environment Restriction: Cannot contact acid/alkali concrete, bricks, or corrosive acid/alkali gas directly
5. 5. Liability Clause: Warranty void if construction fails to follow official installation guidelines

7. Production & Factory Support

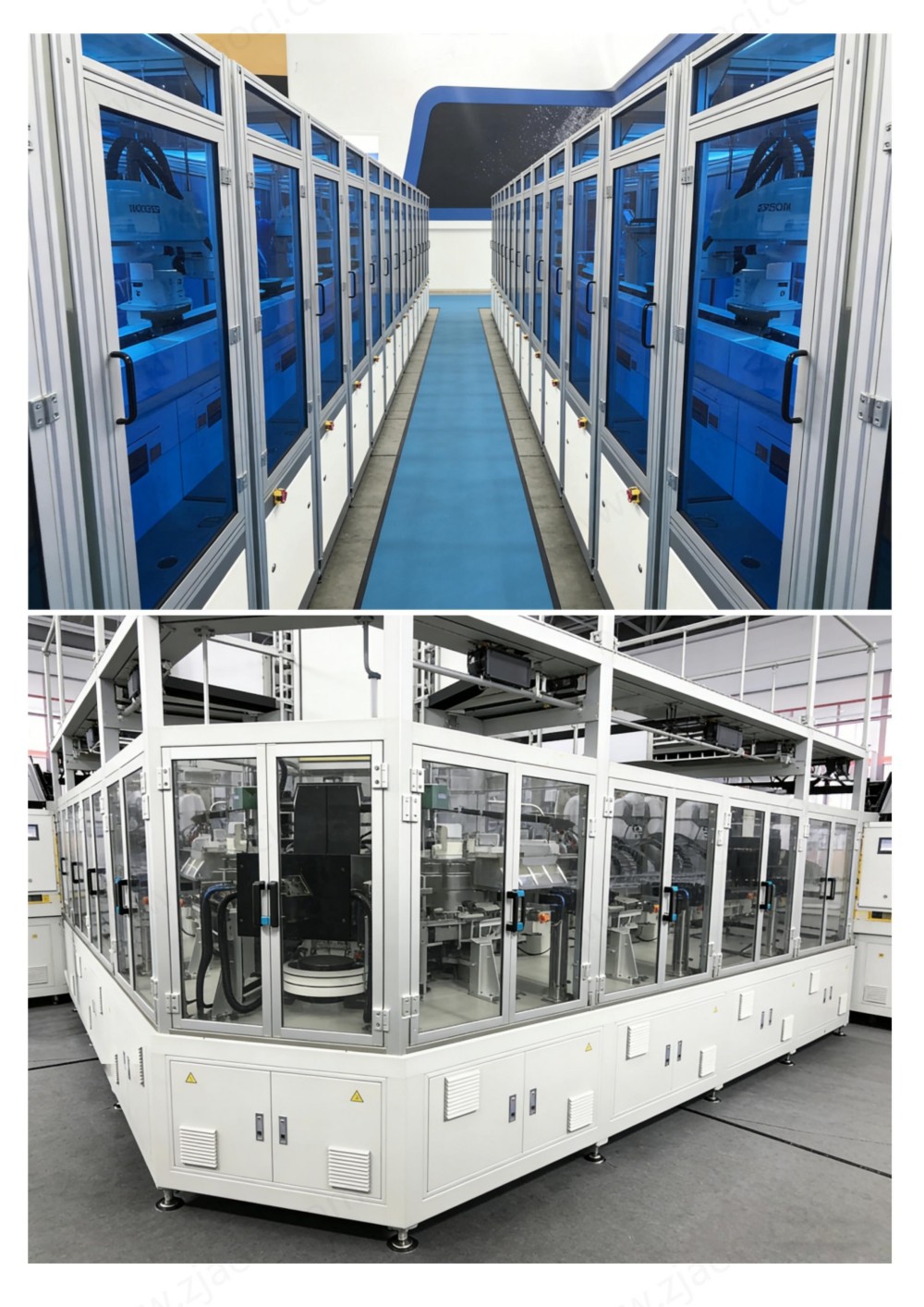

• • Fully automated intelligent production lines
• • Customizable size, thickness, color and light transmittance
• • Contact Email: polycarbonatesheet@qq.com
