PC Embossed Polycarbonate Sheet Product Summary (Pure Text Data Version)
1. Basic Material & Texture
-

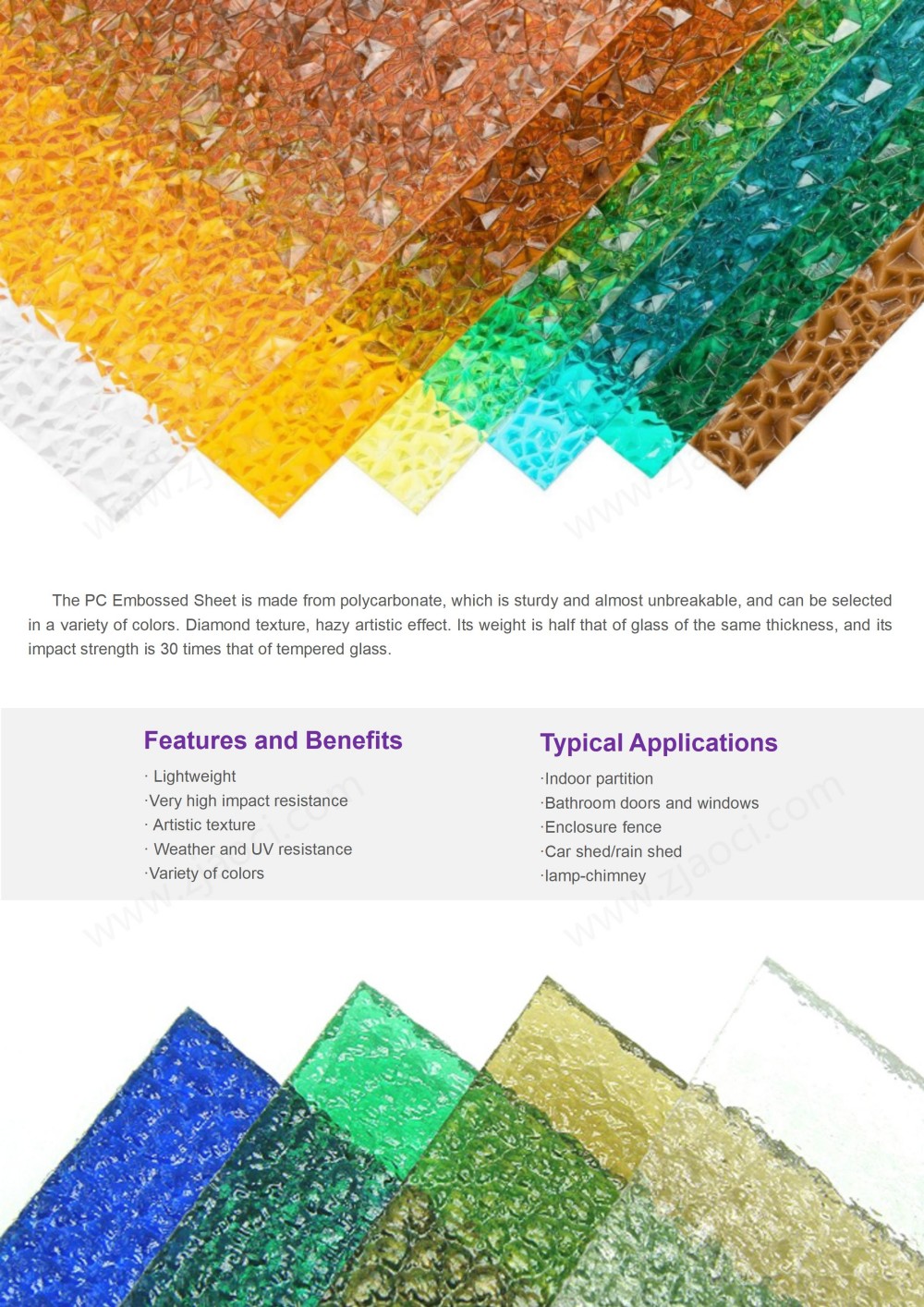

• Raw material: Polycarbonate (PC) solid sheet, diamond embossed texture, matte hazy decorative effect
-
• Core advantage vs glass: Same thickness weight = 1/2 of glass; impact strength = 30× tempered glass, sturdy & nearly unbreakable
2. Core Features & Advantages
-
1. Lightweight
-
2. Ultra-high impact resistance
-
3. Artistic diamond embossed texture
-
4. Weather & UV aging resistance
-
5. Rich customizable color options
-
6. Easy cutting, processing & installation
3. Typical Application Scenarios
-
• Indoor space partitions
-
• Bathroom doors & windows
-
• Boundary enclosure fences & gates
-
• Car sheds / outdoor rain awnings
-
• Lampshade & lighting fixture panels
4. Available Specifications
Size Series
-
1. Width: 1220mm / 1560mm / 1820mm / 2100mm (custom width supported)
-
2. Length: Fully customizable
-
3. Thickness range: 1.5mm ~ 6mm (optional single thickness: 1.5/2/3/4/5/6mm)
Supply Form
-
• Roll goods: 1.22×30M / 1.56×30M / 1.82×30M / 2.1×30M per roll
-
• Flat sheet goods: 1.22×2.44M / 2×3M per sheet
Standard Color Palette

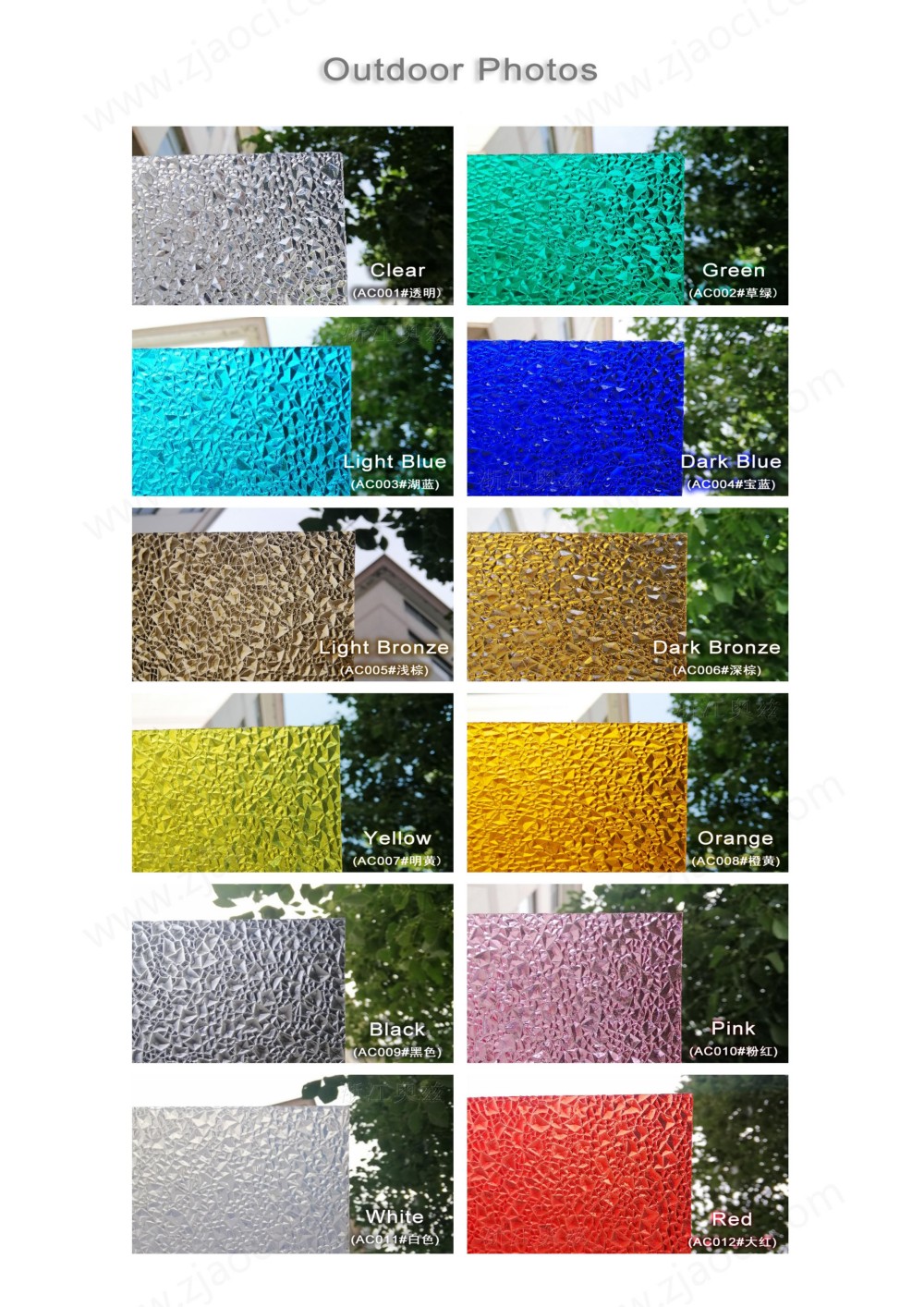

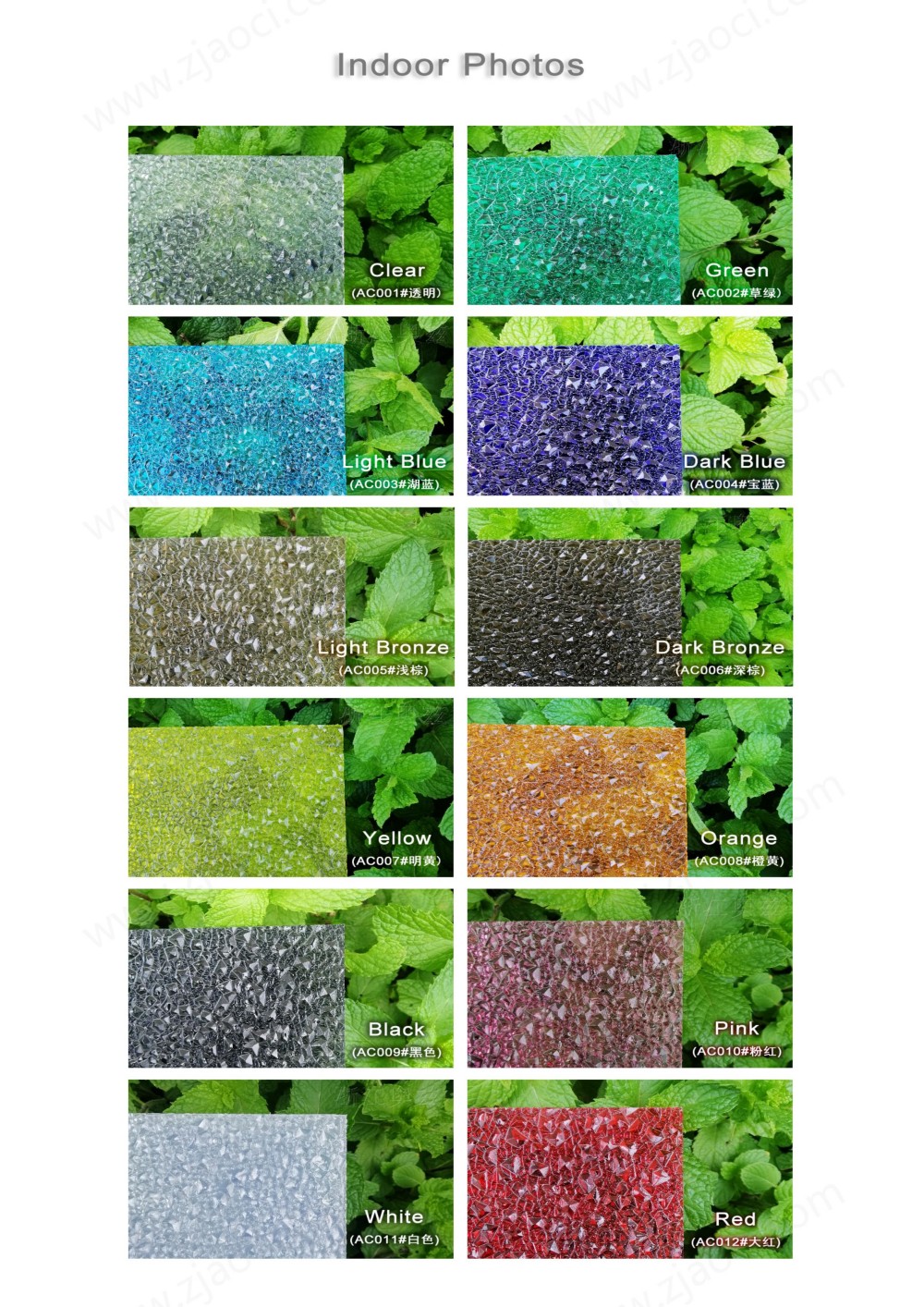

Clear, Light Bronze, Dark Bronze, Light Blue, Dark Blue, Green, Yellow, Orange, Black, White, Pink, Red, Opal, Grey
5. Main Physical Performance Standard (JG347T-2012 PC Solid Sheet Standard)
Mechanical Properties
-
1. Tensile yield strength: ≥60 MPa (test GB/T 1040.1-2006 / GB/T 1040.2-2006)
-
2. Tensile elastic modulus: ≥2200 MPa
-
3. Bending strength: ≥60 MPa (test GB/T 9341-2008)
-
4. Flexural elastic modulus: ≥2200 MPa
-
5. Shore hardness: ≥80 HA (test GB/T 2411-2008)
-
6. Fracture strain: ≥60 %
-
7. Charpy notched impact strength: ≥6 KJ/㎡
-
8. Tensile impact strength: ≥150 KJ/㎡
-
9. Drop penetration resistance: ≥600 N; penetration energy ≥5 J
Thermal Properties
-
1. Load deformation temperature: ≥125 ℃ (GB/T 1634.2-2004)
-
2. Vicat softening temperature: ≥145 ℃
-
3. Thermal deformation temperature: ≥130 ℃
-
4. Linear expansion coefficient (-30℃~+30℃): ≤6.5×10⁻⁵ /℃; max ≤7.5×10⁻⁵ /℃
-
5. Heating dimensional change rate: ≤10% (1.5–5mm thickness); ≤5% (≥5mm thickness)
Optical & Weather Resistance
-
1. Haze value: ≤5.0 %
-
2. UV transmittance: ≤0.001 %
-
3. 2000h accelerated weathering test:
-
• Chromatic aberration ≤5.0
-
• Yellow index change ≤3.0
-
• Drop impact performance retention ≥60 %
-
4. Combustion grade: Class B
6. Standard Installation & Storage Guidelines
1. Storage Requirement
Store in cool, dry indoor area; strictly forbid long-term sunlight exposure, rain soaking, direct stacking on concrete ground (protective film will be hard to peel).
2. Sealant Rule
Only neutral silicone sealant allowed; acid/alkaline glass glue prohibited. Damage from improper glue voids product warranty.
3. Screw Fixing Specification
-
• Special waterproof gaskets mandatory for all screw installation
-
• Pre-drill holes before screwing; hole diameter ≥ screw diameter +4mm (reserve thermal expansion gap)
-
• Hole edge distance ≥30mm
-
• Self-tapping screws cannot be directly driven into sheet surface
-
• Curved molding sheets cannot be fixed with surface screws
4. Service Environment Restriction
PC sheet reacts with acid & alkali; cannot directly contact concrete/brick walls, cannot be used in acidic/alkaline material & gas environments.
5. Protective Film
Remove film immediately after construction; film only prevents scratches during transport & installation.
6. Cutting Method
Cuttable via circular saw, jigsaw, utility knife; clean cutting debris with vacuum cleaner after cutting.
7. Cleaning Method
-
• Daily maintenance: Natural rainwater flushing
-
• Local stains: Diluted neutral household detergent (no corrosive agents/organic solvents)
-
• Avoid dry wiping (dust will scratch embossed surface)
-
• Large area cleaning: Low-pressure water gun flushing
Warranty Clause
All construction must follow official installation instructions; non-compliant installation invalidates product warranty.
