Description
Reviews(/5)

Material: Polycarbonate

Size: 1.22*50M

Softlite PC Corrugated Sheet Product Introduction

1. Product Basic Information

Item	Content
Product Name	Softlite PC Corrugated Sheet
Raw Material	Polycarbonate (Covestro / SABIC brand PC)
Surface Treatment	Double-sided anti-UV coating
Surface Texture	Frosted embossed surface, soft uniform light transmission
Core Advantages	1. Roll-type packaging, convenient transportation 2. Length can be customized on demand 3. Simple installation, fast construction speed 4. Excellent bending resistance: 1.5mm Softlite corrugated sheet ≈ 3mm solid PC flat sheet
Application Scenarios	Carport roof, sunshade canopy roofing panel
Design Concept	Easy to transport, Easy to install

2. Product Dimension Options

Dimension Item	Optional Parameters
Thickness	1.0mm / 1.2mm / 1.5mm / 1.8mm / 2.0mm
Fixed Width	1.26 m
Standard Roll Length	30–50 M per roll (custom length acceptable)

3. Complete Roll Specification Data Table

Specification (Thickness-Width-Length)	Weight (KG/roll)	Volume (m³)	Roll Diameter (M)
1.0mm (1.26m*50M)	78	0.36	0.6
1.2mm (1.26m*50M)	93.6	0.25	0.5
1.5mm (1.26m*30M)	70.2	0.36	0.6
1.8mm (1.26m*30M)	84.24	0.42	0.65
2.0mm (1.26m*30M)	93.6	0.48	0.7

4. Container Loading Data

Item	Parameter
Container Model	20GP standard container
Tested Product Spec	1.2mm (1.26m*50M) roll
Max Loading Quantity	85 rolls per 20GP

5. Raw Material & Production Process

Process Link	Details
Base Raw Material	Industrial polycarbonate bulk material & transparent PC particles
Key Production Process	Double-sided UV anti-aging co-extrusion coating
Production Equipment	Full automatic PC corrugated sheet extrusion production line

6. Packaging & Logistics

Section	Description
Outer Packaging	Kraft paper roll packaging for single coil
Transport Mode 1	Domestic bulk truck delivery
Transport Mode 2	Container sea freight for export
Production Base	Zhejiang Aojia Decoration Materials Co., Ltd.

7. Standard Installation Specifications

7.1 Gap Sealing Rule

All splicing gaps must be filled with neutral silicone sealant

1. Installation Type 1: Aluminum cover plate compresses the sheet joint gap
2. Installation Type 2: Splicing gap between two aluminum cover profiles
3. Node Detail Treatment: Neutral sealant filling required for all roof node joints

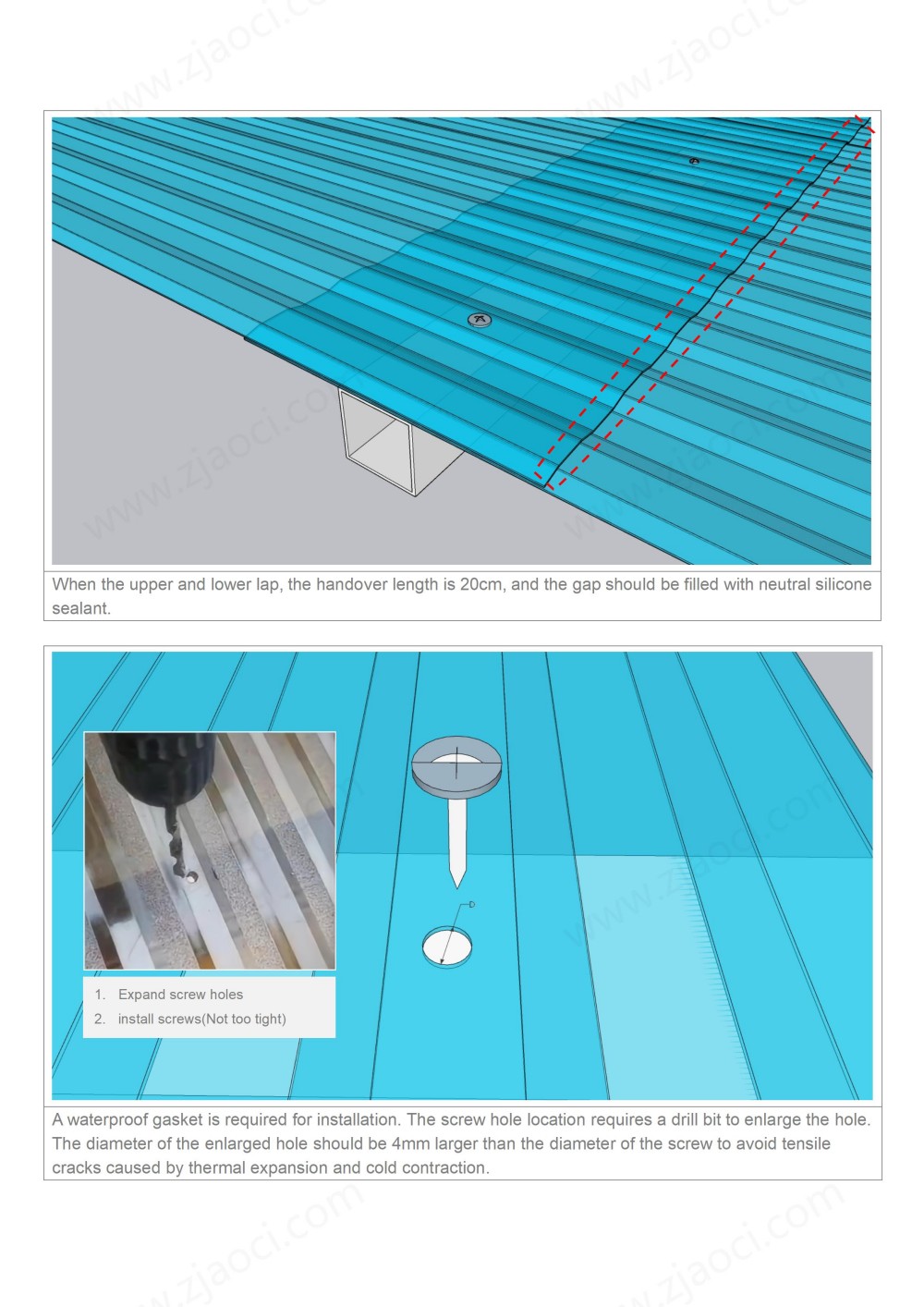

7.2 Overlap Lap Requirement

• Upper & lower sheet overlap length: 20 cm
• Seal all overlapping gaps with neutral silicone sealant

7.3 Screw Fixing Operation Steps & Notes

Operation Steps:

1. Drill and enlarge screw holes in advance
2. Install self-tapping screws (Do not over-tighten screws)

Mandatory Installation Notes:

1. Waterproof rubber gaskets must be matched with each screw
2. Expanded hole diameter = screw diameter + 4mm
3. Purpose of hole expansion: Prevent sheet cracking caused by thermal expansion and cold contraction

8. Contact Information

Business Email: polycarbonatesheet@qq.com

Update time：20261027112038

1.2mm1.2650M	CN¥ 1604.08
1.5mm1.2650M	CN¥ 2006.31

Softlite PC Corrugated Sheet - 50m/roll roofing sheet
