q2-wifi
|
CN¥ 195.0 |
q2b-wifi
|
CN¥ 195.0 |
q2-4g-eu/au
|
CN¥ 255.0 |
q2b-4g-eu/au
|
CN¥ 255.0 |
|
q2-4g-sea/cn
|
CN¥ 235.0 |
|
q2b-4g-sea/cn
|
CN¥ 235.0 |
|
q2-4g-glo
|
CN¥ 380.0 |
|
q2b-4g-glo
|
CN¥ 380.0 |
| Model<t_XXXXXXXXX> <t_XXXXXXXXX>Q2 | Version | Band | Wi-Fi | 4G | |
| Network | Wireless Wi-Fi frequency | 2.4 GHz | IEEE802.11b, 802.11g, 802.11n Draft | Support | N/A |
| 5.0 GHz | N/A | N/A | N/A | ||
| 4G nano SIM card | Southeast Asia | B1/B3/B5/B8/B34/B38/B39/B40/B41 | N/A | Support | |
| Australia | B1/B2/B3/B4/B5/B7/B8/B28/B40/B66 | N/A | Support | ||
| Japan | B1/B3/B8/B18/B19/B26 | N/A | Support | ||
| America | B2/B4/B5/B12/B13/B25/B26 | N/A | Support | ||
| Europe | B1/B3/B5/B7/B8/B20 | N/A | Support | ||
| Video | Master Sensor | 1080P | lngenic T31ZL+20603 | ||
| 1440P | lngenic T31ZX+4653 | ||||
| Resolution | Main stream: 1,920x1,800@15 FPS, Sub stream: 640x360@15 FPS | ||||
| Format | Compression format | H.265 | |||
| Video file format | MP4 | ||||
| Lens | 4mm F2.0 lens, low lux, wide viewing angle: 120 degrees. 4X digital zoom | ||||
| Night vision | 4 pcs array LEDs, night vision range 30m. Full-color for day and night | ||||
| Audio | Compression | G.726/AAC. Audio coding rate: 8Kbps, 16-bit | |||
| Input/Output | Built-in MIC and speakers; supports two-way audio | ||||
| Alarm | PIR motion detection | The maximum PIR detection range is 7 meters. | |||
| Alarm linkage | Alarms record videos to a Micro SD card; Alarms send mobile phone messages via push notification | ||||
| Video storage | Memory card | Supports up to 128G micro SD card; supports cloud storage | |||
| Record | PIR alarm recording. | ||||
| Replay | Support remote playback via the app and download videos | ||||
| Power Supply | Solar panels | 6W monocrystalline silicon solar panel | |||
| Battery | Built-in 2 pieces 2_1700 battery, total capacity up to 9_600mAh | ||||
| Operating Mode | Low power operating mode | ||||
| Wake-up method | PIR alarm – wake up, remote manual wake up | ||||
| Hibernation | When the alarm ends or the remote connection is disconnected. | ||||
| Power consumption | Sleeping standby power: 0.03W; Operating: 1.3W during the day / 3W at night | ||||
| PTZ | Rotation angle | Horizon Pan: 0°～180°, Vertical Tilt: 0°～120° | |||
| Spinning speed | Horizontal speed: 10°～30°/S; Vertical speed: 8°～25°/S | ||||
| Others | Power input | DC5V 2A | |||
| Environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing | ||||
| Shell material | ABS fireproof plastic material, resistant to vandalism, waterproof with IP6.5 rating | ||||
| Power cable | Type-C interface, 3-meter extension cable | ||||
| Product Size | 230mm × 190mm × 135mm (L × W × H) | ||||
| Package dimensions | 235*145*143 mm (L×W×H); | ||||

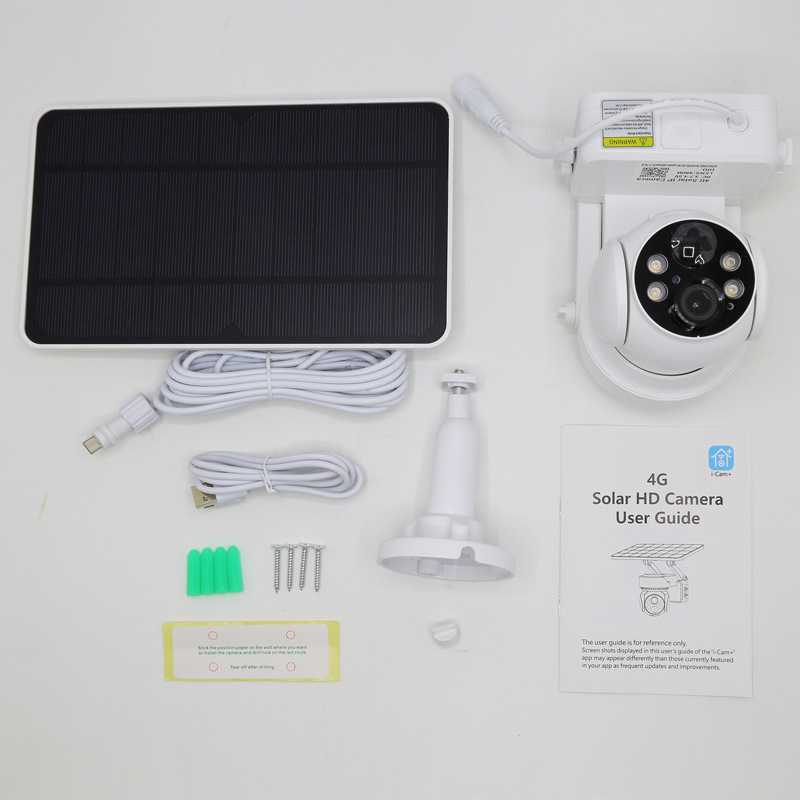

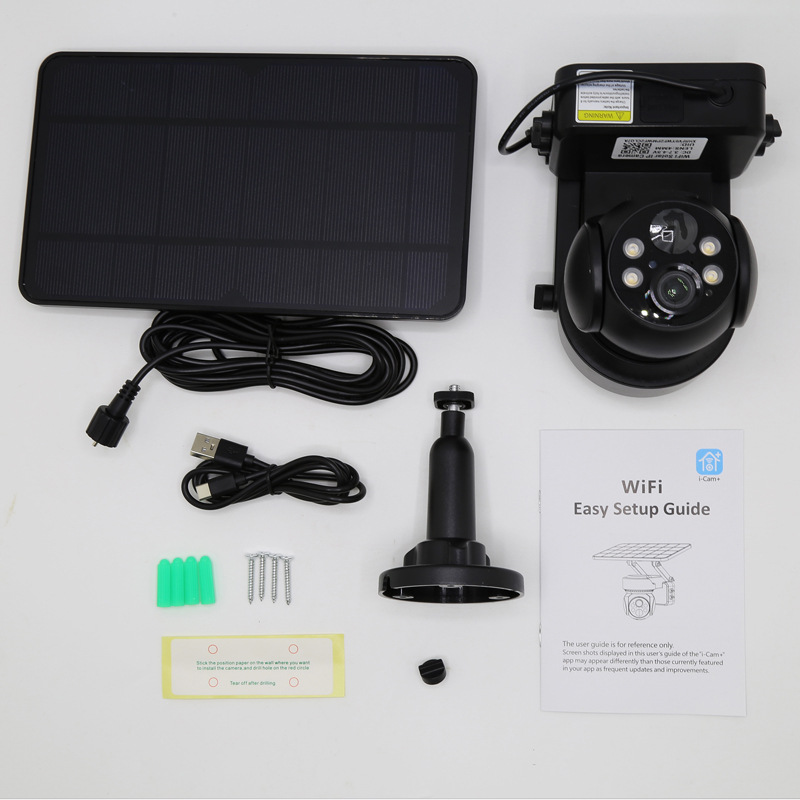

| Packing List | IP Camera, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual | ||||
