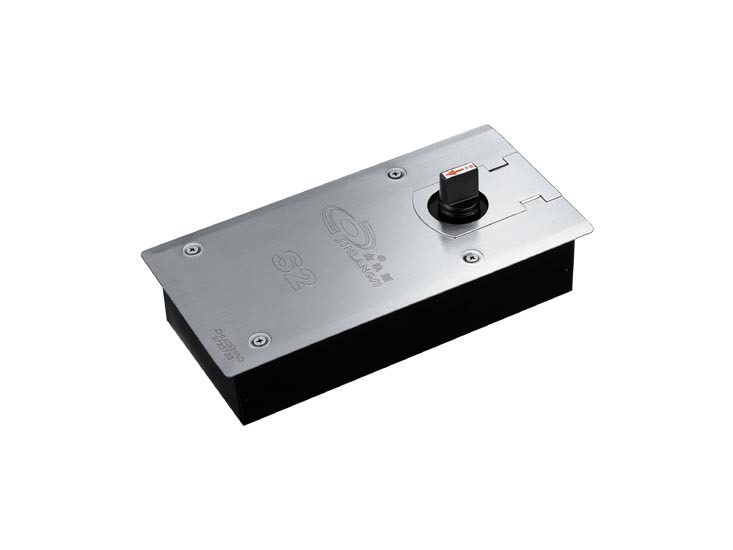

Jinlangsi S2 Classic Ground Spring Heavy-Duty Maximum Load 60-80kg

★Promotion★ High quality stainless steel handle, surface oxidation treatment, more durable, Never Fade!! Glass door can be installed, wooden door and aluminum alloy door frame can be installed, different door screw accessories are installed, please leave a message when placing an order! Handle is 1 Pack, 1 door is installed inside and outside, if it is door-to-door, you need to order 2 packs!

【 product style, total length, and hole spacing can be customized. If you need to customize the length and hole spacing, please contact Customer Service for inquiry.]]

product Introduction

•

• Product Name:	S2 Classic
  Surface Treatment:	Brushed
  Main material:	Cast iron
  Maximum door width:	800x2100mm
  Maximum load bearing:	60-80kg
  Scope of Application:	Plastic steel door, wooden door, 8-12mm tempered glass door
  Main functions:	Maximum opening of door leaf 170 degrees, two-way 90 degrees positioning
  Installation method:	Please refer to the following installation steps of ground Spring"
  Characteristic:	Open and close 500,000 times without damage

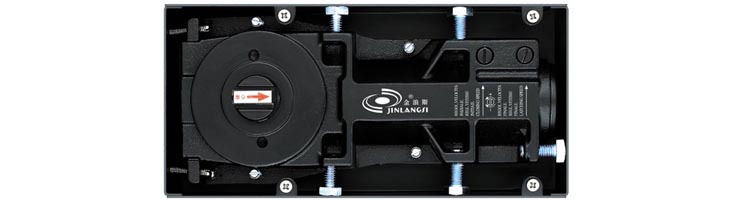

Description of floor spring body structure











Installation procedure of ground Spring





· Installation procedure of ground Spring

...............................................................................................................................................

(A) draw A line to make the center of the ground Spring rotating shaft coincide with the rotating shaft of the door clamp.

...............................................................................................................................................

(B) open holes on the ground according to the instructions and objects, and the size of the holes should be tight with the ground Spring shell and cannot be loosened.

...............................................................................................................................................

(C) put the ground spring into the open hole and straighten it.

...............................................................................................................................................

(D) lift the door leaf with the door clamp and insert the rotating shaft of the ground spring into the rotating shaft hole of the door leaf.

...............................................................................................................................................

(E) adjust the screws in the three directions of the ground Spring, keep the door leaf vertical, and the upper and lower rotation axes coincide.

...............................................................................................................................................

(F) adjust the closing speed.

...............................................................................................................................................

(G) cover the decorative cover of ground Spring.

...............................................................................................................................................

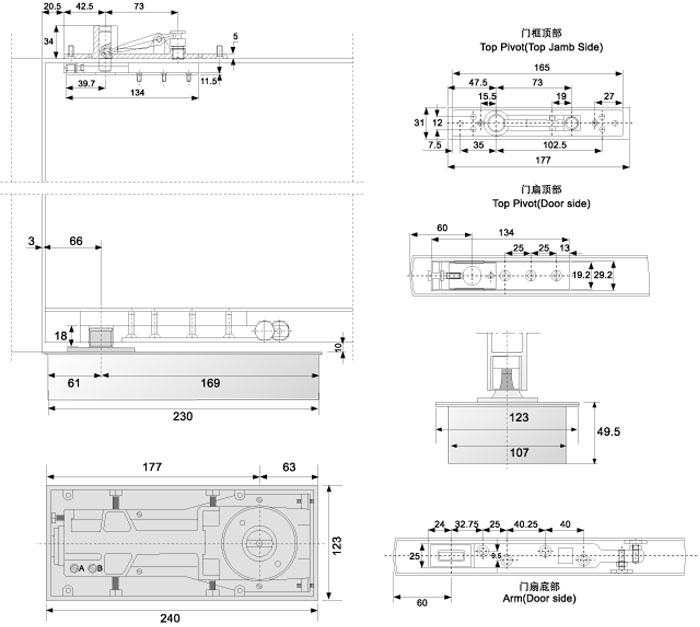

Land spring size accessories drawing product
