| EXW Price: |
The price for this item is to be negotiated. Please contact supplier for further information.
|
| Main Products: |
Handles,staircase column,staircase handrails,door handles,glass door handle,luxury door handle,door handle,floor spring,glass doors,shower handle |
| Contacts: | 林浩钿Chat |
| Mobile: | 86-579-81530000 |
| WeChat: | 15825792575；13957928489 |
| Address: | 13010 B, 1 Street, 2 F, 19 Gate, International Trade Mart (District 2). |
★Promotion★ High quality stainless steel handle, surface oxidation treatment, more durable, Never Fade!! Glass doors can be installed, wooden doors and aluminum alloy door frame can be installed, and different doors can be installed screw parts. Please leave a message when placing an order! Handle is 1 Pack, 1 door is installed inside and outside, if it is door-to-door, you need to order 2 packs!
【 product style, total length, and hole spacing can be customized. If you need to customize the length and hole spacing, please contact Customer Service for inquiry.]]

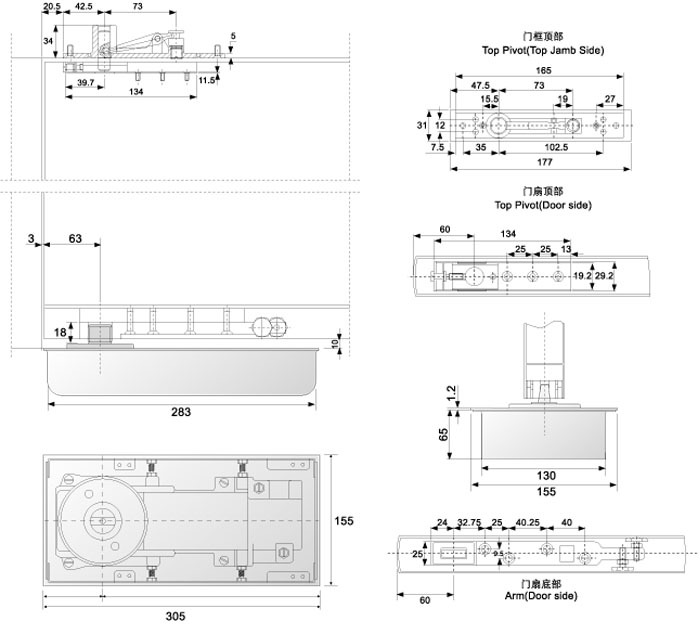

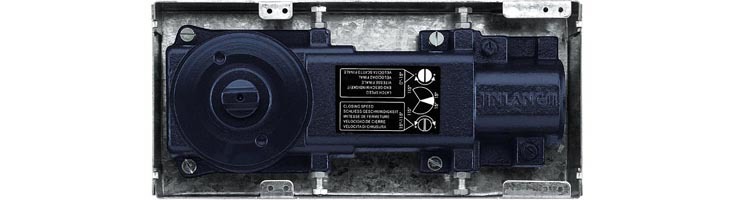

| Product Name: | S8 weighted type |
| Surface Treatment: | Brushed |
| Main material: | Cast iron |
| Maximum door width: | 1100mm |
| Maximum load bearing: | 100-180kg |
| Scope of Application: | Plastic steel door, wooden door, 8-12mm tempered glass door |
| Main functions: | The maximum opening of the door leaf is 120 degrees, and the positioning is 90 degrees in two directions. |
| Installation method: | Please refer to the following floor spring installation steps" |
| Characteristic: | Open and close 500,000 times without damage |
| · Floor spring installation steps |
| ............................................................................................................................................... |
| (A) draw A line to make the center of the ground Spring rotating shaft coincide with the rotating shaft of the door clamp. |
| ............................................................................................................................................... |
| (B) open holes on the ground according to the instructions and objects. The size of the holes should be tight with the floor spring shell and cannot be loosened. |
| ............................................................................................................................................... |
| (C) put the floor spring into the open hole and straighten it. |
| ............................................................................................................................................... |
| (D) lift the door leaf with the door clamp and insert the rotating shaft of the ground spring into the rotating shaft hole of the door leaf. |
| ............................................................................................................................................... |
| (E) adjust the screws in the three directions of the ground Spring, keep the door leaf vertical, and the upper and lower rotation axes coincide. |
| ............................................................................................................................................... |
| (F) adjust the closing speed. |
| ............................................................................................................................................... |
| (G) cover the decorative cover of ground Spring. |
|
............................................................................................................................................... |
The manufacturer's first-hand supply, the company's production cycle is short, and the quality of the goods is guaranteed.
