better quality, better service!!!
details please consult: landline: 0579-89355500
phone: 18257926263

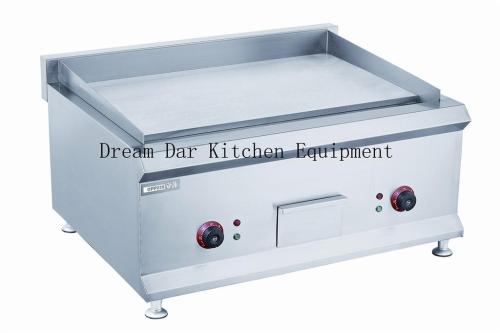

product information:

power: 6.4KW/h

voltage: 220v

product size: 600*600*350mm

package size: 690*670*410mm

volume: 0.19CBM

gross weight: 43KG

products

products use

Hotel, hotels, canteens, restaurants Hotel, restaurant, leisure food store, restaurant, cafeteria, snack stalls, station, school, supermarket, night market, wholesale markets, bazaars and walking commercial street etc.. For example, chicken wings, chicken, bacon roll, roll neck of pork, lamb, lamb, fat beef, beef rolls meat products, asparagus, nebrodensis, cabbage, Chinese cabbage, mushroom, mushroom, green pepper, vegetables, and like scallops, mussels, shrimps, prawns, squid ring and other seafood food, with rice, fried noodles, and so can use electric griddle make delicious.



shopping customers need to know

1, the device should be placed in a stable place, left and right side of the 10cm above, the back should be away from the fire (brick wall, etc.) 20cm above.

The supply voltage used by 2, equipment must be consistent with the product nameplate power supply voltage of power supply voltage fluctuations, + 10%.

3, the user needs to in the accessory device is provided with a fixed power supply line, and shall be equipped with a contact distance is more than or equal to 3 mm in all pole disconnection device and leakage protection switch, surrounding equipment allowed other debris, to facilitate the operation.

4, equipment and other potential connection terminal "" is arranged under the back of the furnace, application of not less than 2.5mm2 copper core and its adjacent and other potential terminal or conform to the safety regulations of the wire connection is reliable.

Warning: : is strictly prohibited the grounding wire connection in the tap water pipe, gas pipe and the heating pipe, etc Guandao, otherwise, it will cause accidents.

5, the boot should check the electrical components of the furnace and the connecting parts of the electrical components are loose, power connection is correct, safe grounding is reliable.

6, electrical installation and power cord damage, must be held by electrical certificate or electrical professional knowledge of professional personnel to install and replace.

7, if the appliance is placed on a support, measures should be taken to prevent the fall from the stove seat.

warning: the increase of furnace temperature work, touch a, ban the use method and the functions of the components

1 Temperature control device is arranged on the furnace surface, the temperature is 0 to 250 degrees Celsius, the temperature usually use recommended for 200-230 degrees celsius.

2 On the power, the red indicator light, when the power is supplied to the furnace, as long as the clockwise rotation of the thermostat button respectively,

The temperature required to align the red point position, the yellow indicator light, electric heating tube heating, when the temperature rise to the required temperature, the thermostat can automatically cut off the power, while the yellow indicator light. Electric heating tube. When the temperature is slightly down, the temperature control is automatically switched on, the yellow indicator light, the electric heating tube is heated, the temperature rises, so repeatedly, in order to ensure that the temperature in the range of constant temperature.

3 Required temperature setting value, indicating the lights to be heated, can be placed in the pot of grilled food processing.

4 According to the only do different food, adjust the required temperature, can make the food get ideal effect.

5 After use, please counterclockwise to limit the temperature control knob position, cut off the power supply, to ensure the safety of.

warning: do not put combustible materials (such as towels) on the stove, so as not to cause a fire accident.

cleaning and maintenance

1 in the cleaning and maintenance, should cut off the power, to prevent accidents.

2 after the completion of the work, the application of wet towels on the non corrosive cleaning agent to clean the equipment and power supply line surface, is strictly prohibited the use of water directly to the electrical box surface, so as to avoid damage to the electrical performance. Warning: you cannot use the steam cleaner cleaning.

general fault handling, failure phenomenon

1, the power supply is closed, the red indicator light is not bright;

2, power switch fuse fuse;

3, damage indicator

solution:

1, put on the right fuse;

2, the replacement of indicator light is red, yellow indicator light does not shine; temperature griddle does not rise;

thermostat is damaged;

Replace the temperature controller yellow indicator light, griddle temperature does not rise;

1, electric connection loose; 2, electric burn;

The 1 fastening electric wiring; 2 replacement of electric heating tube

Yellow light does not extinguish, griddle temperature does not rise; the thermostat failure.

1, the replacement thermostat indicator light does not shine, the oil temperature is normal. Light burned. Change indicator
