Product Description:

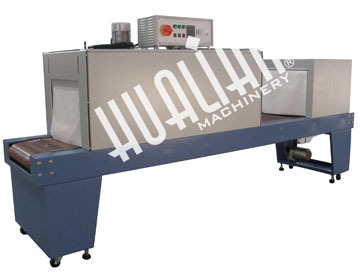

BS-60 series Heat Shrinkable packaging machine is specially designed for large heavy objects PE film shrink packaging design. Large shrink packaging can also be completely shrunk in a short period of time. After packaging, the appearance is neat, compact and uninterrupted, which is convenient for stacking, ensuring the quality of products and the need for long-distance transportation. It is suitable PE, PVC, POF and other shrink packaging materials.
Technical characteristics:
1, double high-power air transport motor to ensure large circulating air volume and uniform temperature in the furnace chamber.
2, transmission adopts original high-quality frequency converter control, stepless speed regulation.
3, elevating cushion, fast heating and long service life.
4, planetary reducer and high-power motor ensure smooth delivery and no jitter.
5, Super cooling fan, the product is quickly cooled and fixed after heat shrinkage.
6, both ends of the furnace mouth are equipped with heat insulation baffle and guard plate to prevent heat loss.
7, original high temperature resistance thermal insulated curtain, greatly reducing heat energy loss.
8, with a variety of common and dense shaft types, packaging small items, products will not shift.
9, the bottom is equipped with casters to move the machine freely, with bottom angle bolts, which can be used together with production lines of different heights.
10, specially designed air duct system to ensure the appearance effect after packaging.
11, the internal furnace cavity plate adopts adjustable air hole, and the local air volume can be adjusted according to the shrinkage requirements..
12, conveyor belt can be designed as roller type, Teflon net or stainless steel conveying Net according to customer requirements.
Scope of Application:
BS-60 series heat shrink packaging machine is suitable for cans, glass bottles, beer, mineral water and other large quantities of automatic shrink packaging items, and can also be used in wood, steel, ceramics, household appliances, computers and other industries.
Technical parameters:
|
|
BS-6040L
|
BS-6050L
|
|
power supply voltage (V/Hz)
|
380/50 (three-phase) or 220/60 (three-phase)
|
|
Power (kw)
|
22
|
|
Load (kg)
|
40
|
|
Linear velocity (m/ minutes)
|
12
|
|
Maximum packing size(L×W×H)(mm)
|
1500 × 450 × 350
|
1500 × 450 × 450
|
|
Feed working level height ( MM)
|
850±50
|
|
Furnace cavity size(L×W×H)(mm)
|
1800 × 600 × 400
|
1800 × 600 × 500
|
|
Applicable film
|
PE, PVC, POF
|
|
Dimensions(L×W×H)(mm)
|
4000 × 900 × 1700
|
4000 × 900 × 1800
|
|
Net Weight (kg)
|
560
|
580
|
|
