Product information:

Product name: table luxury gas flat pickpocket furnace

Product size: 600*620*520mm

Package size: 670*690*590mm

Gas type: LPG

Air consumption of French plate: 0.22 m3 /h

Volume: 0.27 CBM

Gross weight: 49KG

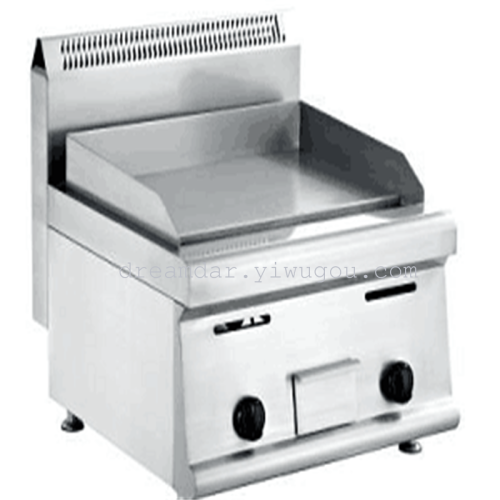

Product display

Products use

Hotel, hotel, canteen, western restaurantHotels, restaurants, casual food stores, restaurants, canteens, snack stalls, stations, schools, supermarkets, night markets, wholesale markets, markets and pedestrian malls. Such as chicken wings, chicken, bacon rolls, pork neck meat, lamb, lamb volumes, beef fat, fat and other meat products, asparagus, lark mushroom, cabbage, Chinese cabbage, mushroom, chicken leg mushroom, peppers and other vegetables, while others, such as scallops, green bay mouth, PND tail-on shrimp, prawn, squid and other seafood food, with rice, Fried noodles, etc all can use electric griddles make delicious.



Customer shopping needs to know

1. The equipment should be placed in a stable place, with the left and right sides of the non-combustible above 10cm and the back side of the non-combustible (brick wall, etc.) above 20cm.

2. The power supply voltage used by the equipment must be consistent with the power supply voltage obtained from the product nameplate. The power supply voltage fluctuation is + / - 10%.

3. The user shall set a fixed power supply line in the equipment accessories, and shall be equipped with a full pole disconnection device and leakage protection switch with a contact opening distance of 3mm or more. There shall be no sundries on the other side around the equipment for easy operation.

4. Equipotential connection terminal\"   \"Located at the bottom of the back of the furnace, copper cores of not less than 2.5mm2 shall be used to connect reliably with adjacent equipotential terminals or wires conforming to safety regulations.

Warning:It is strictly forbidden to connect the ground lead to the official road such as the water pipe, gas pipe and warm air pipe, otherwise it will cause a safety accident!

5. Before starting up, check whether the connection parts of the electric components of the pickpocket furnace are loose, whether the power connection is correct, and whether the safe grounding is reliable.

6. The electrical installation and power cord damage shall be installed and replaced by a professional with electrician's certificate or relevant electrical professional knowledge.

7. If the appliance is placed on a support, measures should be taken to prevent the cooker from slipping off the support.

Warning:Do not touch the furnace body temperature when working A, Usage and component functions

1. The temperature controller is located at the surface of the furnace with a temperature of 0 to 250 degrees Celsius. The recommended temperature for normal use is 200 to 230 degrees Celsius.

2. Close the power supply and the red indicator light is on. At this time, the power supply has been supplied to the furnace. Only turn the thermostat button clockwise separately.

Aim the required temperature at the red point, the yellow indicator is on, and the electric heat pipe is heated. When the temperature rises to the required temperature, the thermostat can automatically cut off the power, and the yellow indicator is off. The electric heating tube stops heating. When the temperature drops slightly, the thermostat will automatically switch on the power supply, the yellow indicator light will be on, the electric heat pipe will be heated again, and the temperature will rise, so the cycle will be repeated again and again to ensure the temperature will be kept at a constant temperature within the set range.

3. After setting the required temperature, when the heating indicator is off, the food can be processed on the griddle.

4. According to only make different food, adjust the required temperature, can make the food to get the ideal effect.

5. After use, please turn the temperature control knob counterclockwise to the limit position and cut off the power supply to ensure safety.

Warning:Do not put combustible materials (such as towels) on the stove surface to avoid fire accident.

Cleaning and maintenance

1. During cleaning and maintenance, power should be cut off to prevent accidents.

2. After daily work, wet towel with non-corrosive detergent diluent shall be applied to clean the equipment and power line surface. It is forbidden to directly flush the electrical box surface with water to avoid damaging the electrical performance. Warning: do not use steam cleaner for cleaning.

General troubleshooting,malfunction

1. Turn on the power, the red indicator is not on;

2, Power switch fuse Fusing;

3, Indicator light is damaged

Solution:

1. Replace the appropriate fuse;

2. Replace the indicator light Red light on, yellow light on The light not bright; The temperature of the pickpocket does not rise;

Thermostat damage;

Change the thermostat The yellow indicator light is on and the temperature of the pickpocket furnace does not rise.

1. Loose connection of electric heat pipe; 2, Electric heat pipe burnt out;

1. Tighten the connection of electric heat pipe; 2. Replace the electric heat pipe

 The yellow light does not go out, the temperature of the pickpocket does not rise; The thermostat failed.

1. Replace the thermostat The indicator is not on, the oil temperature control is normal. Indicator light is burnt out. Replace the light
