Yiwu Tianwei Electromechanical 12yr.
Contacts:Mr.JamesChat
Mobile:86-18967986112
E-mail:2924549522@qq.com

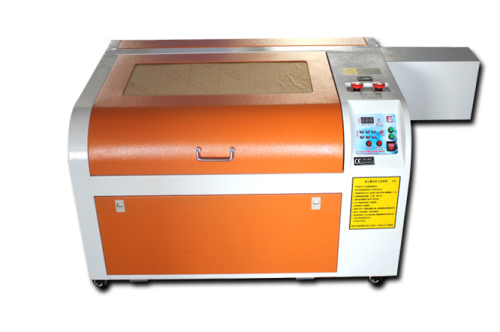

| Processing Area | 60x40cm |
| Laser tube power | 60W |
| Carving speed | 0-3000mm/min |
| Maximum Carving Depth | 3.5mm |
| minimum form character | Chinese characters 2×2mm, letters 1×1mm |
| Resolution | ≤ 4000dpi |
| Working Voltage | AC220V±10%、50HZ |
| Positioning accuracy | ＜0.05mm |
| number of wires | 60线 |
| Power | Less than 1250 Watts |
| Working temperature | 0C~45C |
| Work humidity | 5% to 95% (without condensation) |
| Supports graphic formats |
BMP, HPGL(PLT), JPEG, GIF, TIFF, PCS, TGA, CDR, DWG, DXF. |
| Machine Size | 110x98x120cm |
| Weight | 220KG |
Machine Configuration:
1. A switch power supply that provides a stable DC voltage to the motherboard
2. Supports USB port data transmission line
3. The motor drive circuit system is constructed using professional ICs from a US company.
4. The electrical system uses the company's high-temperature and long-life electrolytic capacitors.
5. Realizing a fully digital controller with slope function
6. Large Chinese LCD Display Module Combination
Functional Features
◆ Rapid Curve Cutting Function: Any curve can be rapidly and continuously cut, with the laser head's movement process resembling the beautiful arc traced by a top-tier racing car.
◆ Comprehensive support for CAD, CORELDRAW, GERBER, TENGA, etc., friendly human-computer interface, close to the needs of the industry site.
◆ Multi-document functionality: The TW series of equipment can store up to 128 job files, allowing users to select files directly on the engraving machine without the need for a computer, making it easy to achieve batch production of 128 different products.
The all-optical isolator system is designed with high-speed differential input and output circuits, ensuring that signals do not distort over long distances, with strong anti-interference capabilities. The system achieves 12-way operational status output and 16-way status input, making it easy to connect with user production sites.
