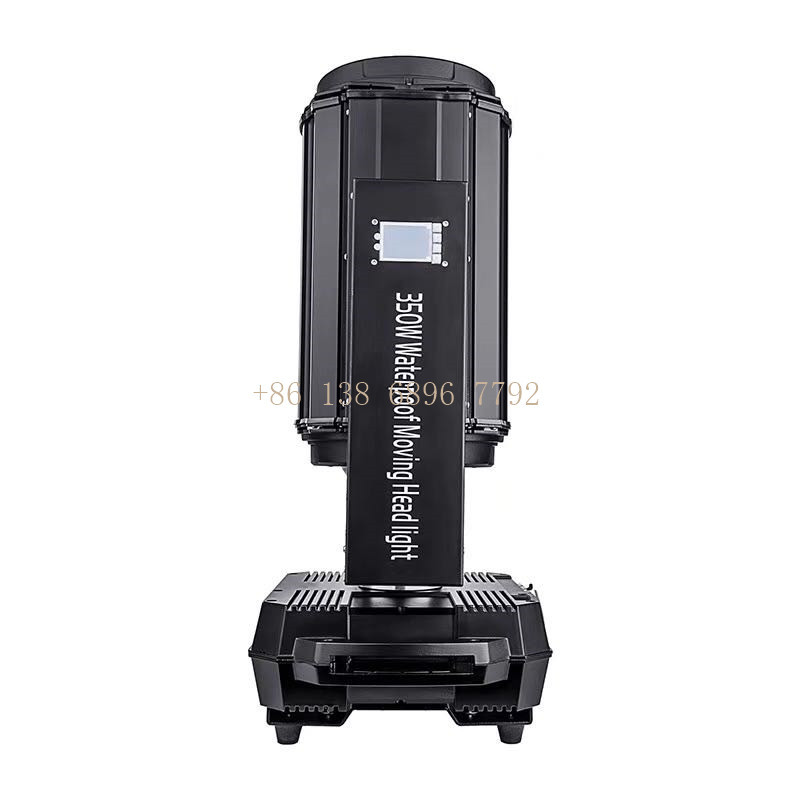

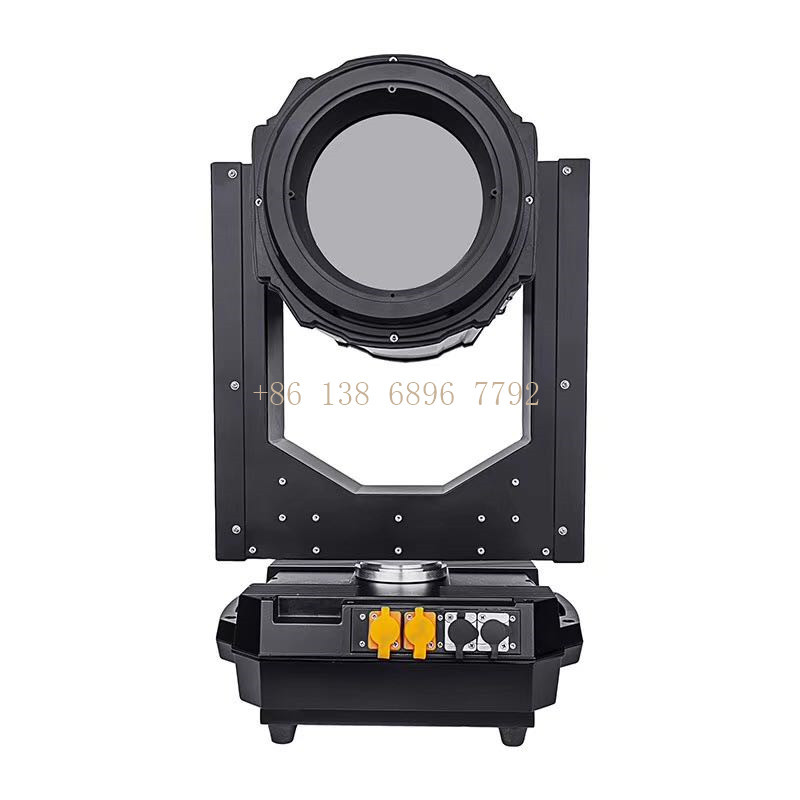

260W/350W computer head-turning rainproof beam light
Technical parameters
Luminaire System: 9R 260W / 17R 350W (Philips and Ushio optional)
Luminous life: 1500-2000 hours
Color System: Features high-temperature resistant imported color filters, 14 colors plus white light, capable of half-tone printing, and rainbow effects.
Pattern System: 17 Fixed Patterns + White Light
Focusing System: Dual-strength step motor, electronic focusing
Atomization system: The high-temperature-resistant atomization film enables this lamp to have a staining effect.
Point bubble function: Remote DMX controller controls point bubble and extinguishing bubble, and simultaneously can display board setting on/off light bubble function
Linear dimming curve: 0%-100% linear dimming

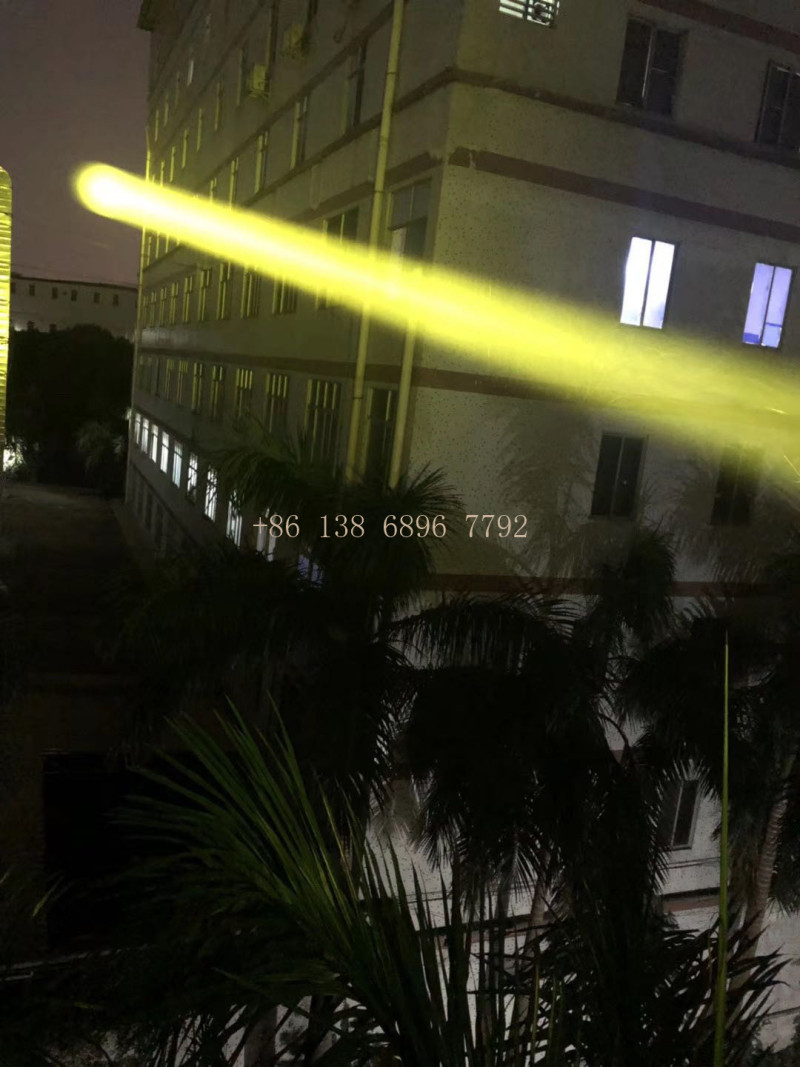

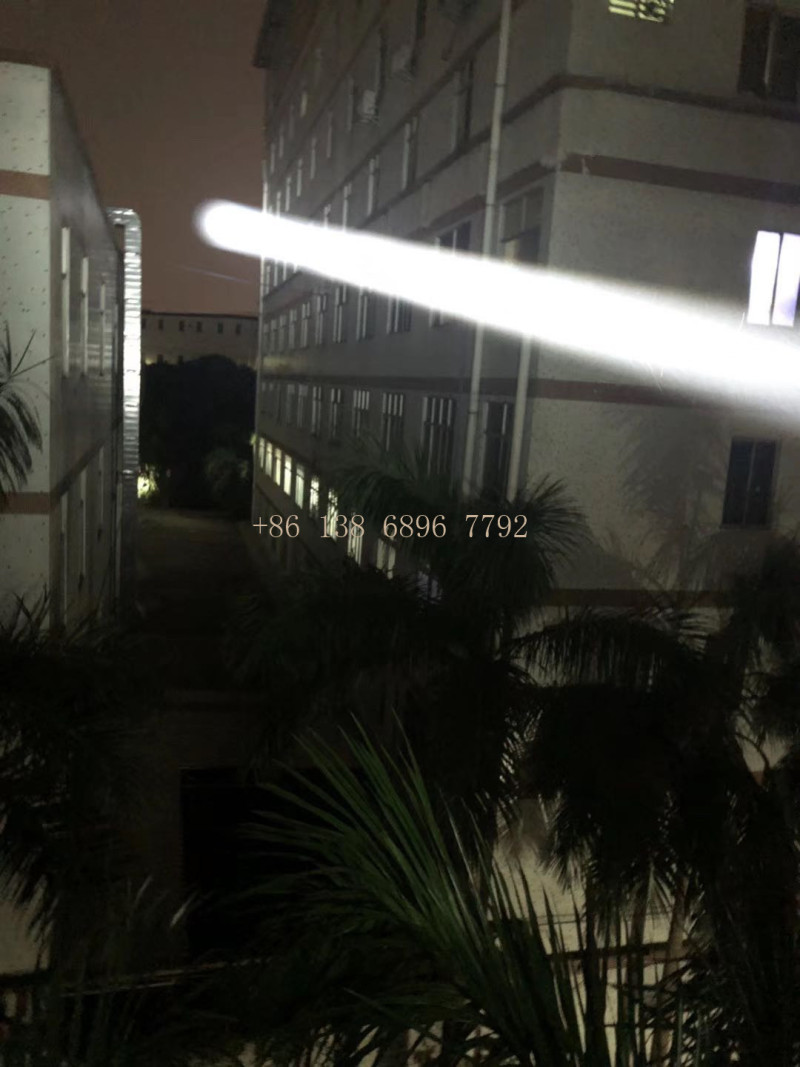

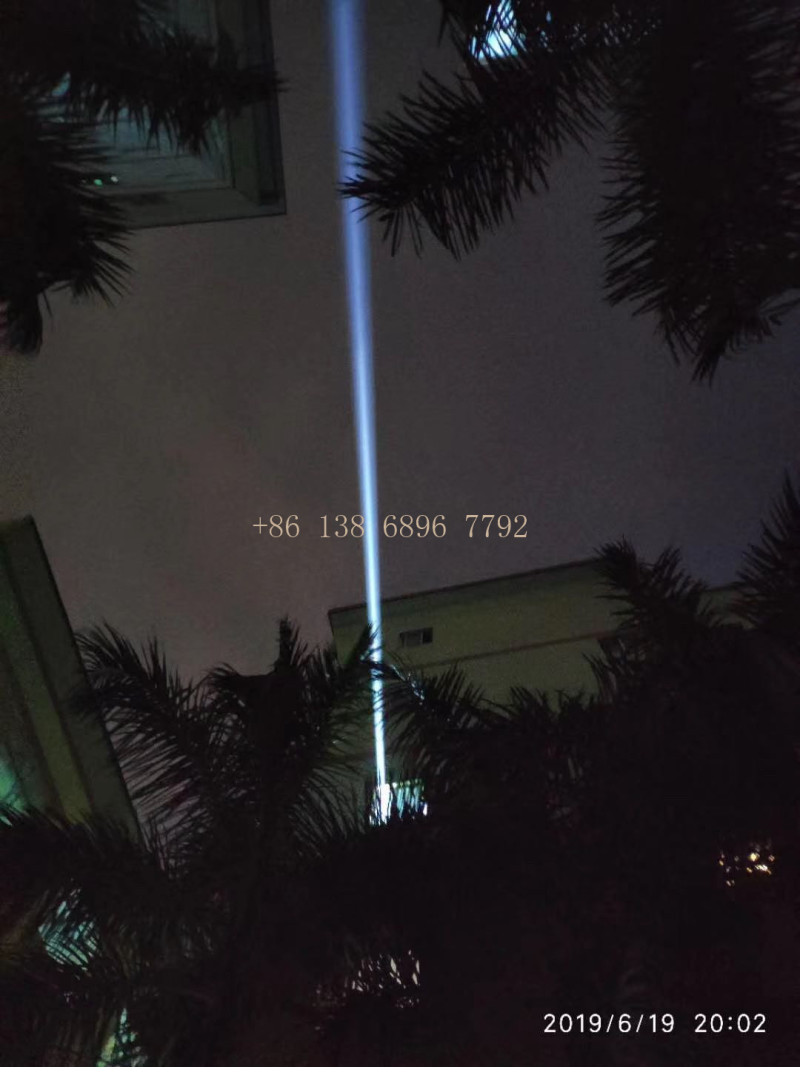

Light beam: The size of the light beam can be adjusted.
Prism System: Available in 8-prism and 16-prism options, rotatable, with macro functions, can project 8 or 16 beams of light (customizable to rainbow honeycomb prism effect).
Display: High-end touch LCD liquid crystal display
Beam angle: 2°
Beam diameter 136/155mm
Horizontal/Vertical: The horizontal and vertical movements are driven by custom-made three-phase motors. The horizontal movement can rotate 540° and the vertical movement can rotate 210°. The speed is fast and smooth. The lighting equipment is equipped with an intelligent photoelectric reset correction system, which can automatically return to its original position if an accidental misoperation occurs.
Heat dissipation system: The entire body is designed with full cast aluminum material, which has very fast heat dissipation speed. It is equipped with patented devices for dehumidification and heat dissipation, and has the functions of water resistance and dustproof.
Power Supply Module Design
Adopting well-known Chinese brand power supplies and imported lighting controllers, the lighting equipment's entire power system is more stable, and the functional operation is more smooth.
Channel DMX: 16-channel and 20-channel, you can set the channel mode on the display board, the factory standard setting is 16 channels
Built-in programs: The device comes with a variety of effects programs, allowing for a slow left-right swing of a single beam of white light, a slow left-right swing of a single beam with color change, and a slow left-right swing of multiple beams with color change.
Waterproof rating: IP 65

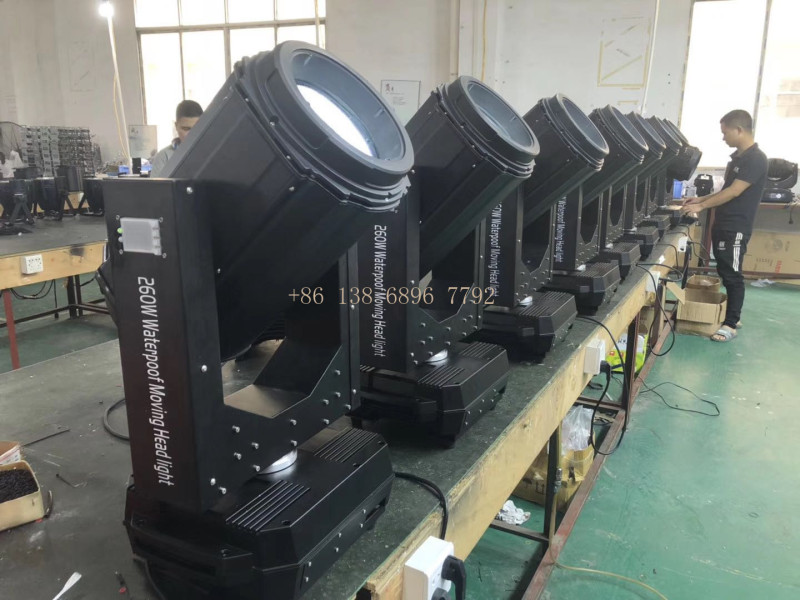

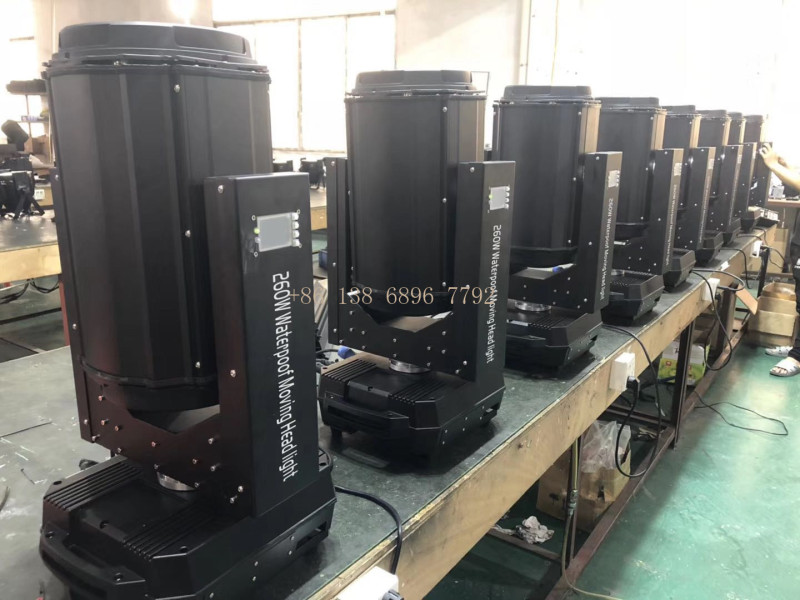

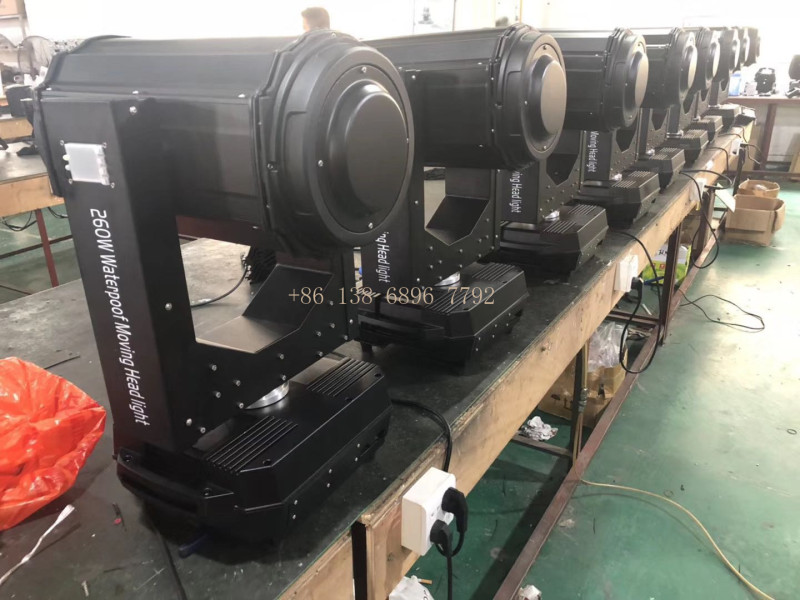

260W Waterproof Beam Light Dimensions: 340*340*600mm Weight: 19kg

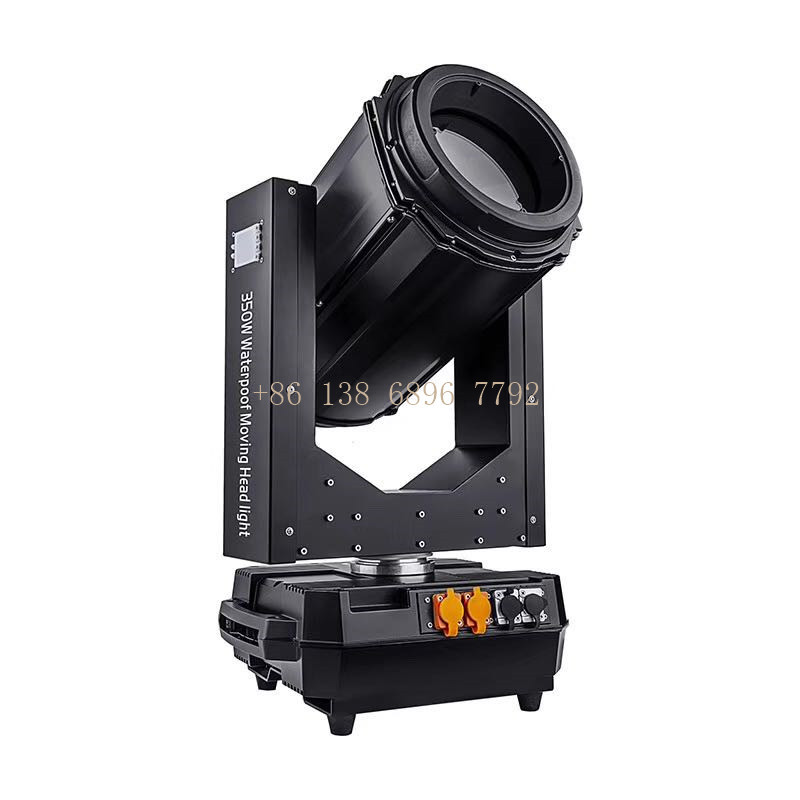

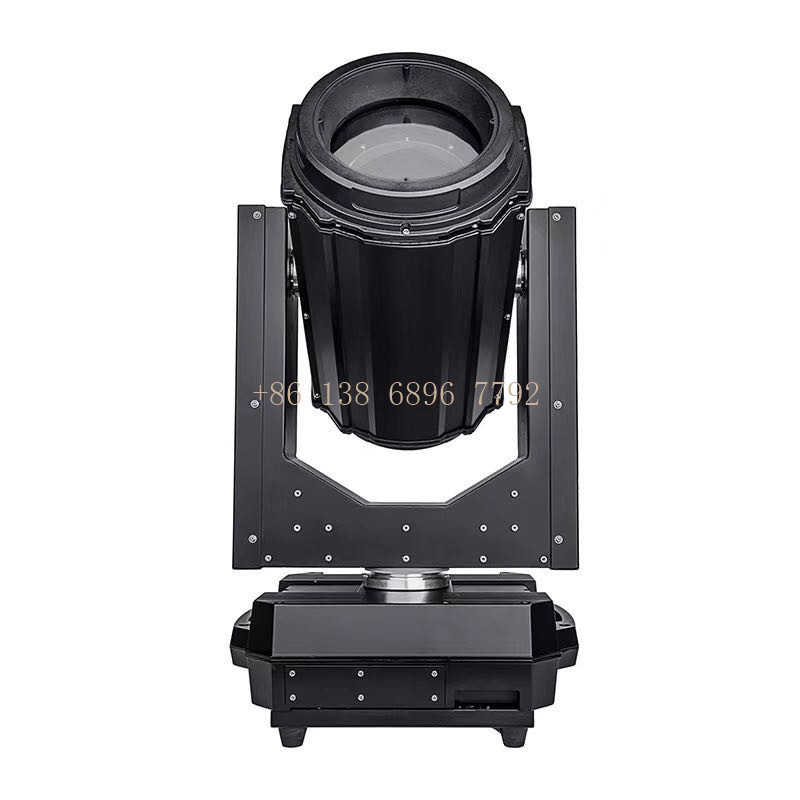

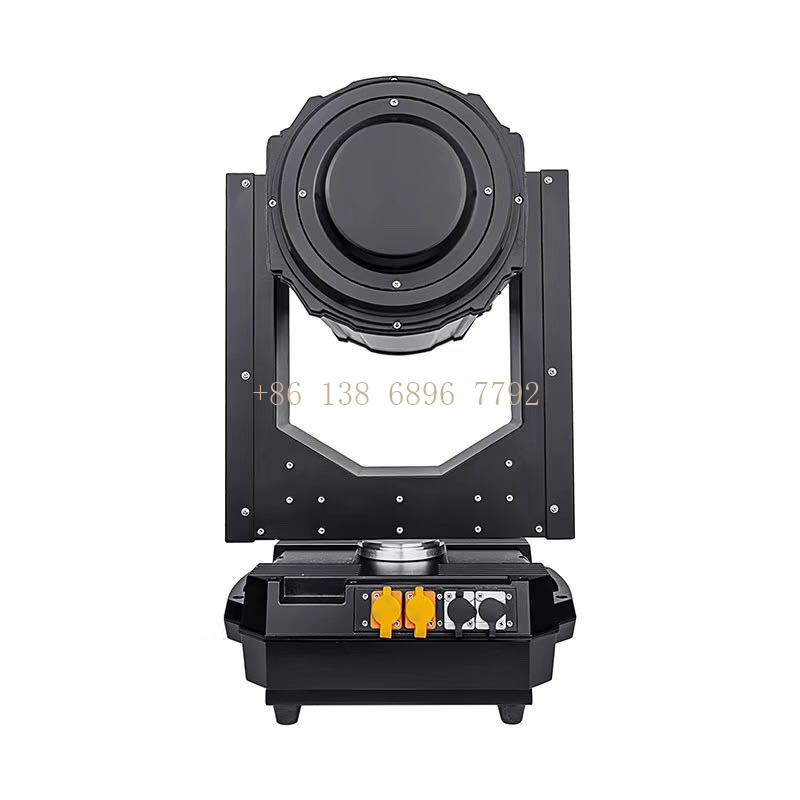

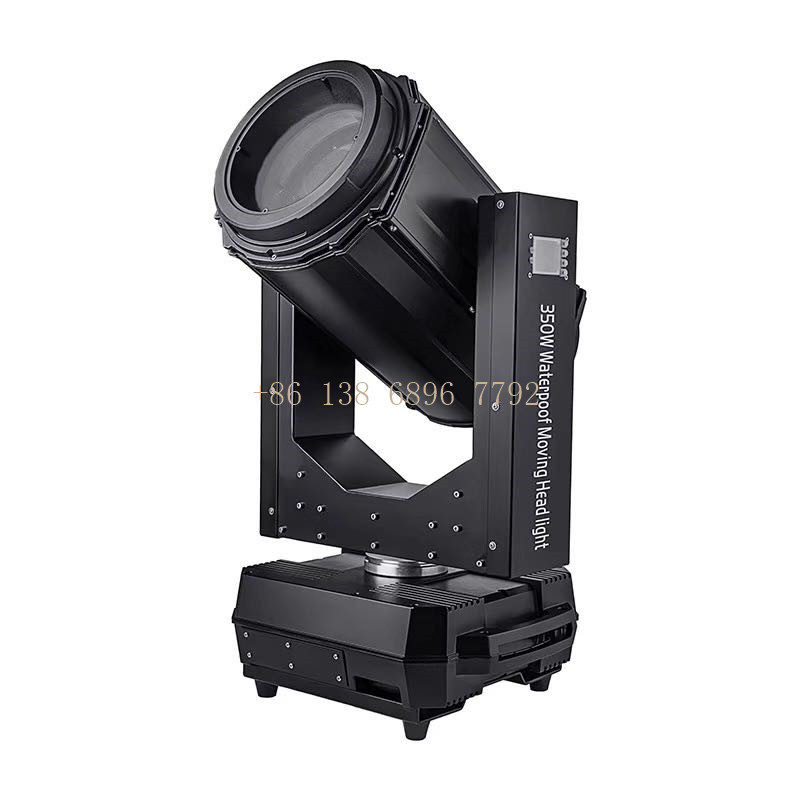

350W Waterproof Beam Light Dimensions: 340*340*650mm Weight: 21kg
Suitable locations: outdoor performance rental, engineering lighting, resort, bridge, fountain, theme park, rooftop, and other venues.
