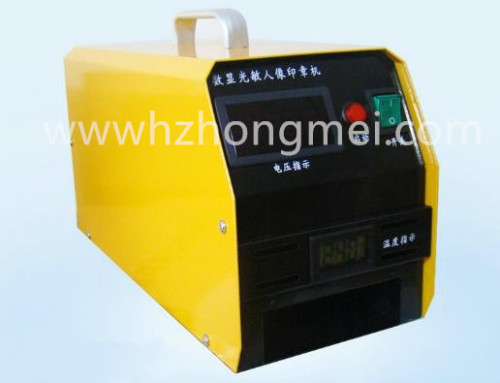

The intelligent automatic photosensitive portrait seal machine mainly includes:
16 large-capacity 450V1000UF electrolytic capacitors, built-in 2 exposure tubes, exposure tube length: 15CM, LED accurate digital display!
Multiple knowledge security protection:
(1) Overheat protection: The maximum temperature resistance of the capacitor is 106 degrees Celsius, the service life is long, and it can work for a long time. It is equipped with a cooling fan to reduce the internal temperature of the machine.
(2) Overvoltage protection: When the capacitor is fully charged, the overvoltage protection will enter the protection mode, there will be a small current into the floating charge phase, and the current will be automatically adjusted according to the magnitude of the voltage. The life of the protective capacitor.
(3) One-button start: Simple and quick operation, one-touch start exposure button. There are two exposure start modes, automatic mode and continuous mode. More convenient for all types of customer care,
(4) Capacitor explosion-proof: It adopts advanced capacitor voltage limiting device to prevent bursting caused by overload charging of capacitor, effectively reducing the failure rate of 99.9%, making the working performance more stable and better.
Photosensitive seal operation process:
(1) The prepared sample is printed on sulfuric acid paper using a black and white laser printer.
(2) Cover the transparent exposure film according to the sample specifications, the size of which is based on the full coverage of the sample.
(3) The order and orientation between the print sample, the exposure film and the photosensitive stamp pad are: the print sample is on the uppermost layer, the print side is on the lower side, the middle layer is the exposure film, and the third layer is the photosensitive pad. The three are in smooth and close contact in sequence, and gap-type pleats are strictly prohibited in the middle, and the fixture is pressed. If the clamp is pressed up, please put 2 business cards under the photosensitive pad, so the effect will be better.
Put the fixture into the photosensitive machine.
(4) Turn on the power, turn on the main power switch, then turn on the charging switch, and the photosensitive machine starts charging.
(5) When the charging indicator of the photosensitive machine reaches the exposure voltage required for the chapter pad, turn off the power and press the trigger button to complete the exposure.
(6) Take the exposure box out of the machine, open the exposure box, take out the exposed chapter pad, and remove the sulfuric acid paper and the exposed film.
(7) Place the exposed pad in the corresponding chapter case.
(8) Inject the scalar ink according to the seal specification, and the ink can be used after being absorbed and distributed evenly.
