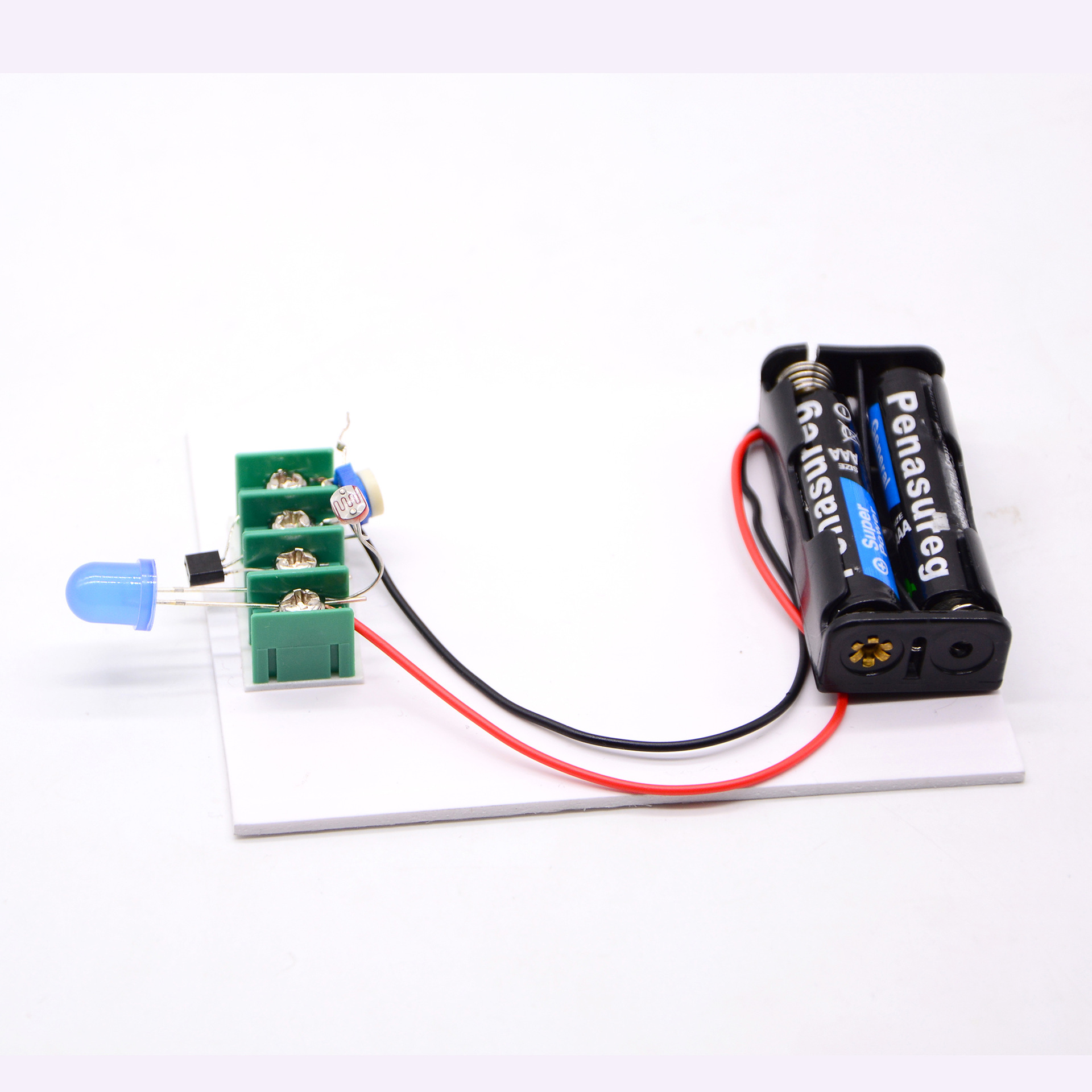

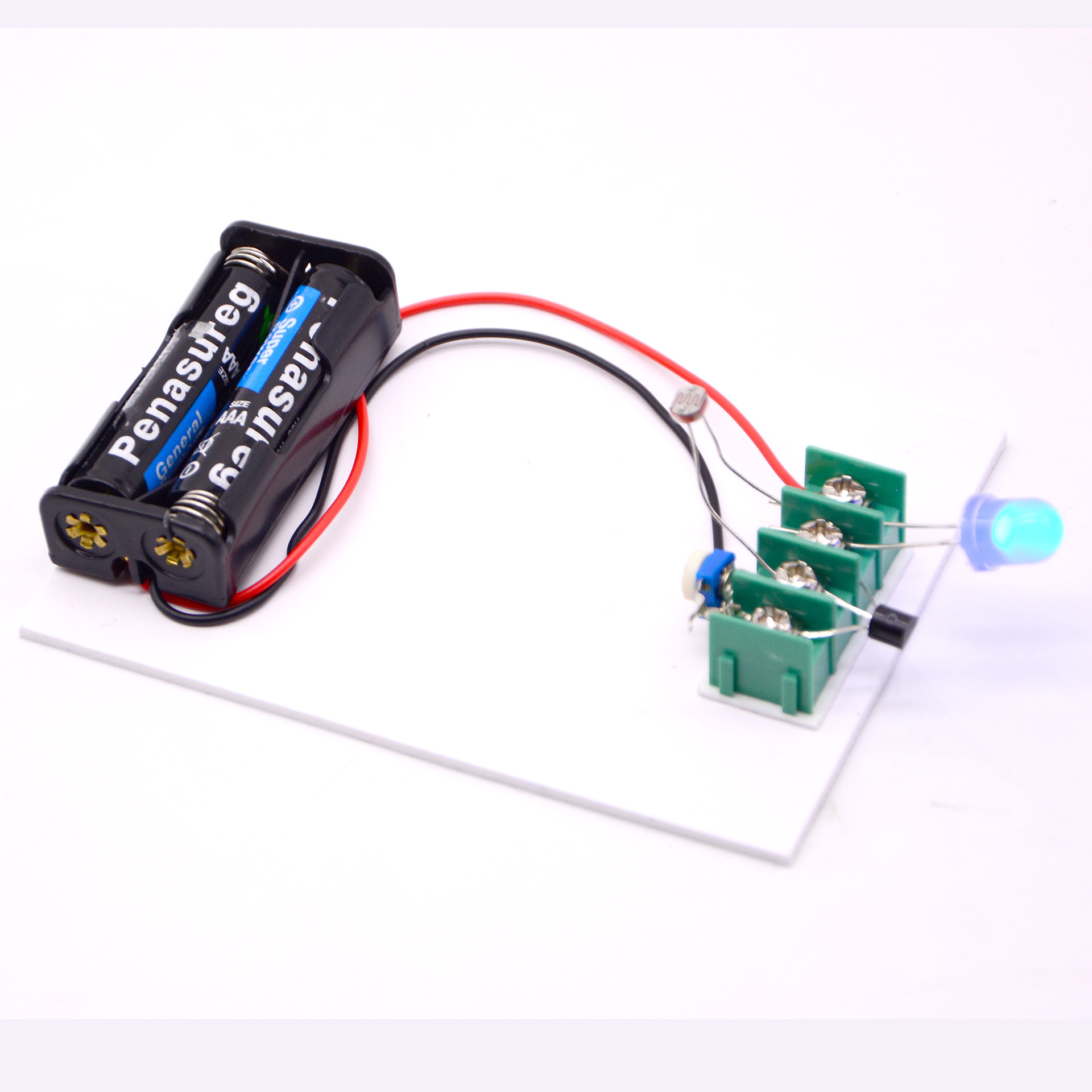

Product Name: KX2024 Photocontrolled Automatic Light
Product code: KX2024 photocontrolled automatic light
Dimensions: Approx. Length 100mm * Width 75mm * Height 15mm
Weight: About 80g

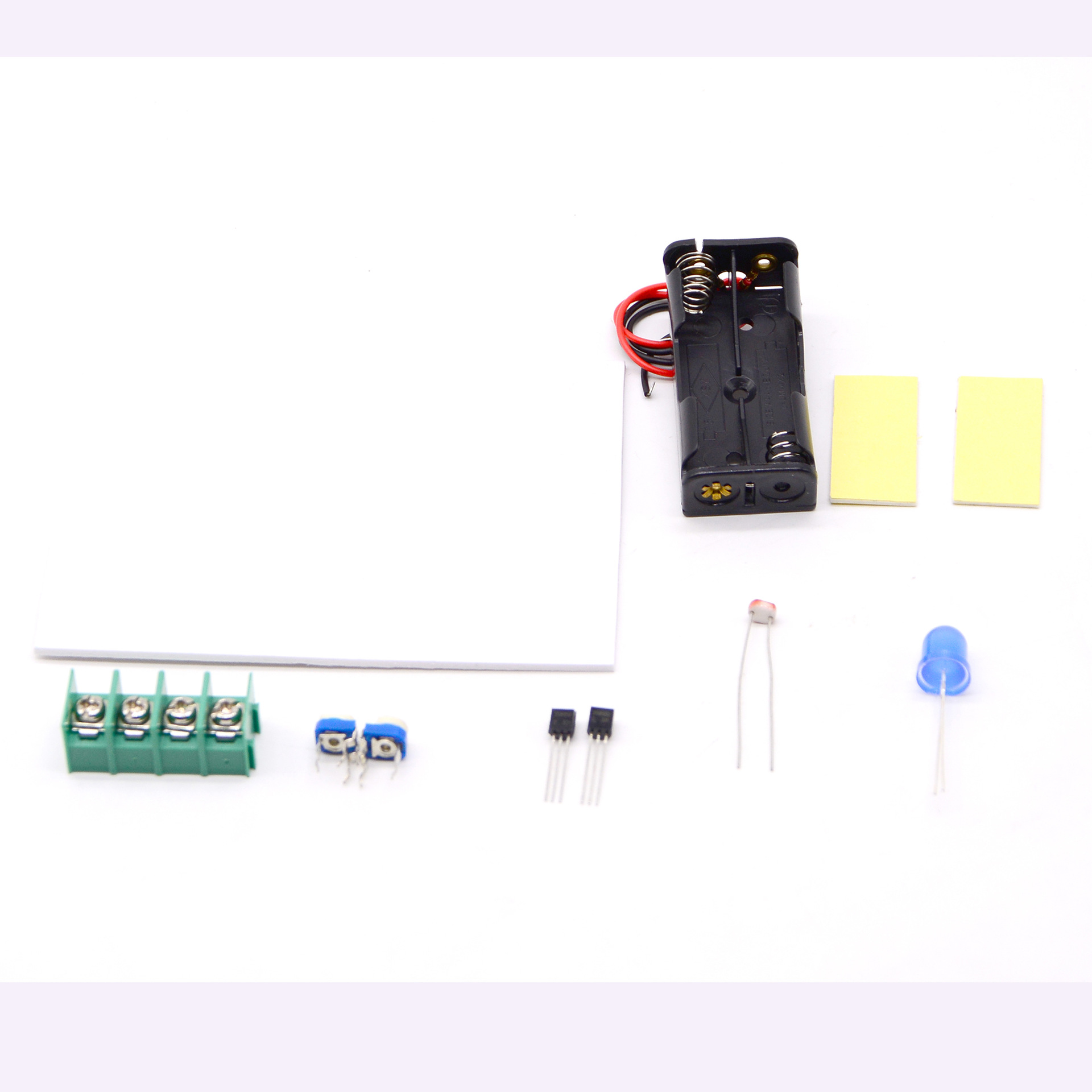

Material: Plastic + Electronic Components
Color: Randomly matched with organic materials
Is the device powered by batteries: Yes
Packing: 500 pcs
Box Specification: 600*450*550mm

Preface:

In today's society, where children's education is increasingly valued, scientific enlightenment education has gradually become an important topic in the field of education, which is pursued and explored. More and more teachers and parents are beginning to pay attention to cultivating children's scientific literacy from an early age, so that children can develop good personalities and behavioral habits from the beginning. Parent-child interactive crafts can improve the quality of parent-child companionship, improve the relationship between parents and children, and we spend time with our children, without mobile phones, iPads, or televisions, only joy, interaction, and communication. It can cultivate the ability of children to solve problems by themselves. When children encounter problems, they should first see and experience the solution themselves, because parents and teachers solve problems in the process of doing crafts. It can develop children's imagination. In children's world, cars can fly in the sky, and the sun can be green. Playing with DIY crafts can cultivate children's practical ability by using different tools, which fully exercises children's little hands. Brushes, paints, scissors, hot-melt guns, glue"Children are brave to try any tools and to some extent, they are developing different skills. Improving children's self-confidence in the process of handcrafts, we try everything possible together, experience many failures, but we always succeed, which to some extent enhances their self-confidence. Cultivating children's concentration when children explore various tools and handcrafts, they are very focused, and if there is no external disturbance, they can continue to explore.

Experimental Objectives: 1. Understand and recognize photoconductive resistors; 2. Recognize the circuit symbols of components; 3. Understand the differences in the use of PNP and NPN transistors; 4. Understand and recognize the circuit principle diagrams.

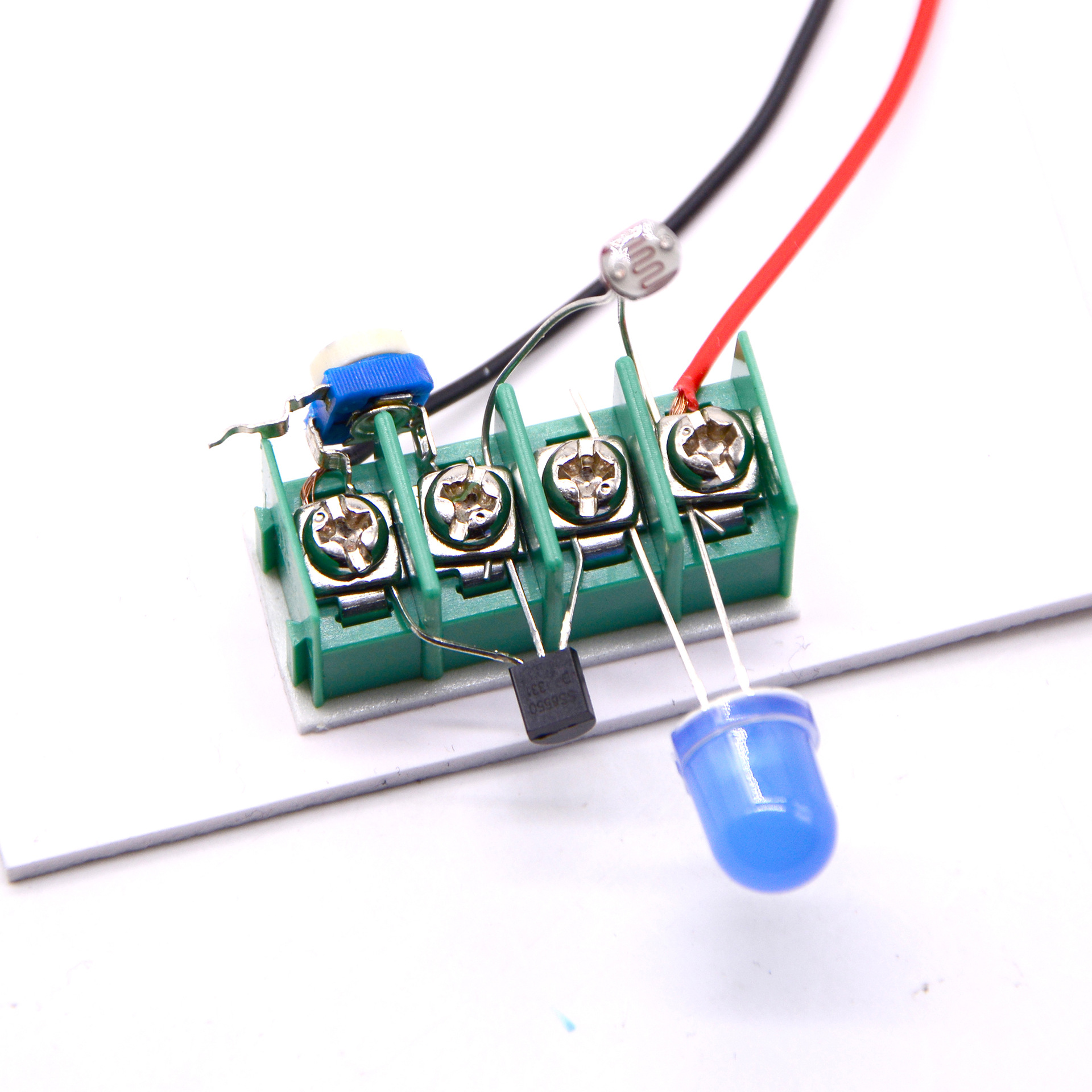

Principle Application: 1. Light-activated illumination: When light strikes the photoresistor, the resistance of the photoresistor decreases, causing an increase in the circuit's current. When the voltage exceeds 0.7 volts, the NPN transistor 8050 conducts, illuminating the LED, and when there is no light on the photoresistor, the resistance increases, causing the current to decrease. When the voltage drops below 0.7 volts, the transistor cuts off, and the LED goes out.
2. Auto-Illumination without Light: Replace the transistor in Step 1 with a PNP transistor 8550. When light is shone on the photoresistor, the resistance of the photoresistor decreases, causing an increase in current in the circuit. When the voltage exceeds 0.7V, the transistor turns off, and the LED goes out. When no light shines on the photoresistor, the resistance of the photoresistor increases, causing a decrease in current in the circuit. When the voltage is below 0.7V, the transistor turns on, and the LED lights up. The potentiometer's role is to divide the voltage. By adjusting the potentiometer, the voltage can be changed, allowing the LED to light up at different light intensity levels.

Experimental Cognition: When light is shone on a photoresistor, the resistance of the photoresistor decreases, and the current in the circuit increases.

Knowledge Expansion: Photoresistors: Made of semiconductor materials, their resistance changes with the environment's light intensity. When the light intensity increases, the resistance decreases, and when the light intensity decreases, the resistance increases. They are commonly used in automatic control of light detection. Automatic Illumination with Light: Can be used for alarm indication, by replacing the LED with a buzzer, it can be used as a photocontrolled alarm. Automatic Illumination without Light: Can be used as an automatic street lamp, which turns on when it gets dark.

Knowledge Extension: Crystal Triode: Base (b), Collector (c), Emitter (e)

Safety Warning:

All the accessories in this product are specially designed for student experiments. Please use them under the supervision of teachers and parents to ensure safety! Do not consume any of the products! They are not suitable for children under three years of age. Do not approach fire sources. Before assembling any batteries, please check if the circuit is clear, all parts of the circuit are complete, and all contacts are good. The + on the battery is the positive pole, and - is the negative pole. Be careful during the assembly process, and if glue is used, do not get it in your eyes or on your skin.
