fingerprint lock glass door graffiti smart glass door lock office password lock pass lock lock single and double open

EXW Price: Min. order:

CN¥ 680.0
≥ 1 set

CN¥ 480.0
≥ 40 set

CN¥ 380.0
≥ 80 set

1 set

specifications

Specifications

large screen black double hook-default frameless double door, please note others	CN¥ 0.0
large screen silver double hook-default frameless double door, please note others	CN¥ 0.0
all-way lock black-default frameless double door, please note others	CN¥ 0.0
straight tongue style is available, please note the specifications	CN¥ 0.0
oem custom background customization panel please contact sales staff	CN¥ 0.0

Send Inquiry Chat with supplier

YIWU SHUANGLI HARDWARE COMPANY 15yr.

Contacts:lemen Chat

Mobile:86-13506587772

E-mail:2859664980@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

Using imported ST401 chip

High-end mirror finish, TFT large color screen, self-checking motor with clutch hook lock

No need for holes/wiring/floor sockets

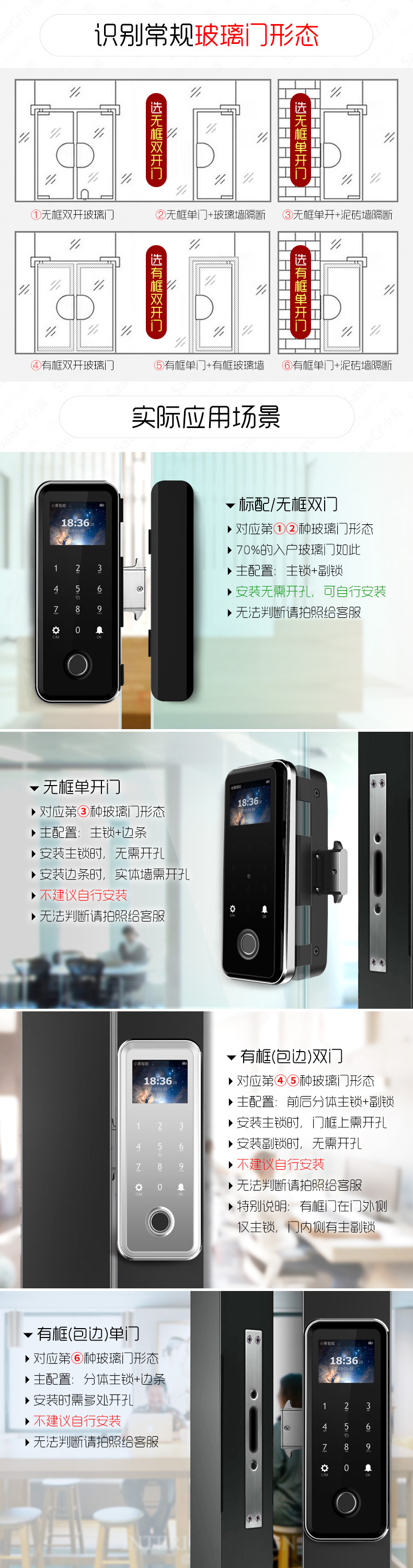

Supported glass doors: double-opening/single-opening, framed/frame-less, sliding/gliding doors.

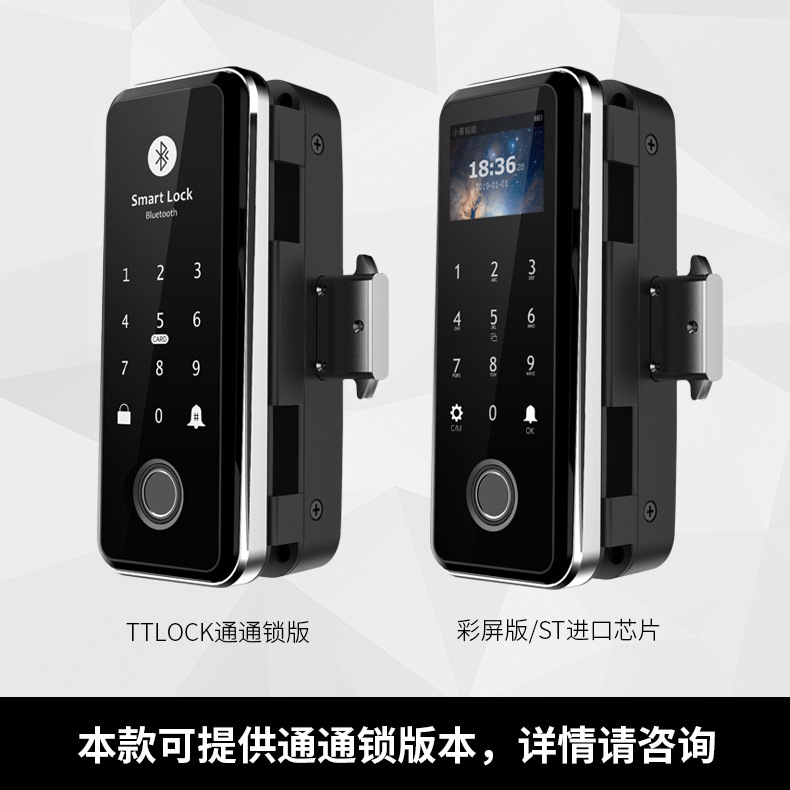

undefined

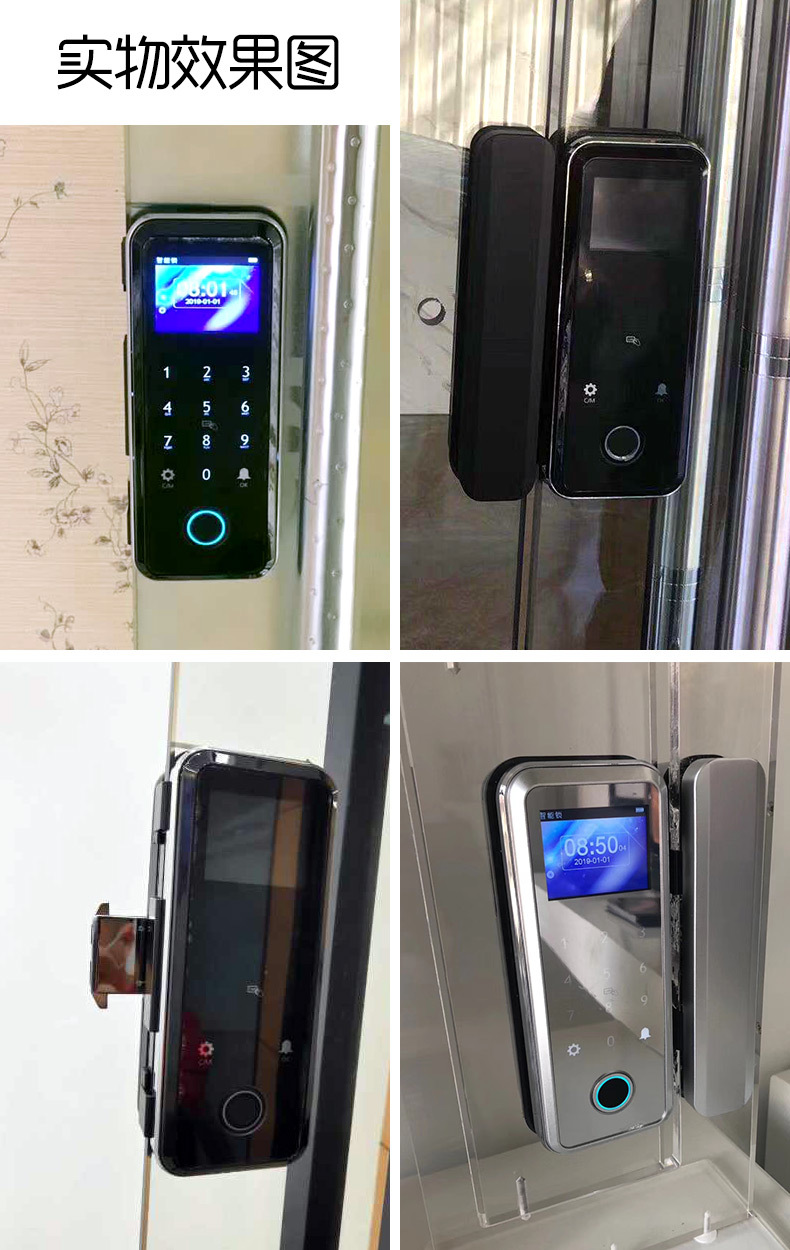

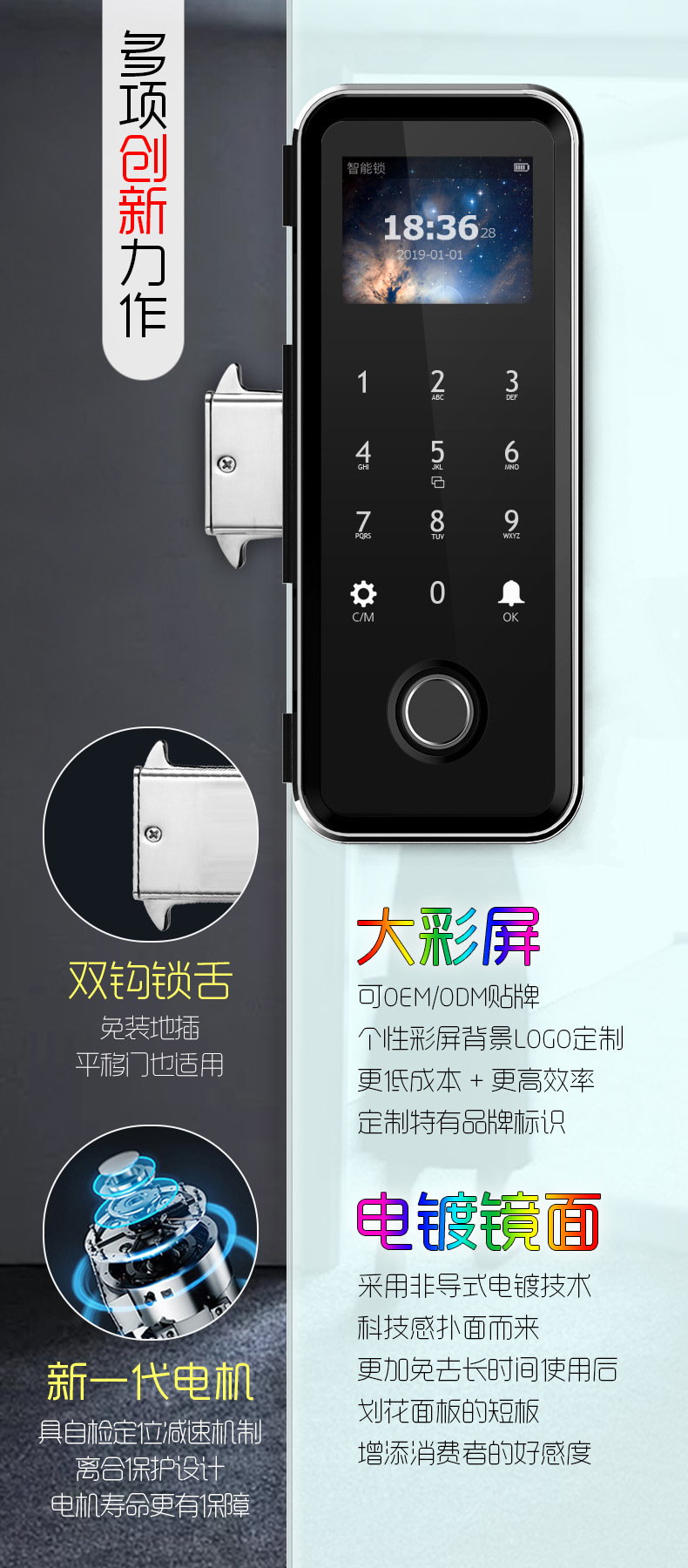

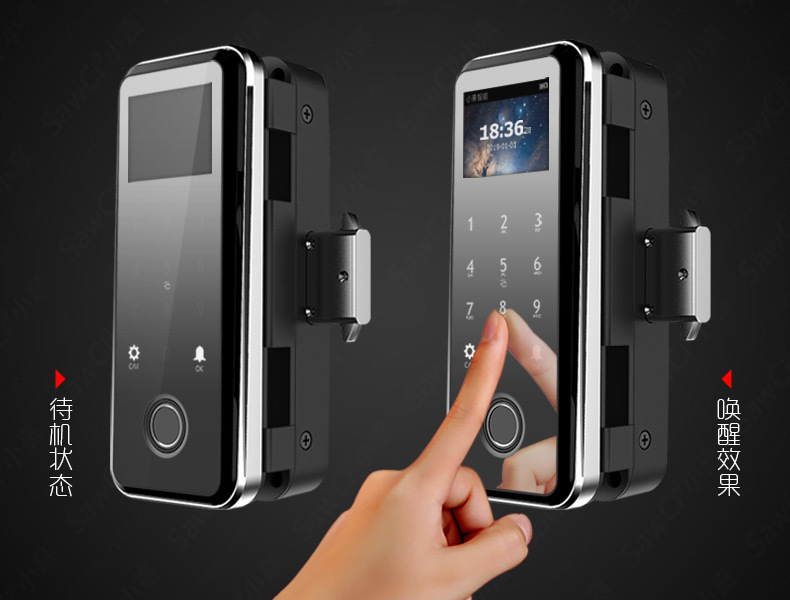

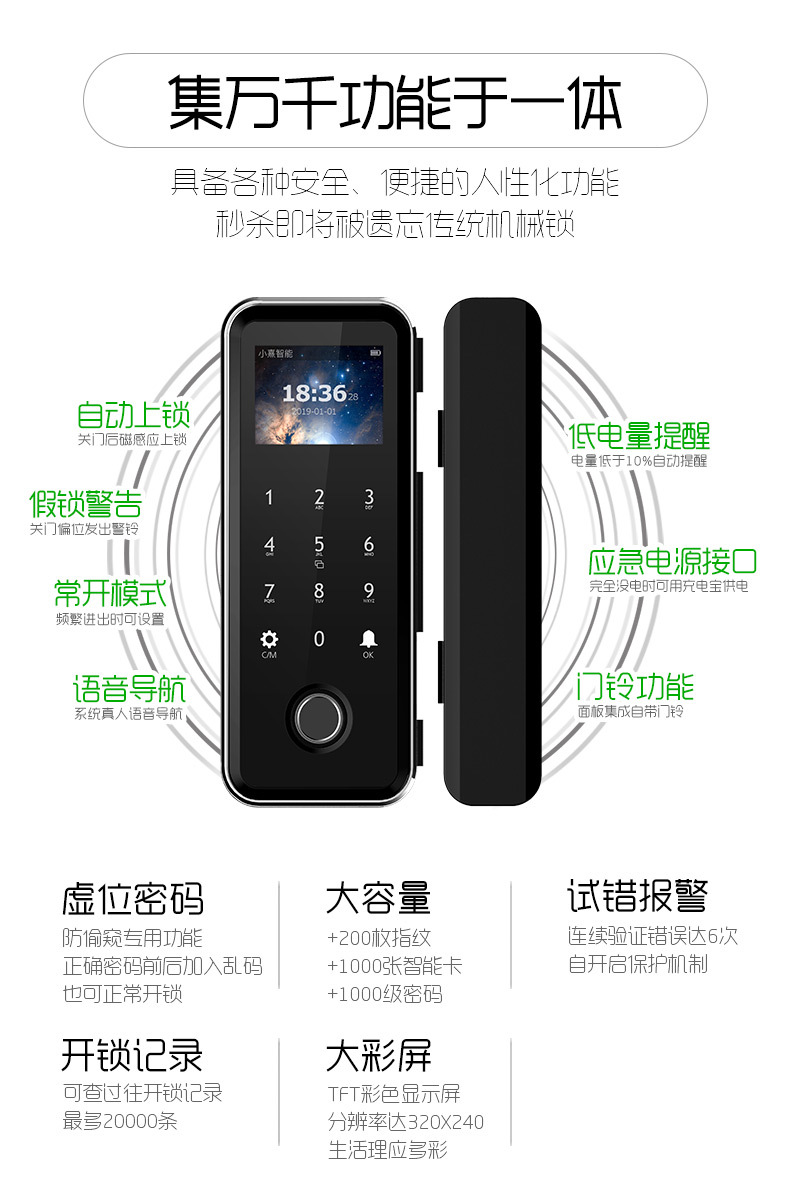

899s详情2-三大创新.jpg 899S实装图.jpg 899s详情3-主功能描述.jpg 899s详情4-其它功能.jpg 899s详情13亮灯效果.jpg 899s详情11-应用场景.jpg

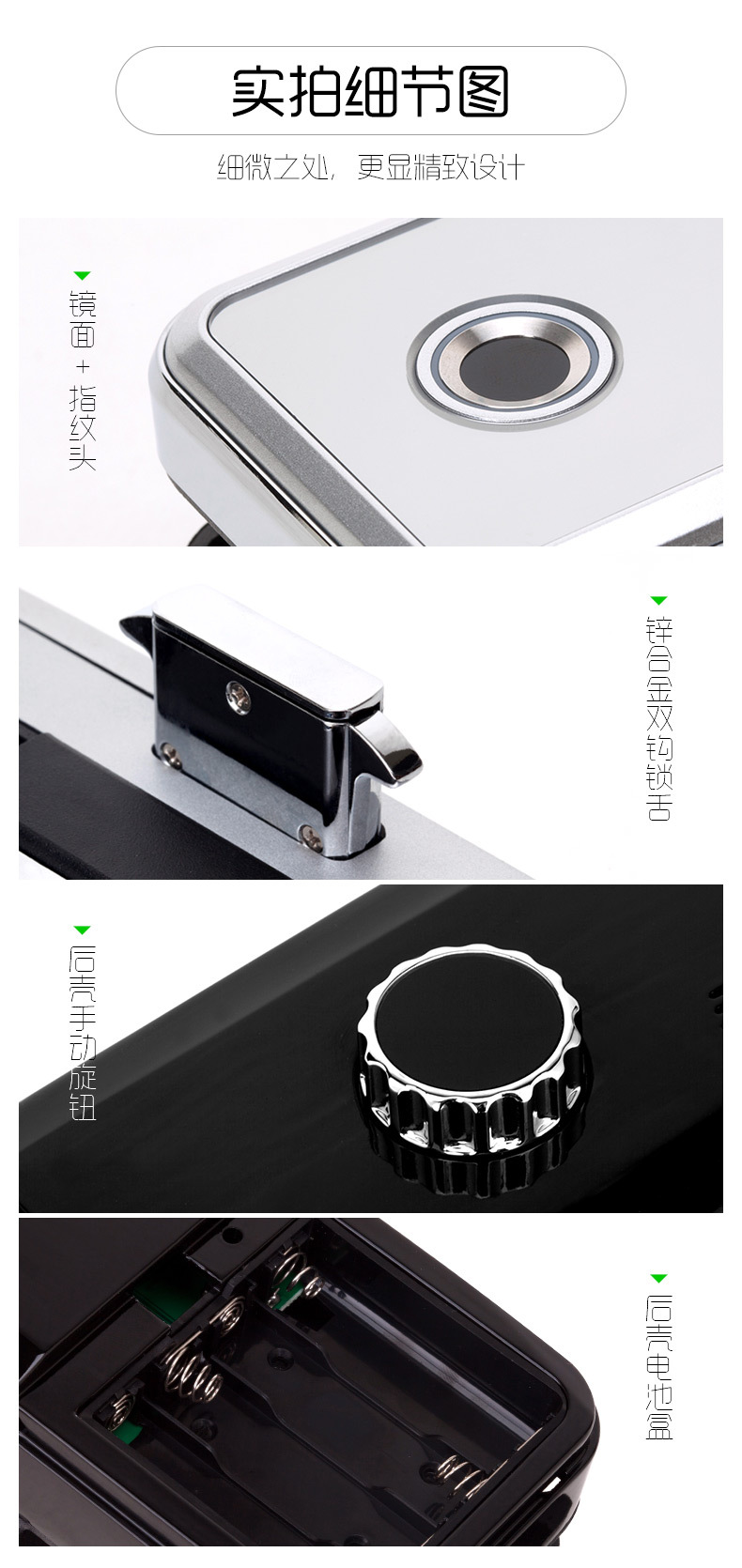

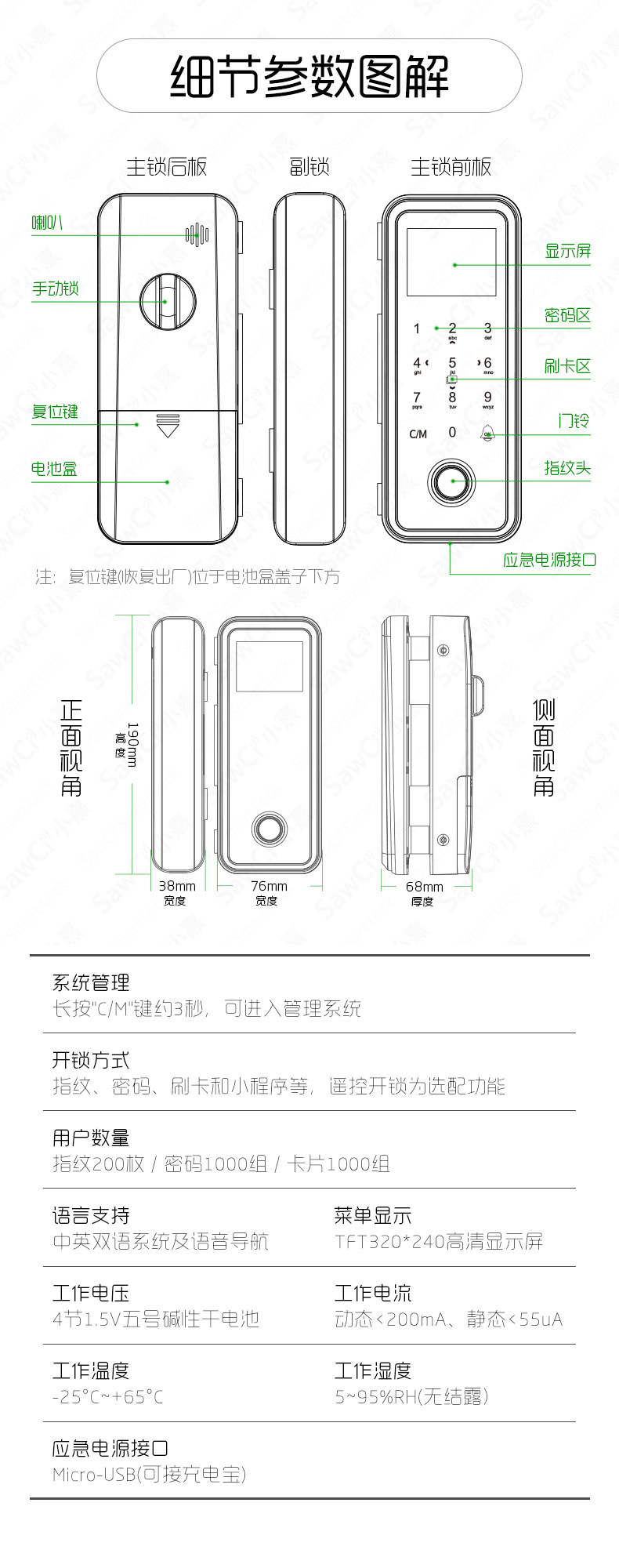

899s详情5-细节特写.jpg 899s详情6-细节参数.jpg

■ System Management: Press and hold the "C/M" key for about 3 seconds to enter the management system
■ Locking methods: Fingerprint, password, card swiping, and mini-program, etc., with remote control locking as an optional feature.
■ Language Support: A bilingual system in Chinese and English, as well as voice navigation.
■ Menu Display: 320*240 High-Definition TFT Display / Graded Menu Management
Fingerprint Capacity: 100
Password capacity: 1000 sets
Card capacity: 1000 sets
■ Working Voltage: 4 AA 1.5V Alkaline Battery
■ Working Current: Dynamic Power Consumption <200mA, Static Power Consumption <55uA
■ Working Temperature: -25°C to +65°C
■ Working humidity: 5~95%RH (no condensation)
Power Interface: micro-USB (DC5V)
■ Standard Equipment List: Main Lock + Sub-Lock + Installation Tiles + Screw Pack + Smart Card X2 + Instruction Manual + Packaging Box
Optional accessories: remote control, single-door side strip, frame-less door separate package.
