1. Principle

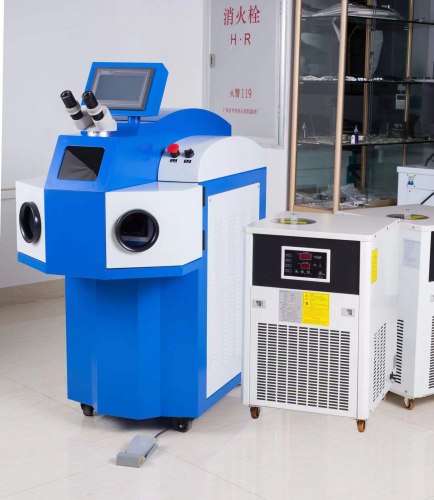

The TW-JW200 series of jewelry welding machines are developed through Sino-German technical cooperation and are specially designed for metal jewelry production and repair. They are mainly used for spot welding sand holes, patching holes, repairing seam lines, spot welding sand holes, and welding of claws and other parts of inlaid components in gold, silver, copper, and stainless steel jewelry.

Principle: The laser deposition welding technique uses high-energy laser beams to concentrate heat on a specific point. Surface heat is then transmitted to the interior, and the process is controlled by adjusting parameters such as laser pulse width, energy, peak power, and repetition frequency. This melts the workpiece to form a specific molten pool.

Advantages: AdoptsimportCeramic Concentrator Cavity, Corrosion-resistant, High-temperature-resistant, High Photoelectric Conversion Efficiency; Adopting the world's most advanced automatic shading system, it eliminates the stimulation of the eyes during work; Parameter adjustment dual-panel design, adding adjustment crank in the closed chamber, making operation more convenient; Professional work chamber design, easy to clean and recover precious metals; Laser energy, pulse width, and frequency are adjustable, suitable for welding of various metal materials; 10X microscope magnification, crosshair indicator, and uses a high-speed liquid crystal valve for automatic shading. Compact in size, easy to operate, and the welding points are firm and beautiful, suitable for spot welding, patch welding, and other operations on various metal materials.

Typical application: Can be used for welding platinum, Various metals and alloys such as K gold, silver, copper, and stainless steel.

II. Machine Parameters:

Device Model	Taiwan-JW200TW-JW200C
Laser wavelength	1064nm
Focus spot diameter	0.2-3.0mm
Nominal Output Power	200W
Minimum Welding Pool	0.15mm
Pulse Width	1ms-5Ms.
Welding Depth	0.05-2mm
Pulse Frequency	1-25Hz
Control System	Single-chip microcomputer controlPC or PLC
Observation System	MicroscopeCCD
Power demand	single-phase220V/50Hz/25A
Operating temperature	15-35℃
Humidity Requirements	40%-80% no condensation
Host System (Length)Width × Height	1100mm×600mm×1230mm
Cooling System (Long)Width × Height	630mm×530mm×400mm
