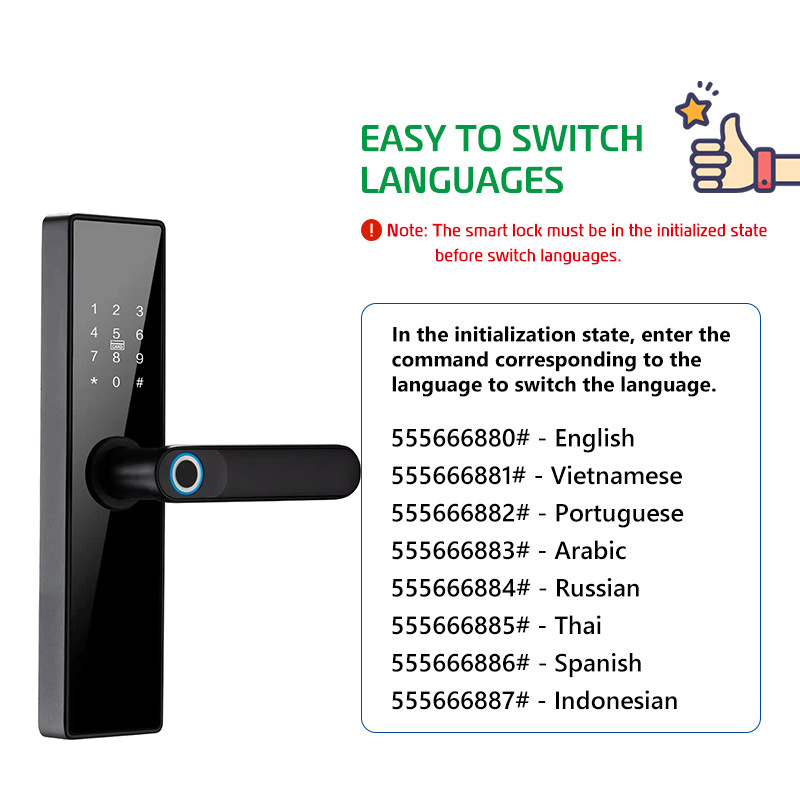

About language/speech:Eight languages, switch at will.If you cannot switch, please contact customer service to obtain a video tutorial.

About installation: Some accessories need to be adjusted according to the actual door thickness during installation. If you have any questions, please contact our customer service.

Product Parameters

1. Fingerprint capacity: ≤50
2. Password capacity: ≤100
3. Magnetic Card Capacity: ≤100
4、Panel Material: Aluminum Alloy
Color: Black, Red Antique Brass
6、Panel Size: 260*60*21mm
7. Supported Systems: iOS 7.0 or Android 4.4 and above
Battery life: 10,000 on/off cycles (12 months)
9. Power Supply: DC6V, 4 Alkaline Batteries
10. WIFI Frequency: 2.4GHz, other frequencies require switching to connect.IC Card Frequency: 13.56MHz

11. Static Current: 45 microamps
12. Dynamic Current: <200microampere
13. Unlocking Time: ≤0.2S

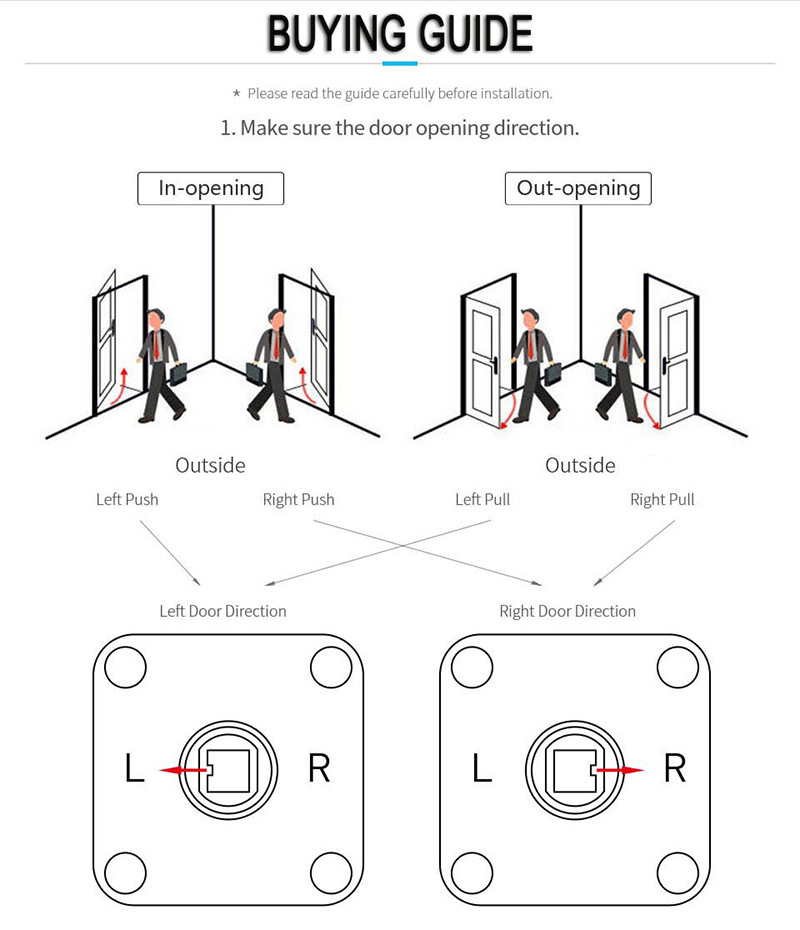

14. Handles direction: Adjustable freely in left and right directions
15. Waterproof rating: slightly waterproof, not suitable for any rainy or direct sunlight environments.
16. System Language/Voice: Portuguese/Russian/Spanish/English/Arabic/Indonesian/Thai/Vietnamese (The door lock system can turn off system voice)
17. Standard door thickness for installation: 30~50MM (If the thickness is lower or higher than the standard, please contact customer service, and you need to match the extended screws and bearings).
18. About the ODM custom service content of the factory: Mainboard system, system voice/language, magnetic card style, trademark customization, intelligent program (WIFI/Bluetooth), packaging box, functional freedom combination, etc.
The prices of the above products are all standard configurations: fingerprint, password, card swiping, key opening. If you want to add graffiti WIFI and TOTON Bluetooth, please contact customer service.

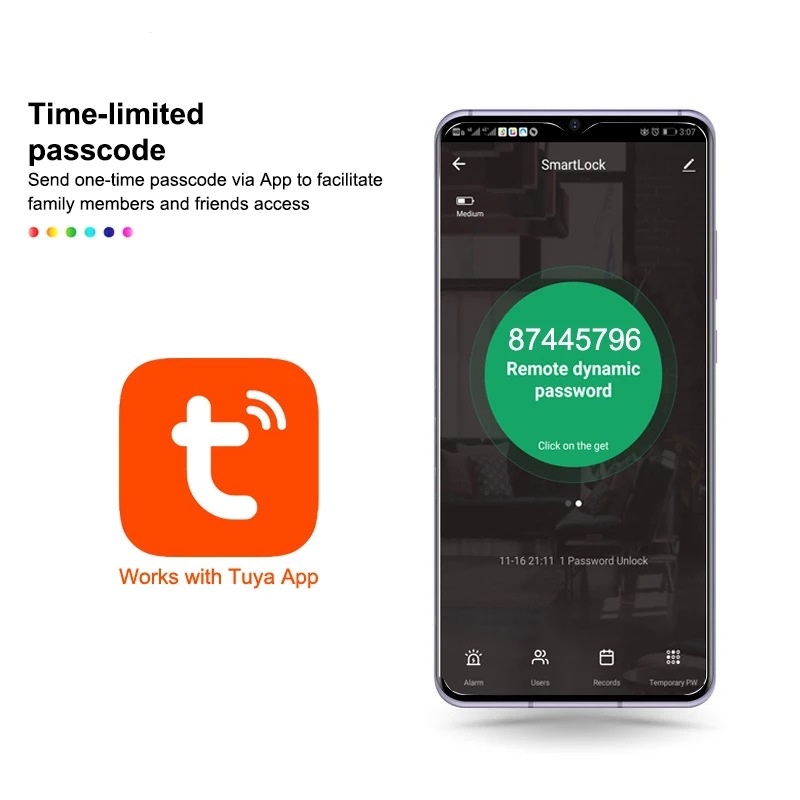

Graffiti Intelligent Function:Remote unlocking (without gateway), unlocking reminder, unlocking record, temporary password

Mechanical Safety Function

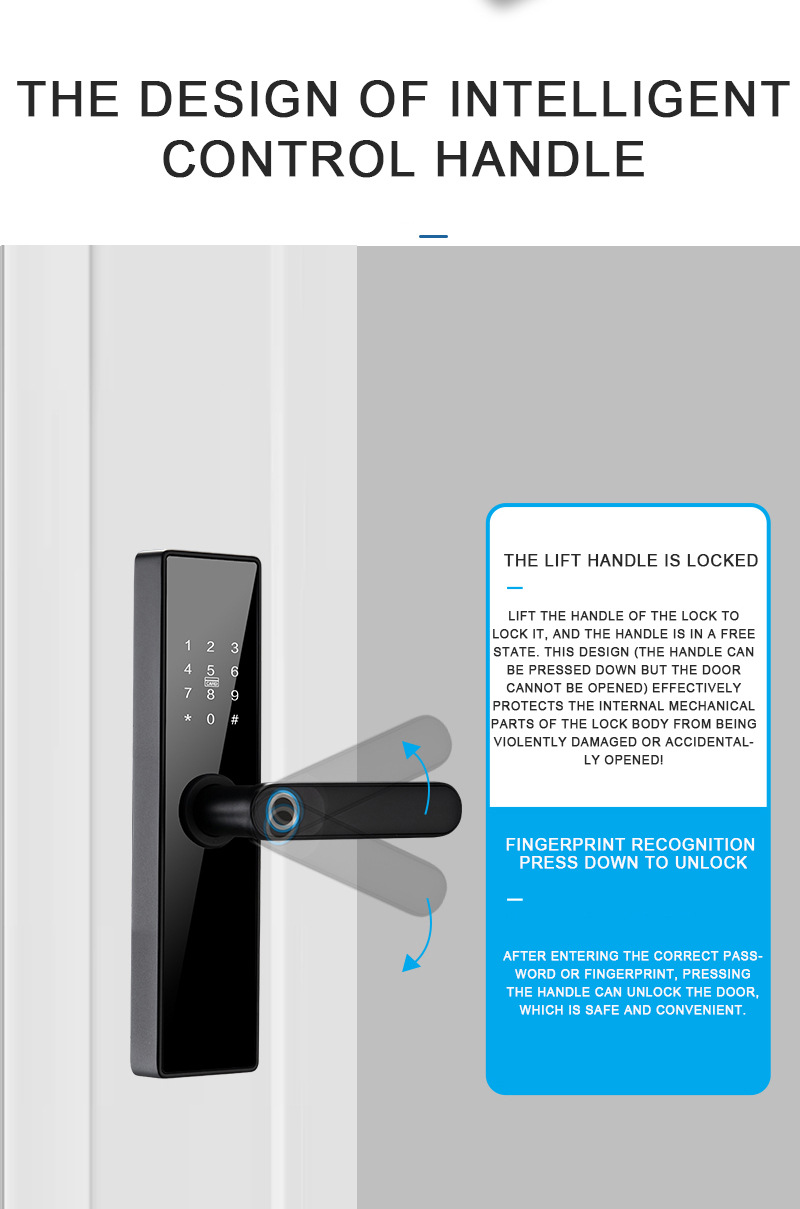

Simply lift the handle to lock the double tongue, and the rear panel has a one-button electronic anti-lock feature for added security; Constant-on mode: Simply use the administrator user information (fingerprint/IC card/password) to unlock, and enter 5+# to maintain the constant-on mode. After unlocking, the constant-on mode will automatically close the administrator information.

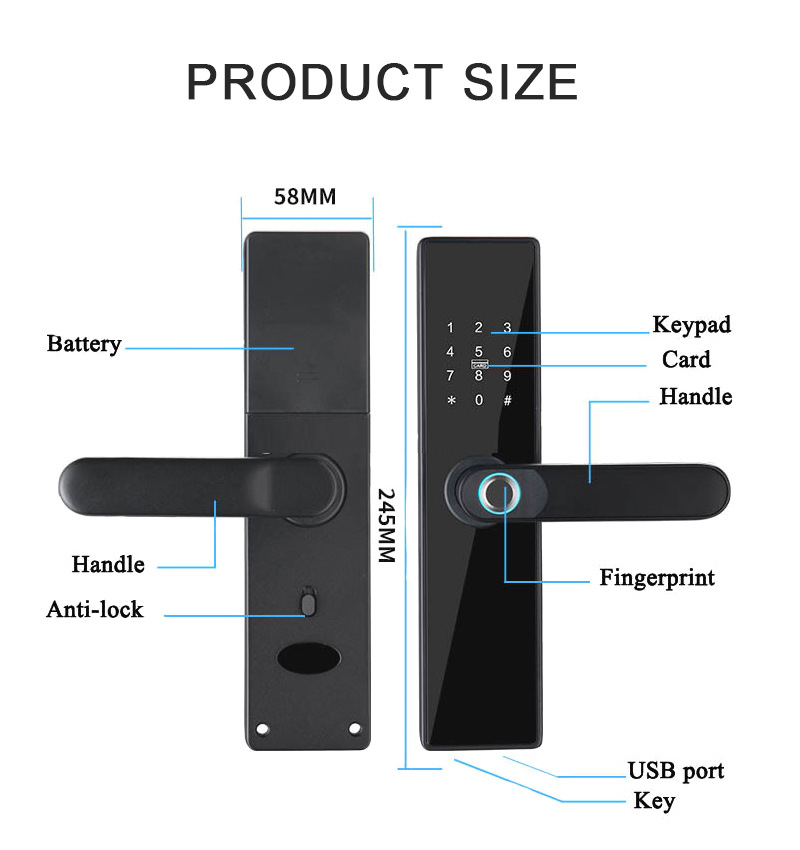

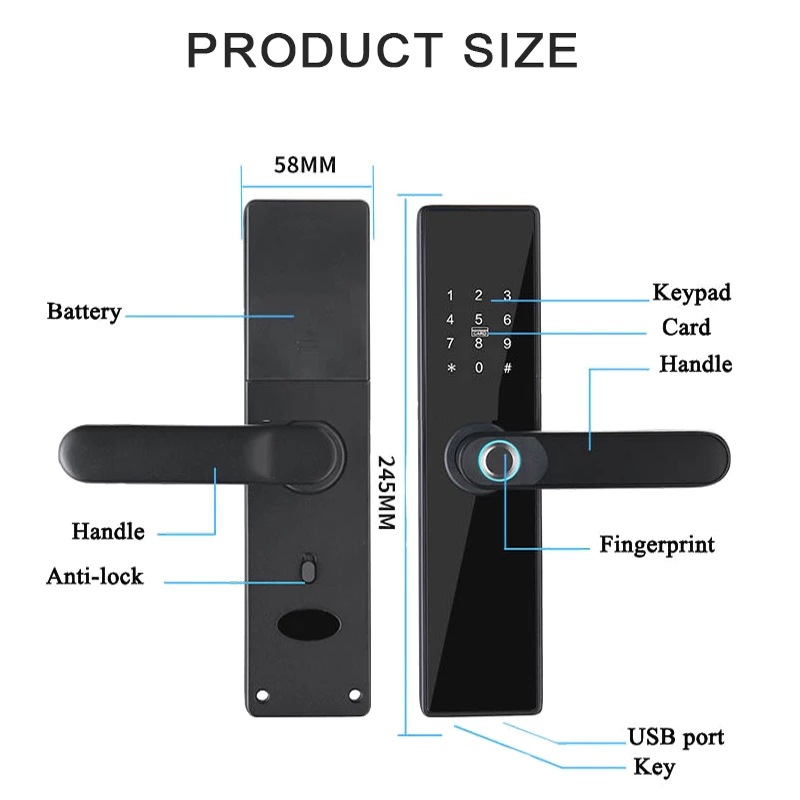

Product Size

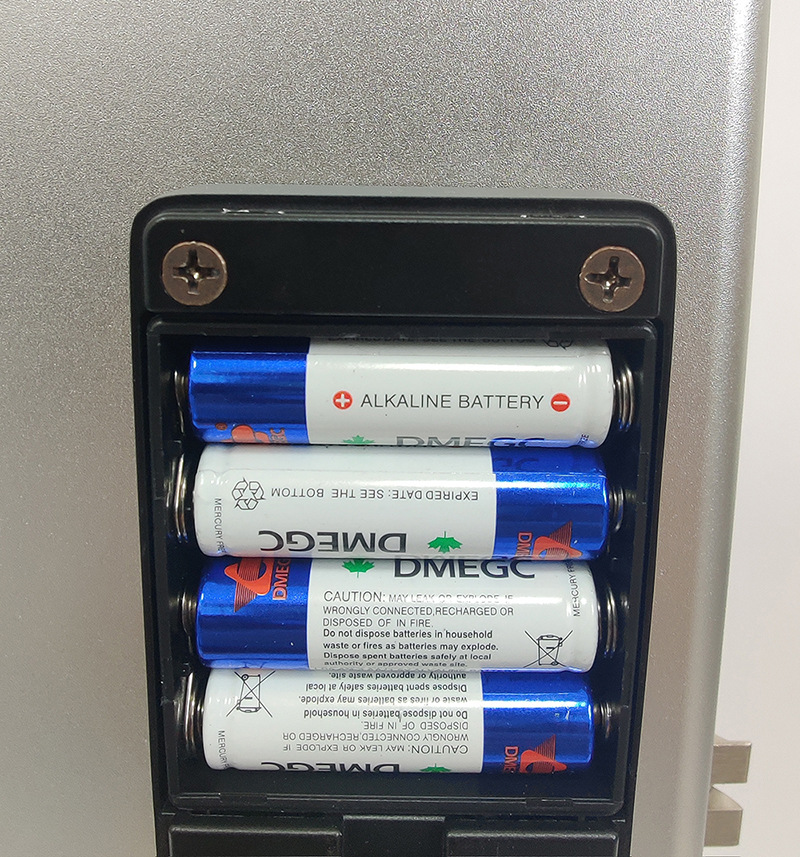

About Batteries

Using 4 AA 1.5V batteries,Please use non-rechargeable alkaline batteries; AA batteries are larger than AAA batteries and have a longer battery life, while other models use smaller AAA batteries.Batteries are not included in the packaging.

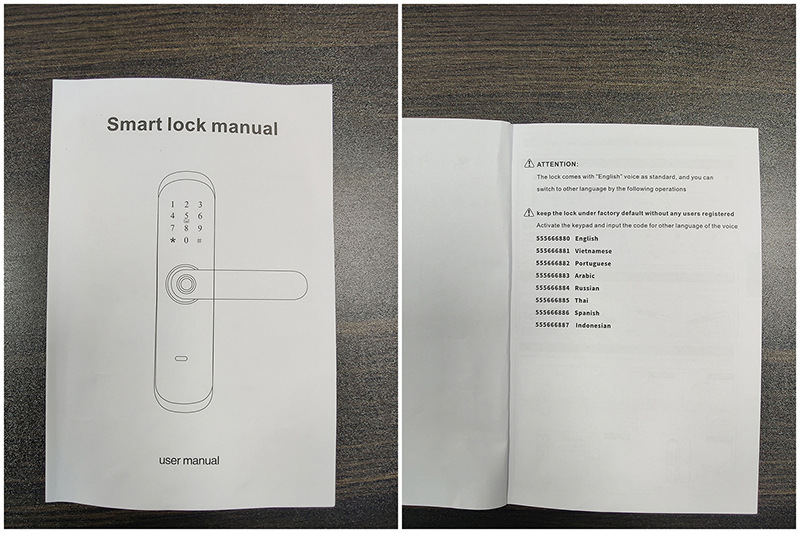

Instruction Manual

八种语言，详细说明，如果您有任何疑问，可以联系客服，并且会发送各种视频教程。由于物流重量限制，当大型锁体发货时，说明书只保留本地语言+英语。

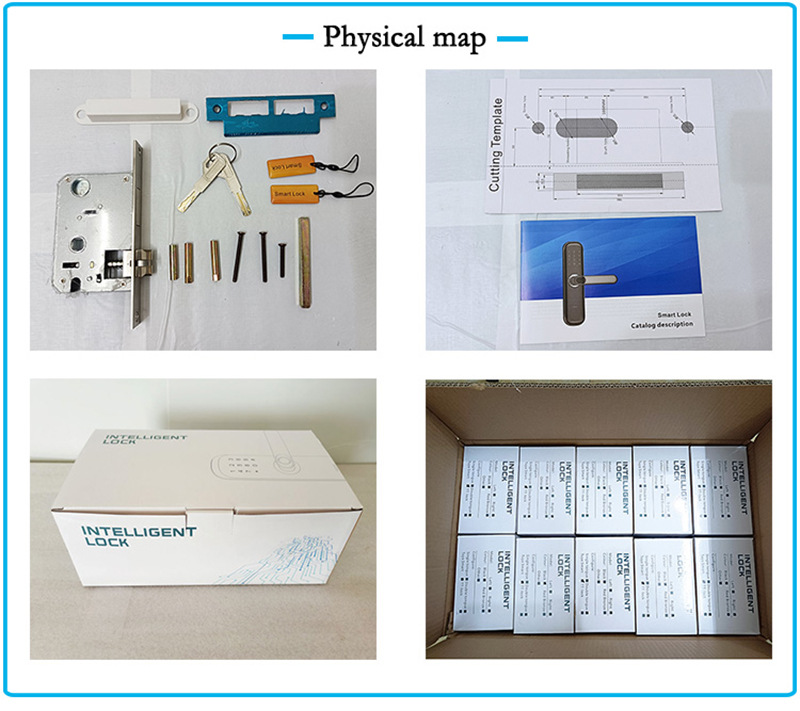

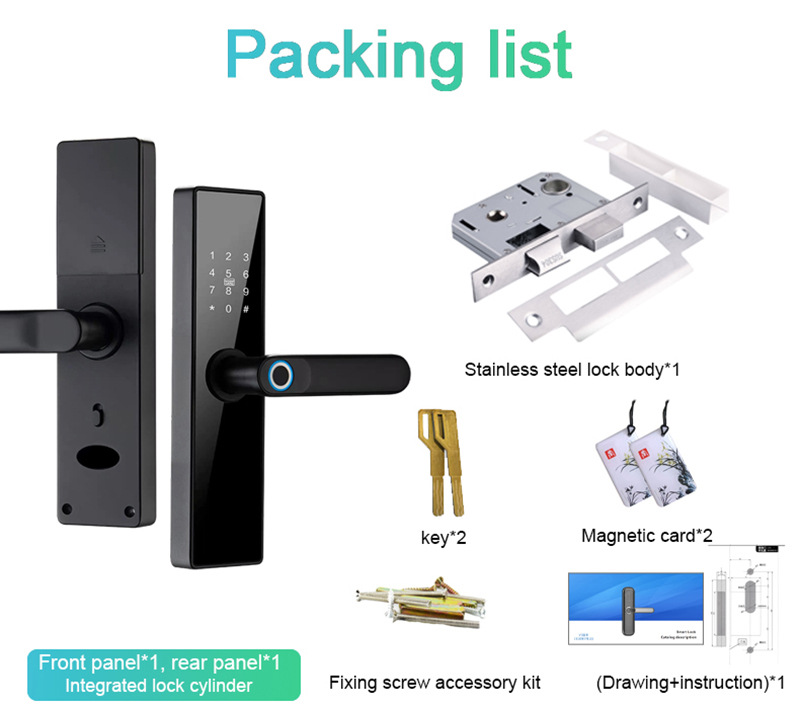

Product Content

Front panel*1
Rear panel*1
Optional lock body*1
Random magnetic card*2
Key*2
Hardware accessories package*1
Door buckle box*1
Hardware edge*1
Keyhole diagram*1
Instruction manual in eight languages (TUYA)*1

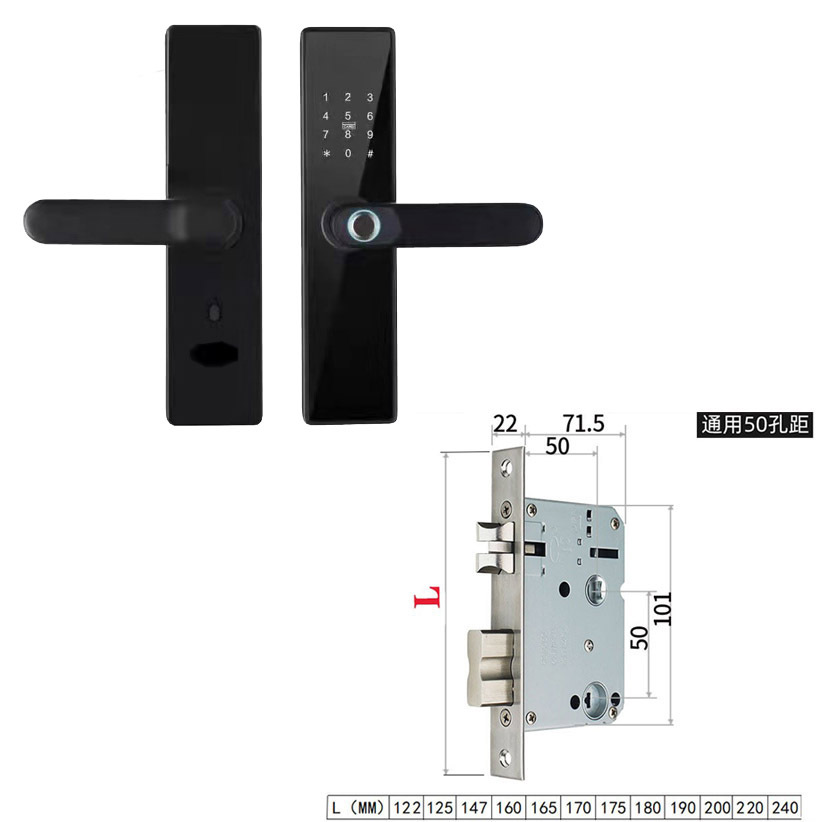

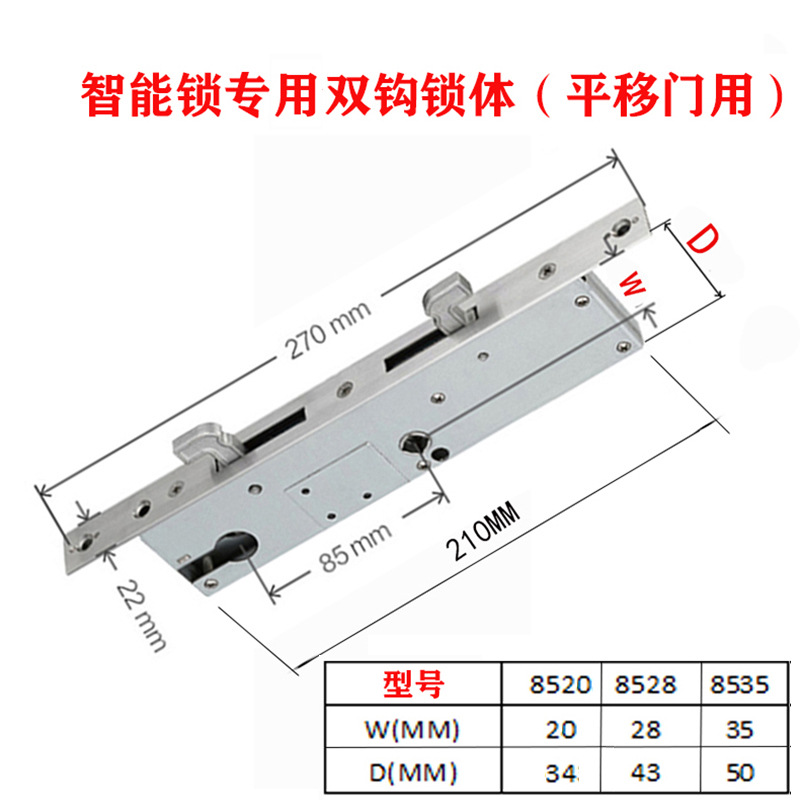

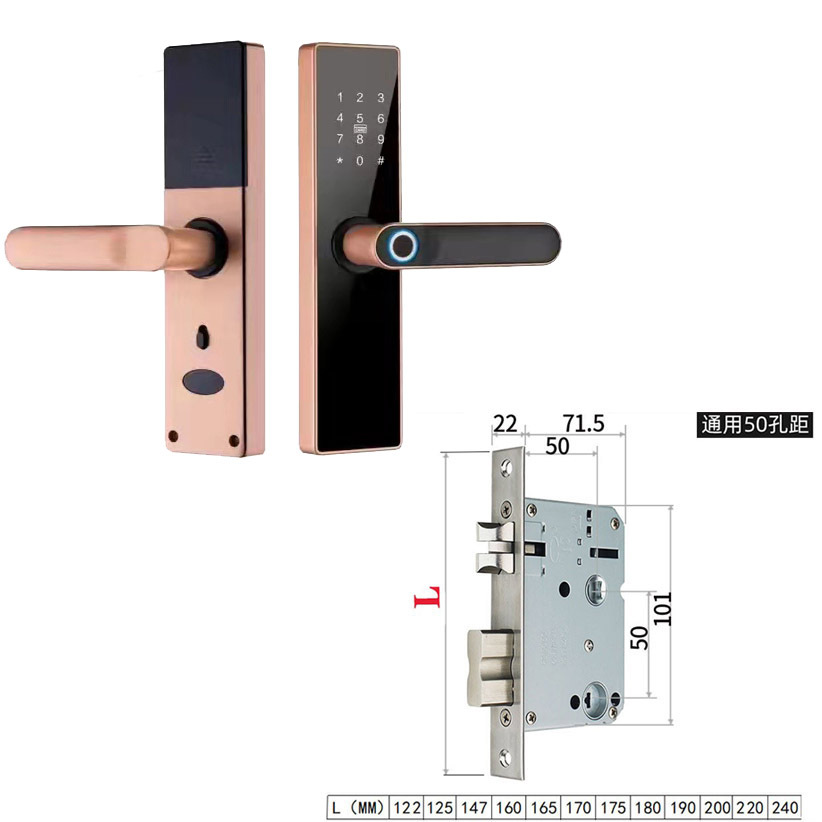

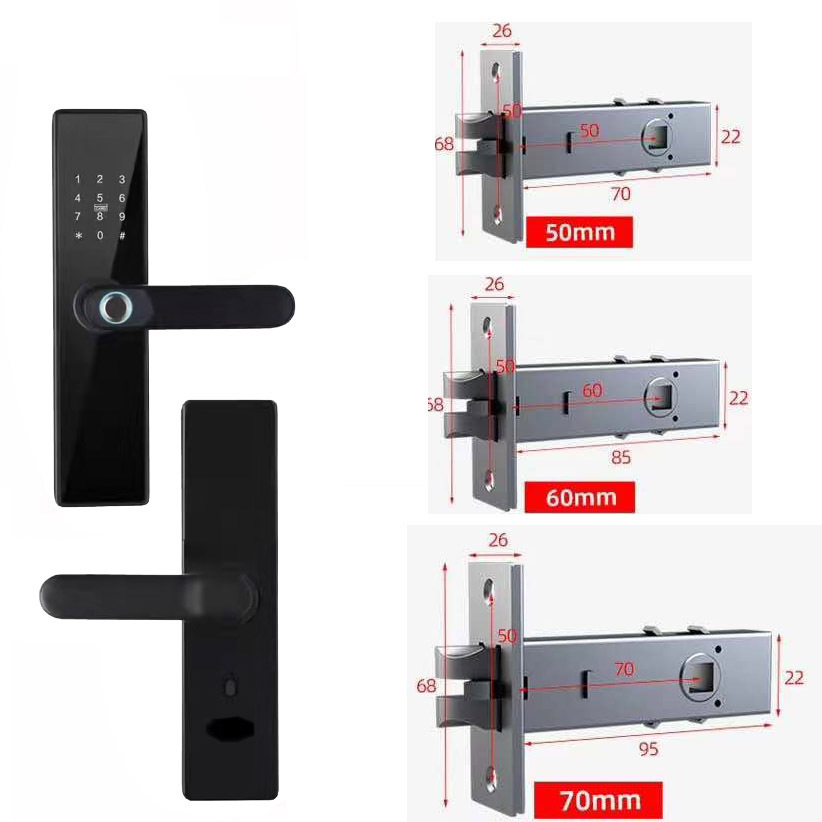

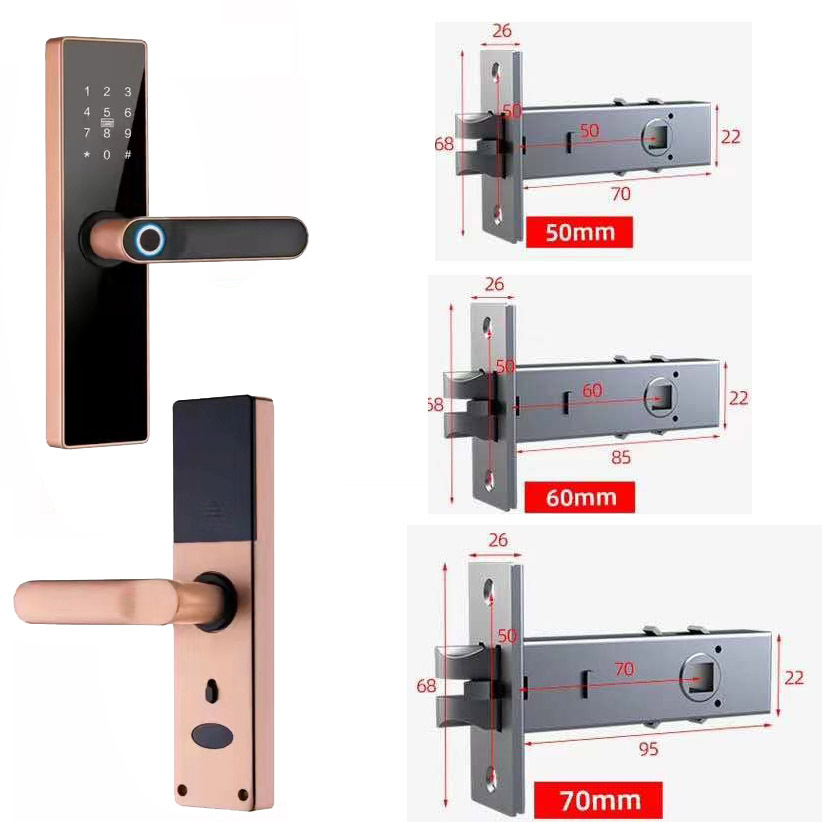

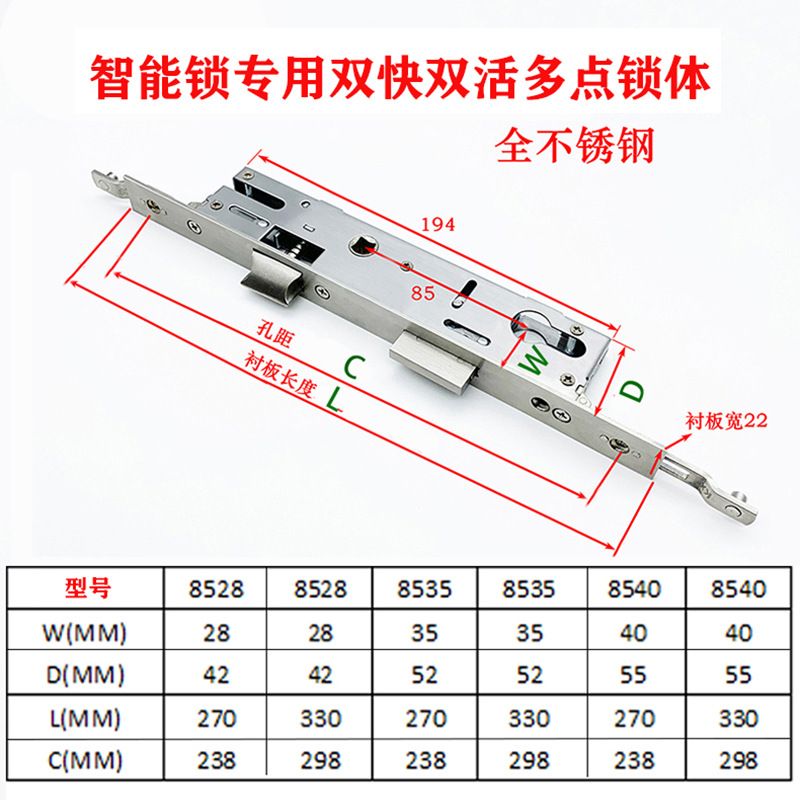

Installation Dimensions

Please measure the length and width of the door lock edge according to the picture. If the size is standard, you can directly replace and install it. If the size is between the long and short, you can choose a longer size to install the cover plate. If the size exceeds the maximum size, please contact customer service.The direction of the handle and the bolt can be adjusted.If you need to, you can contact customer service to obtain the video. In addition to the 12 standard size locks, other sizes require additional custom lock body fees, thank you.

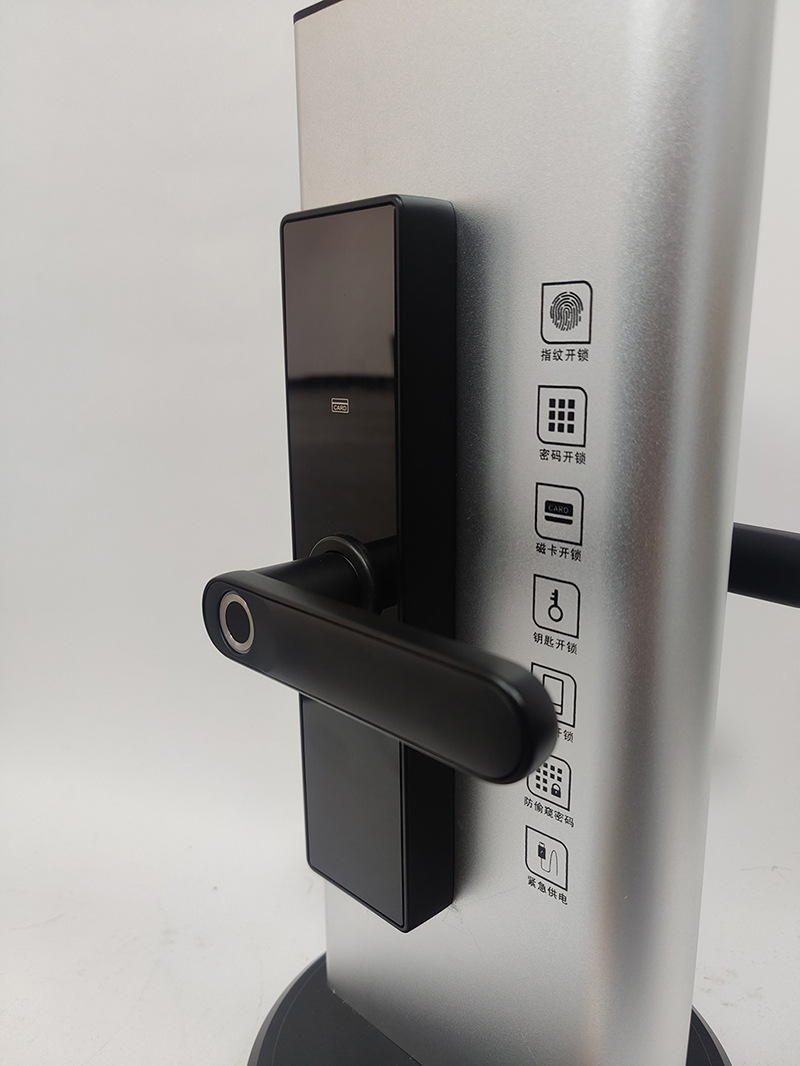

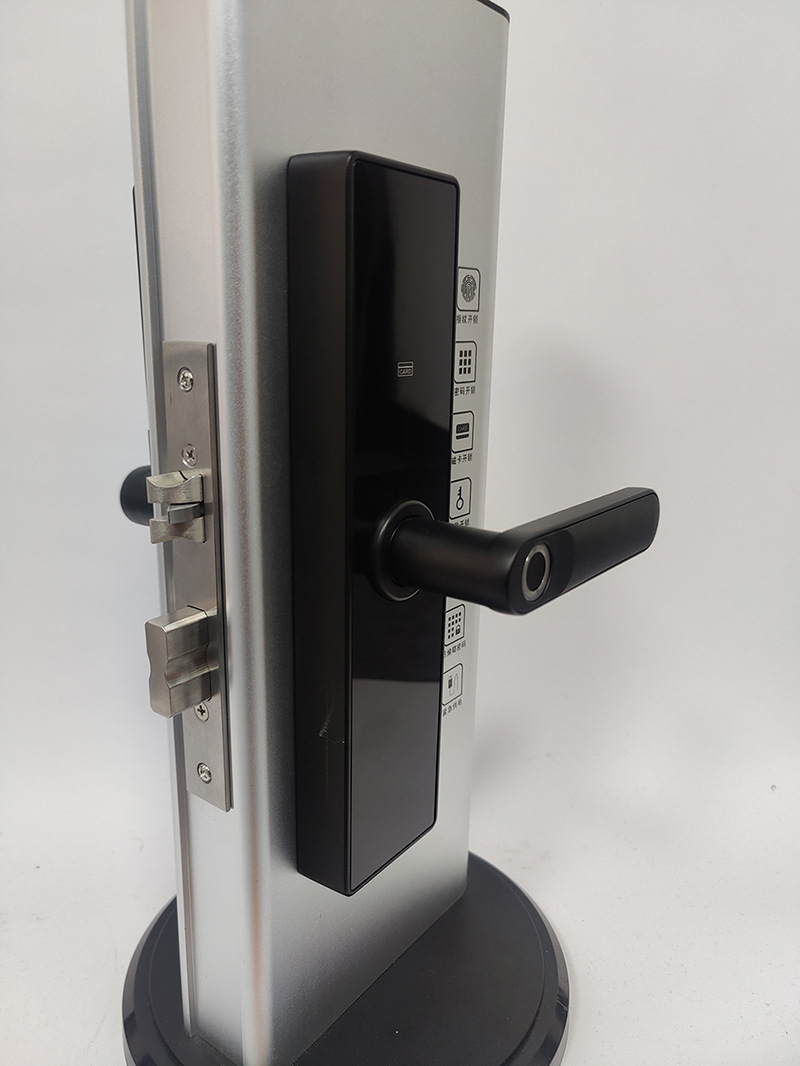

Product Physical Picture
