• The above unit price does not include lock body, door-to-door installation, tax-free, and freight.
• If you need to issue an invoice, please contact Customer Service for detailed consultation.
• Our company specializes in OEM/ODM, mold opening and customization, secondary development, remote delivery of unattended faces in smart hotels, China Southern Power Grid cabinet lock and other projects. Please contact Customer Service for detailed consultation.

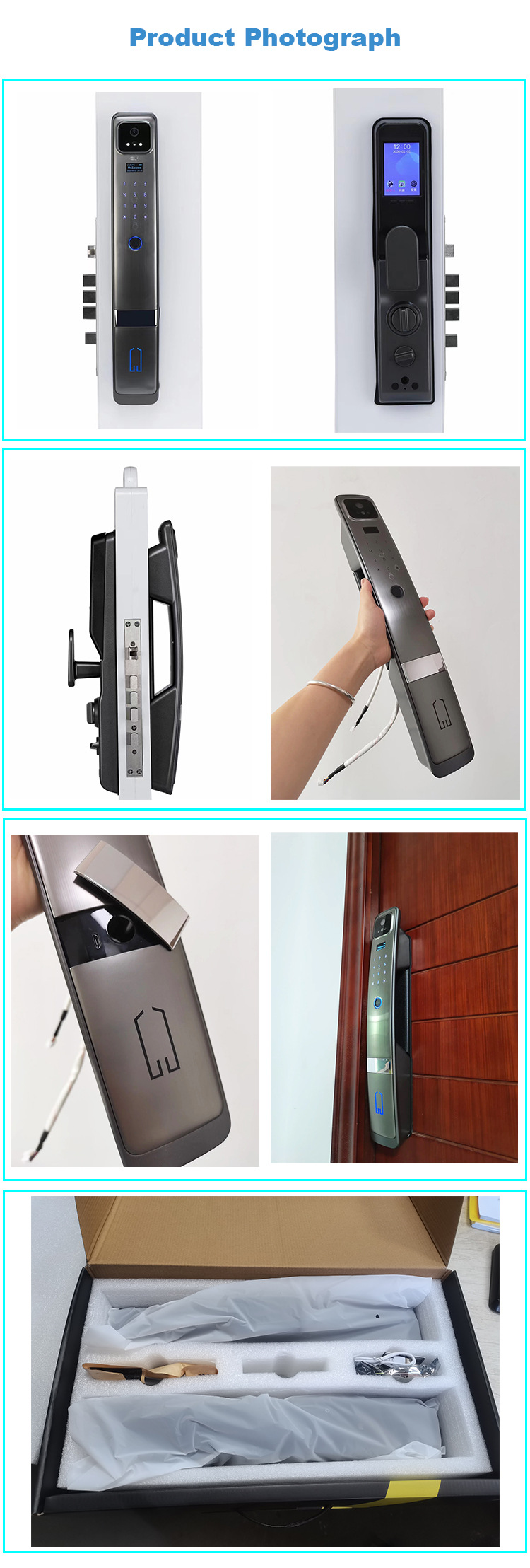

Packing specification: (without lock body)

single set: 4kg/1PCs, length 470MM * width 130MM * height 270MM

whole box: 24KG/5pcs, length 680MM * width 482MM * height 285MM

product parameters:
operating voltage: 7.0V-8.4V
alarm voltage: 7.2V
sleep static current: // 80mA (excluding lock board and module)
motor blocking optional current range: 2.5A-4.5A (battery current greater than 5A)
emergency interface: USD interface (battery can be charged)

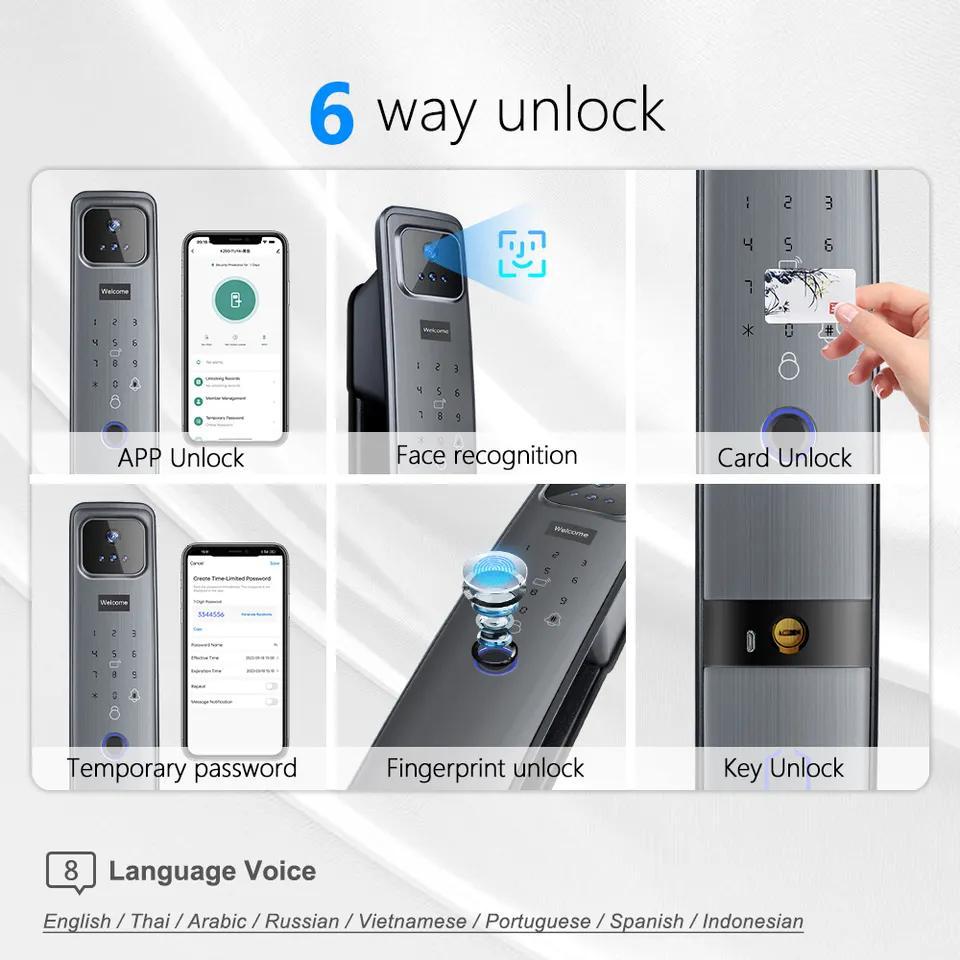

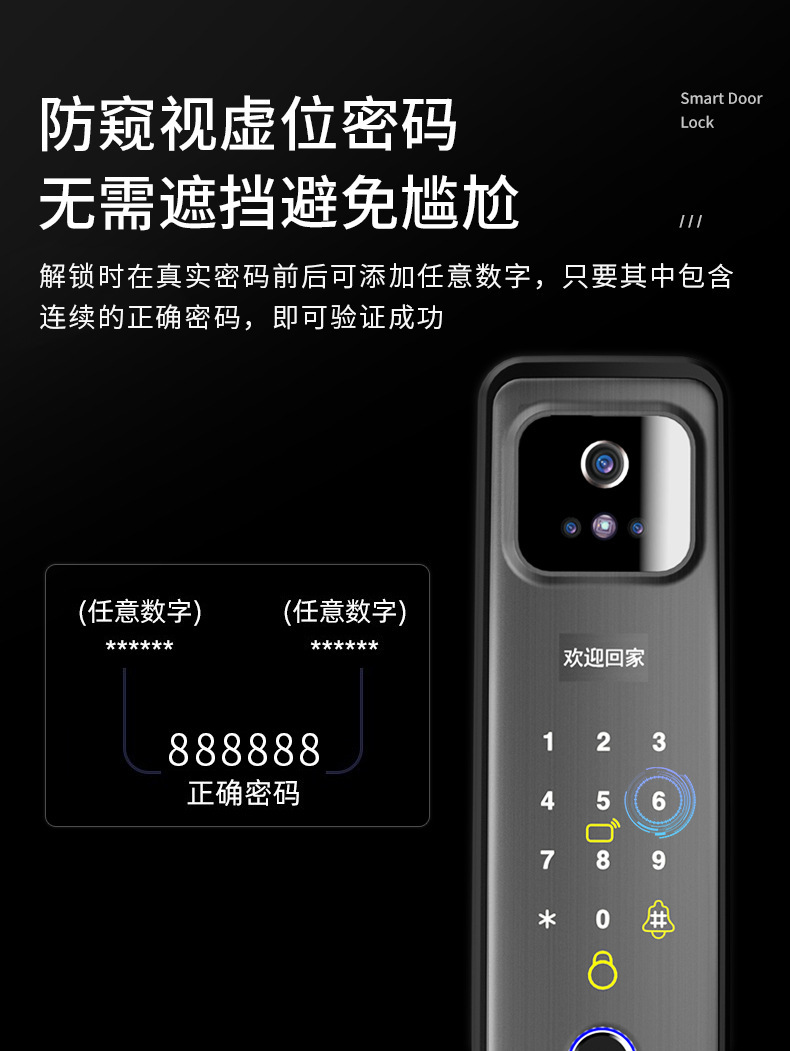

number of management users: 5 (fingerprint/card/password)
number of common users: 295 (face/fingerprint/card/password)

start time:<1 second

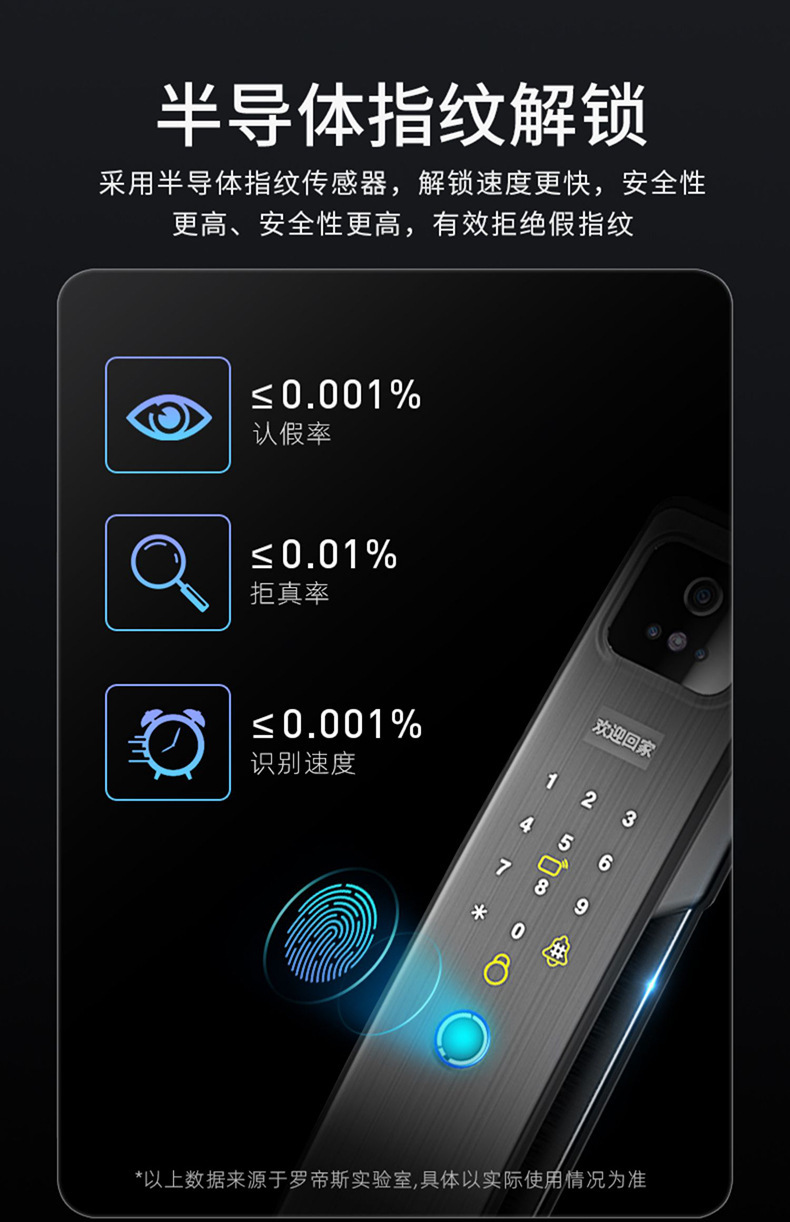

false recognition rate:<0.0001%

rejection rate:<0.01%

recognition speed: 0.5 seconds

low voltage alarm:<6.8V

power supply voltage: 8.4v lithium battery power supply

emergency Supply: 5V/2A (available at Power Bank)

working environment: identification distance: 30-80cm

humidity:<80

temperature:-10-60 ℃

applicable door thickness: 40-120mm

About us: Dongguan Haoyuxing Intelligent Technology Co., Ltd.
