fingerprint lock smart face recognition home security door office peephole viewer electronic password door lock

Contacts:lemen Chat

Mobile:86-13506587772

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

The above unit price does not include the lock body, does not include on-site installation, does not include tax, and does not include shipping fees.
Need to open an invoice, please contact customer service for detailed consultation.
All steel 6068 national standard lock body 24*240 size + 25 yuan, cylindrical lock body 30*240 size + 35 yuan, king lock body 30/40*388 size + 90 yuan.

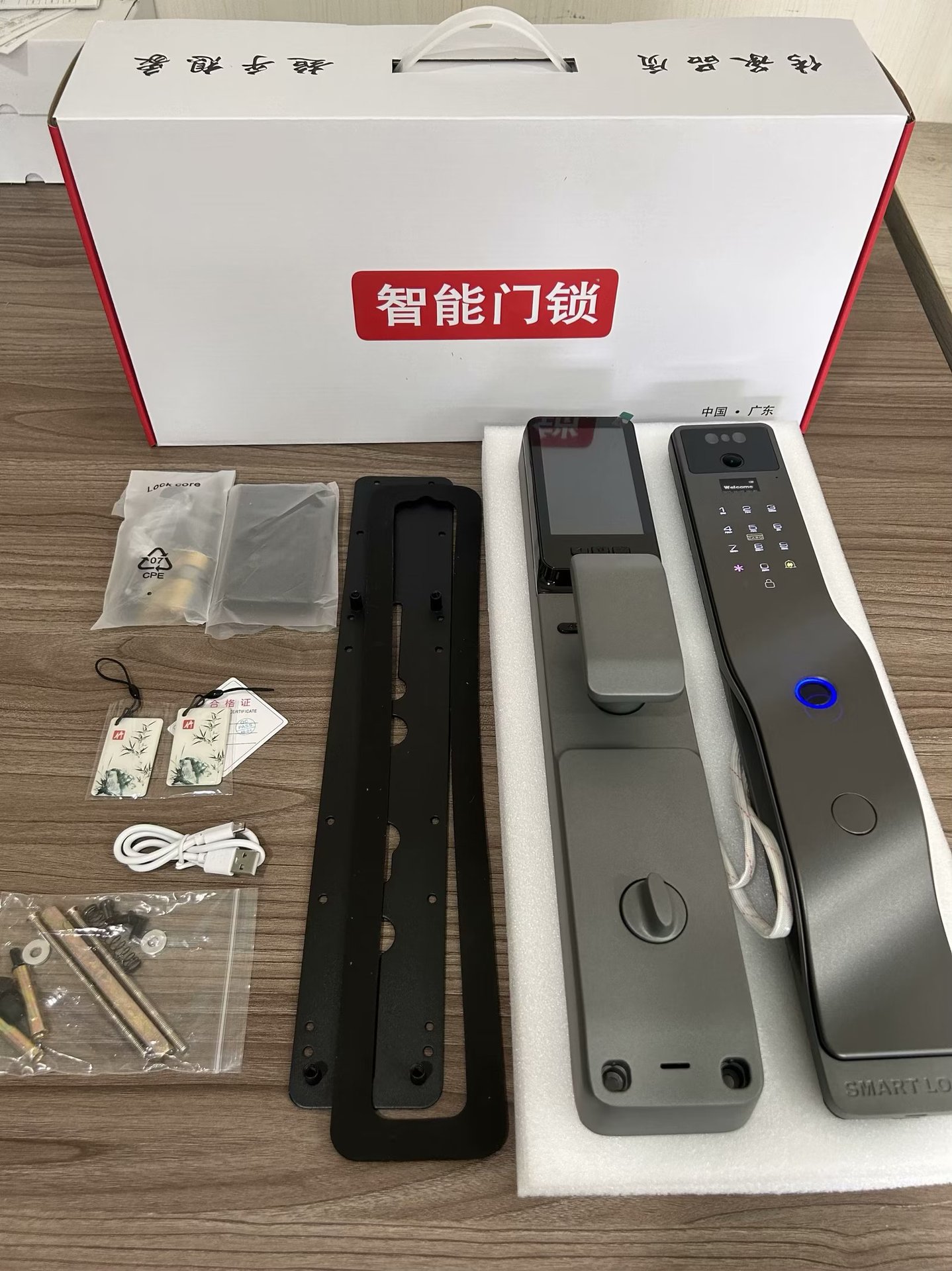

Packing Specification: (Excluding the lock body)

Unit weight: 4KG/1PCS, Length: 490MM, Width: 280MM, Height: 110MM;

Case: 24KG/6PCS, Length: 490MM*Width: 380MM*Height: 480MM;

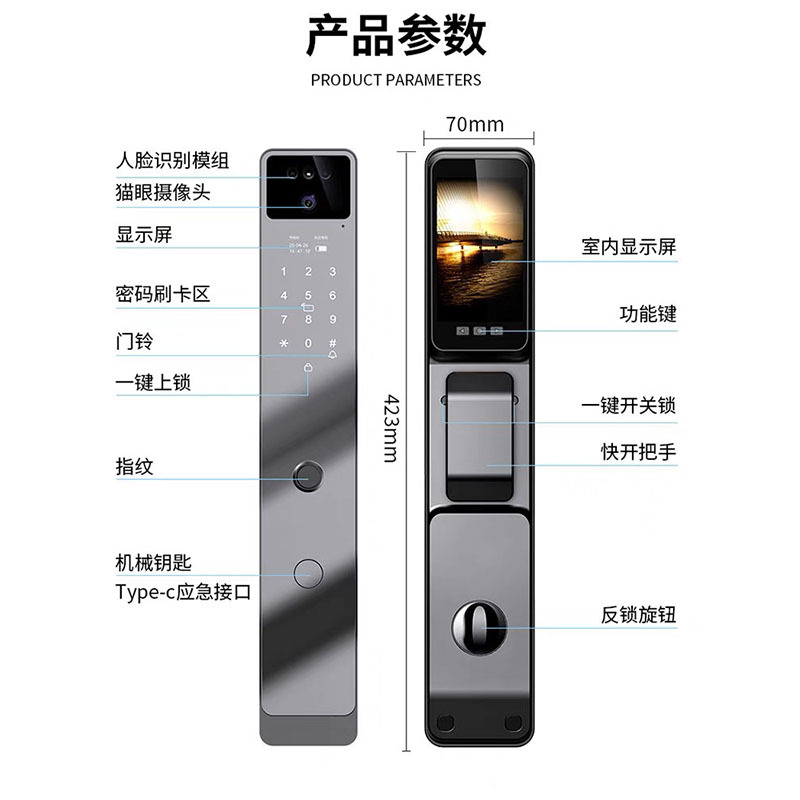

Product Parameters:

Serial Number	Project	Technical Description
1	Working Voltage	7.0V – 8.4V
2	Alarm Voltage	7.2V
3	Suspend static current	< 80uA (Only for the lock board, not including modules)
4	Motor Stalling Current Range	2.5A–4.5A (battery current must be greater than 5A)
5	Emergency Interface	USB port (requires battery charging)
6	Manage the number of users	5 (Fingerprint/Card/Password)
7	Number of Regular Users	295 (Fingerprint/Card/Password)
8	"电机方向"可以翻译为 "motor direction"。	Support Switch
9	Motor rotation angle (time)	Support modification
10	Locking time (slant tongue does not rebound)	Support modification
11	Card Type	Mifare-1 and ISO/IEC 14443-A compatible
12	doorbell	Support
13	One-Click Lock (Front Panel)	Support
14	One-click Lock (Rear Panel)	Support
15	One-Click Unlock (Rear Panel)	Support
