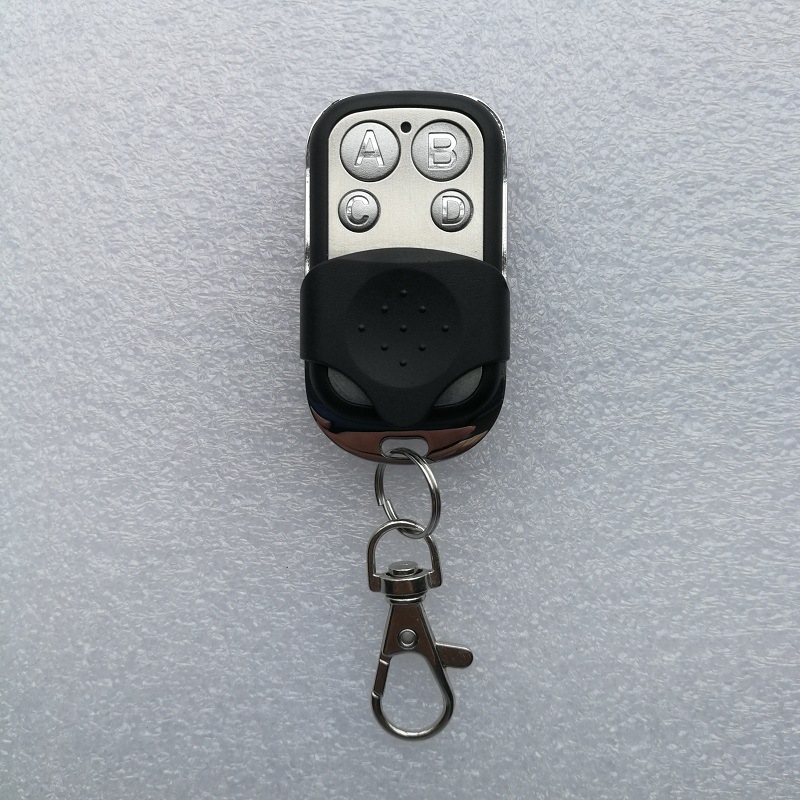

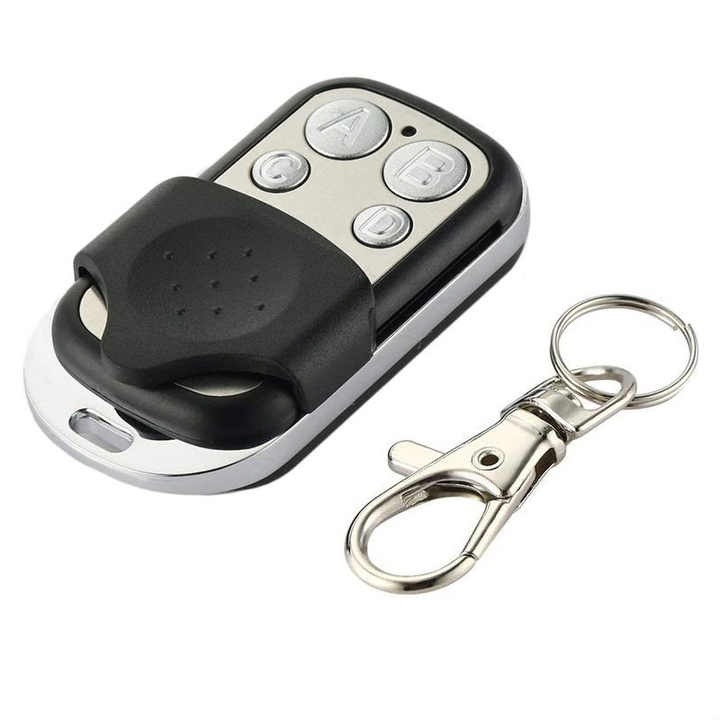

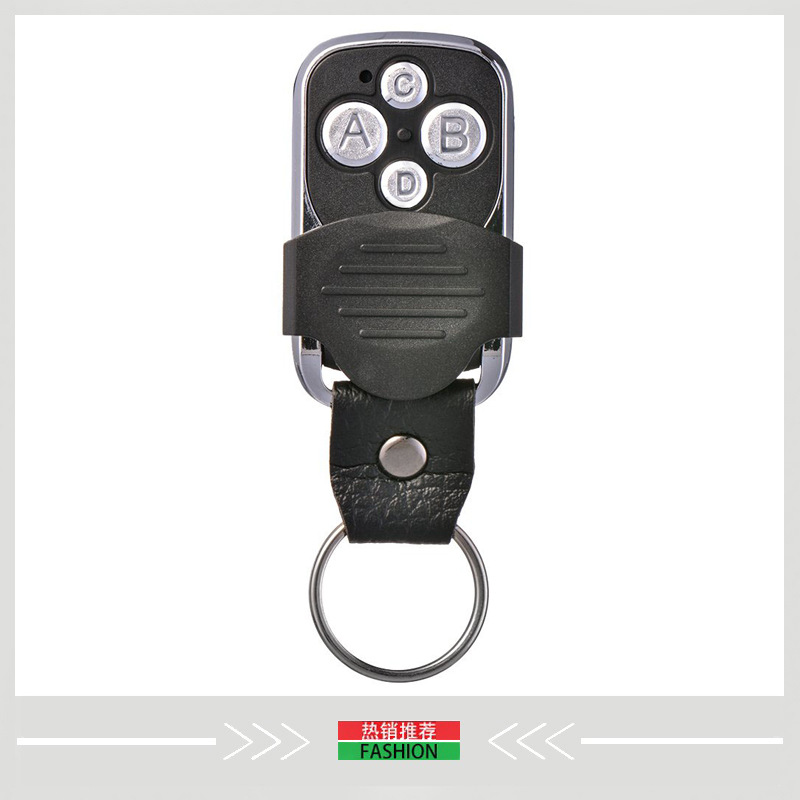

Model: FBD-JX04 Copy/Clone/Duplicate Remote Control

* Two-button, Four-button

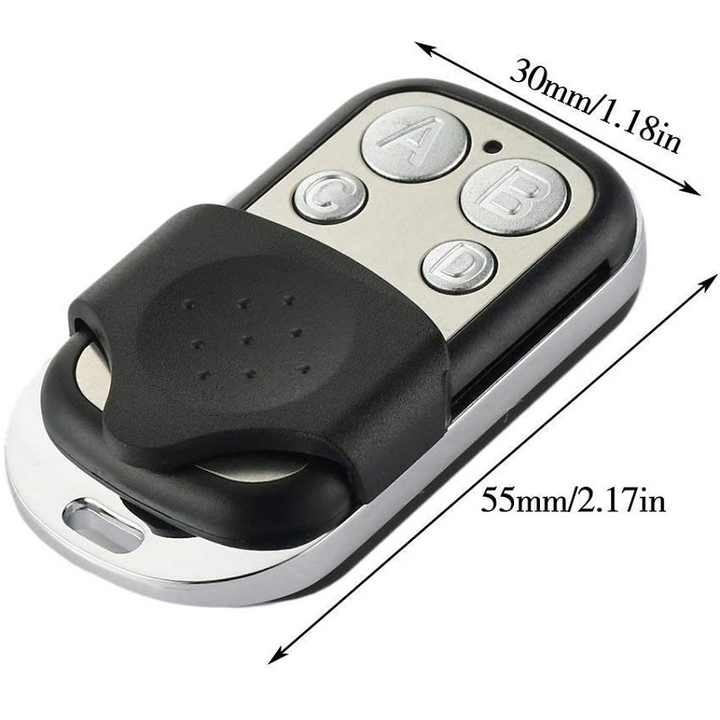

*Size: 58*38*13mm

Technical parameters:

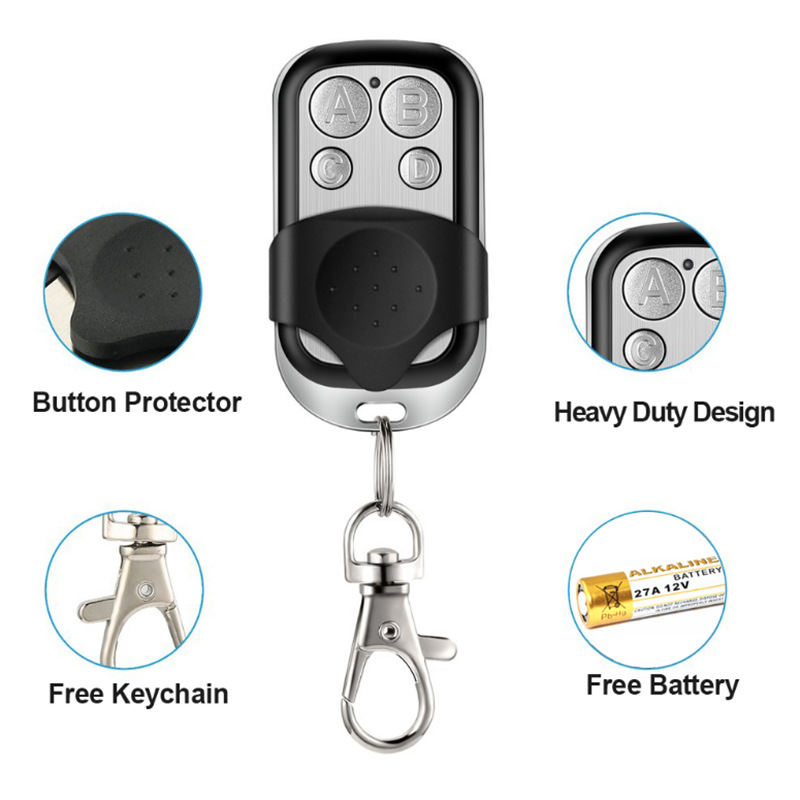

Working Voltage: DC12V (Single Battery 27A)
Working Current: ≤8mA
Working Frequency: 433MHz (433.92MHz)
Modulation Mode: ASK (Amplitude Shift Keying)
Transmitting power: ≤100MW
Transmission distance: 50～100m (open space)
Coding Type: Self-Copy
Working temperature: -10°C to +50°C

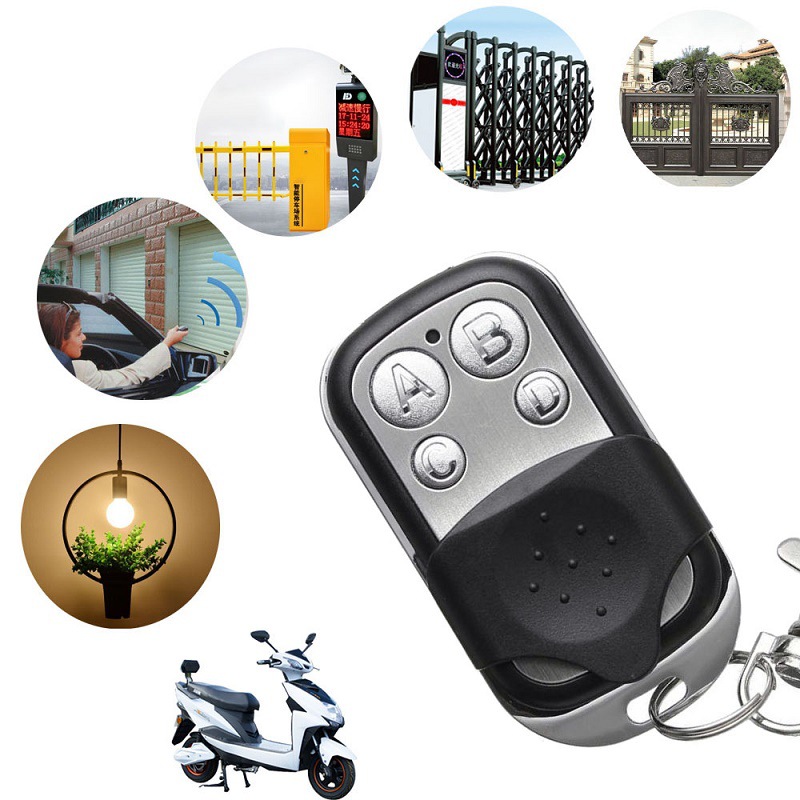

Application: Remote control electric doors, windows, switches, security alarm systems, etc.

New Quick Copy Remote Control Product Specification

New fast copy type remote control product description

1. Chip that can be duplicated:

2260 (all manufacturers), 2262 (all manufacturers), PT2264, 5326 (all manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers), HCS101, HCS200/HCS201 (partial codes), HCS300/HCS301 (partial codes), and some microcontrollers..........

2. Decoding Method:

Press both the unlock and lock buttons at the same time (some shells are the up and down buttons), the LED indicator flashes three times, release any of the buttons you pressed, and click the button you released three times. The LED indicator will enter a fast flashing state, at this time, all the data in the memory will be cleared. After clearing the data, the remote control will not light up no matter which button you press.

3. Duplication Method:

Hold the original remote control in one hand and the clone remote control in the other, keeping both as close as possible (ideally, place the two remotes side by side on the table with no space between them). Press the buttons for the desired clone operation, and when the LED indicator flashes three times quickly followed by a rapid flash, the clone operation is successful. The same operation method applies to other buttons. If the original remote control has a smaller transmitting power, it should be operated back-to-back with the clone remote control for a successful clone. If there are interference in the operating environment, avoid operating in that environment. If the clone operation is not working well, clear the code and try again.

4. Features of the New Dual-Copy Remote Control:

The four buttons can respectively copy four different types of chips, that is, one remote control can operate four different types of facilities. The speed of copying data is fast, and it is less likely to lose codes, with a long distance.

5. Common garage door, retractable door, barrier gate, parking space lock, and security alarm brands that can be copied:

Dalian Xisided Series (including New Somar), Hangzhou Menren Series, Shenzhen Zhongtian A/Zhongtian B, Foshan Hosai White/Hosai Blue/Hosai Clear/315MHz Hosai Sliding Door, Ningbo Duya 1/Duya 2, Ideal Series, Yantai Shengda Series, Yantai Boda Series, Shenyang Haitong Series, Shenyang Weilai Light Red/Green (including welding code and learning code), Xujia S60/S66 Series, Hongmen Series, Speed Series, Changshun Series, Master Series (including learning code), Shenzhen Shunchang Series, Jiangxi Baisheng Damolas Series (including welding code, learning code, rolling code), Juguang Series, Haizhu Series, Haiyu Series (including Sharp 315MHz), Jiahe Series (including Jiahe 315 Special Rolling Code), Iron General Fixed Code Series...............Continuing, the update is ongoing!

This model can copy foreign brand remote controls.
aeternanbsp12nbspbuttonsnbspalizenbspem2cnbspalizenbspem4cnbspallmaticnbspaemx1nbspallmaticnbspaemx2nbspallmaticnbspaemx4nbspallmaticnbspeuropenbspautonbsparmy2nbspallmaticnbsparmy1nbspallmaticnbsparmy4nbspallmaticnbspmx1nbspallmaticnbspmx2nbspallmaticnbspmx4nbspalltronicnbsps4291 alltronic S4292 alltronic S4294 alltronic S429M alltronic S425 ansonic SA4341e ansonic SA4342e ansonic SA4343e ansonic SA4344e ansonic SA4341m ansonic SA4342m ansonic SA4342M aperton CPS1 aperton CPS2cps4 avidsen 100601 micromark mm23164 avidsen 104505 avidsen 100951 avidsen 100955 avidsen 100550 avidsen 100400
bampd bnd bd 0621704333ebd bampd bnd bd 062171 bampd bnd bd 4333anbsp bampd bnd bd 062162 bampd bnd bd ptx4 059120 bampd bnd bd 059116 belfox dhs4331 belfox dhs4332 belfoxdhs4334 dip switch version belfox dhs 7733 dip switch version benincan bplot1w benincan bplot2w benincan bplot4w benincan bplot2wms benincan bpt2wk benincan bpt4wk benincan bplotx1w benincan bplotx2w benincan bplotx4w benincan bptogo2wbenincanbsptogo4wpnbspbenincanbsptogo2wknbspbenincanbsptogo4wknbspbesidenbspbezapnbspbesidenbsphitnbspbftnbspte01nbspbftnbspte02nbspbftnbspte04nbspbandy
camenbspt432nbspcamenbspt434nbspcamenbsptop432anbspcamenbsptop434anbspcamenbsptop432nbspcamenbsptop432nanbspcamenbsptop434nanbspcamenbsptop432mnbspcamenbsptop434mnbspcamenbsptam432sanbspcamenbsptop432sanbspcamenbsptop432nanbspcamenbsptwin2nbspcamenbsptwin4nbspcamenbsptop432snbspcamenbsptop434manbspcardinnbsps476nbsptx2nbspcardinnbsps476tx4nbspcasalinbspgeniusnbsp433nbsp2nbspcasalinbspgeniusnbsp433nbsp3nbspcasalinbspja400nbsptm433nbspcasalinbspja401nbspcasalinbsptm433nbspcasitnbsperts92bnbspcasitnbsperts92tnbspcasitnbsperts20dbnbspcasitnbsperts20dqnbspcasitnbsperts476dnbspcasitnbsperts476qnbspcasitnbsptxs1nbspcasitnbsptxs2nbspcasitnbsptxs3nbspcasitnbsptxs4nbspcasitnbsptxs6nbspcasitnbsperts97bnbspcasitnbsperts97tnbspcelinsanbsps10nbsp1nbspcelinsanbsps10nbsp2nbspcelinsanbspsaw1nbspcelinsanbspsaw2nbspcenturionnbspclassicnbspcenturionnbspsmartnbspcenturionnbspsmart2nbspchamberlainnbspnbspliftmasterSears Craftsman 4330E Chamberlain LiftMaster MotorLift Sears Craftsman 4332E Chamberlain LiftMaster MotorLift Sears Craftsman 4333E Chamberlain LiftMaster MotorLift Sears Craftsman4335enbspcpsnbsptcp3nbspcpsnbspjollynbsp4nbspcpsnbspcps1nbspcpsnbsptcp3nbspcpsnbspcps2nbspcpsnbsptcp3nbspcpsnbspcps4nbspcpsnbsptcp3nbspcpsnbspem1cvnbspcpsnbspem2cvnbspcpsnbspem4cv
daspinbsphappy2nbspdaspinbsppops2anbspdaspinbsppops433nbspdeanbsp433nbsp1nbspdeanbsp433nbsp2nbspdeanbsp433nbsp4nbspdeanbsppuntonbsps2nbspdeanbspmionbsptd2nbspdeanbspmionbsptd4nbspdeanbspgenienbspdeanbspgoldnbspdelmanbspmizardnbsp433nbsp1nbspdelmanbspmizardnbsp433nbsp2nbspdelmanbspkingnbsp433nbsp2nbspdelmanbspkingnbsp433nbspdelmanbspmiz433nbspdickertnbspmahs433nbsp01nbspdickertnbspmahs433nbsp04nbspdickertnbsps10433a1l00nbspdickertnbsps10433a4l00nbspdickertnbsps20433a1l00nbspdickertnbsps20433a4l00nbspdickertnbsps20433a1000nbspdickertnbsps20433a4000nbspdickertnbsps5433a2l00nbspdickertnbsps5u433a2l00Ditech。

Notes

If the operation is correct, it can be used directly. If it doesn't work or some buttons are not effective, please turn to clean and then copy, and pay attention to the change of light during the operation. Welcome to order various styles of remote controls.
