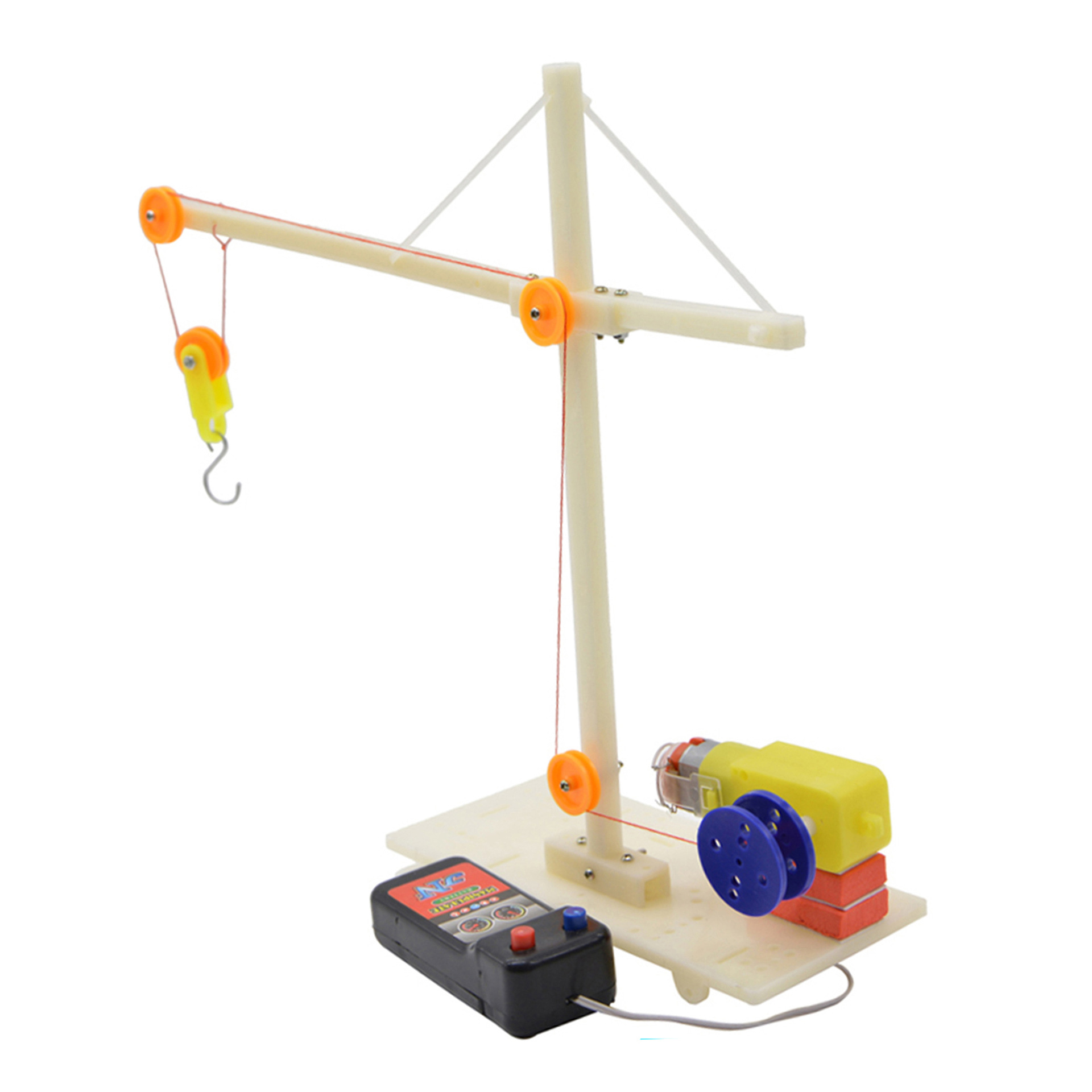

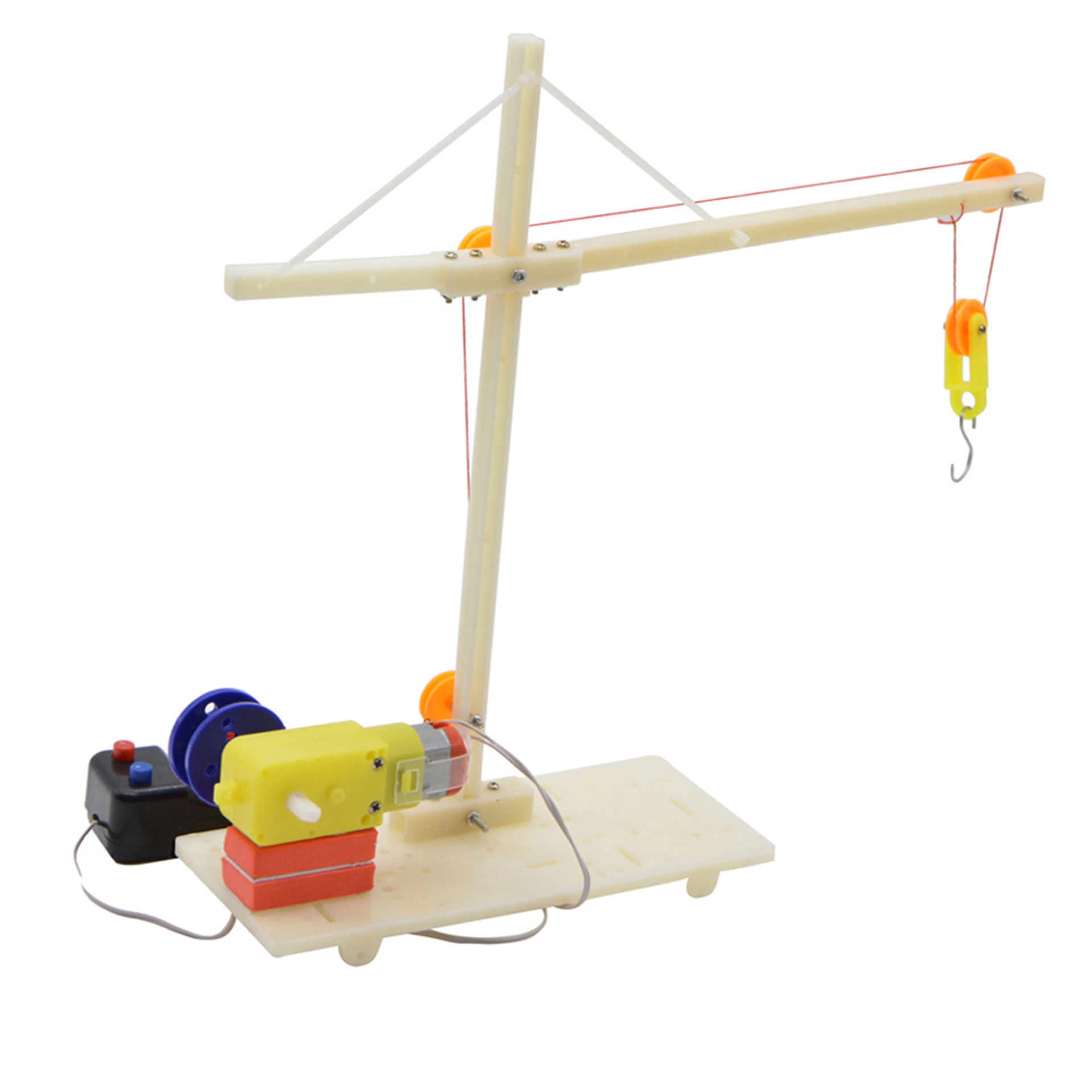

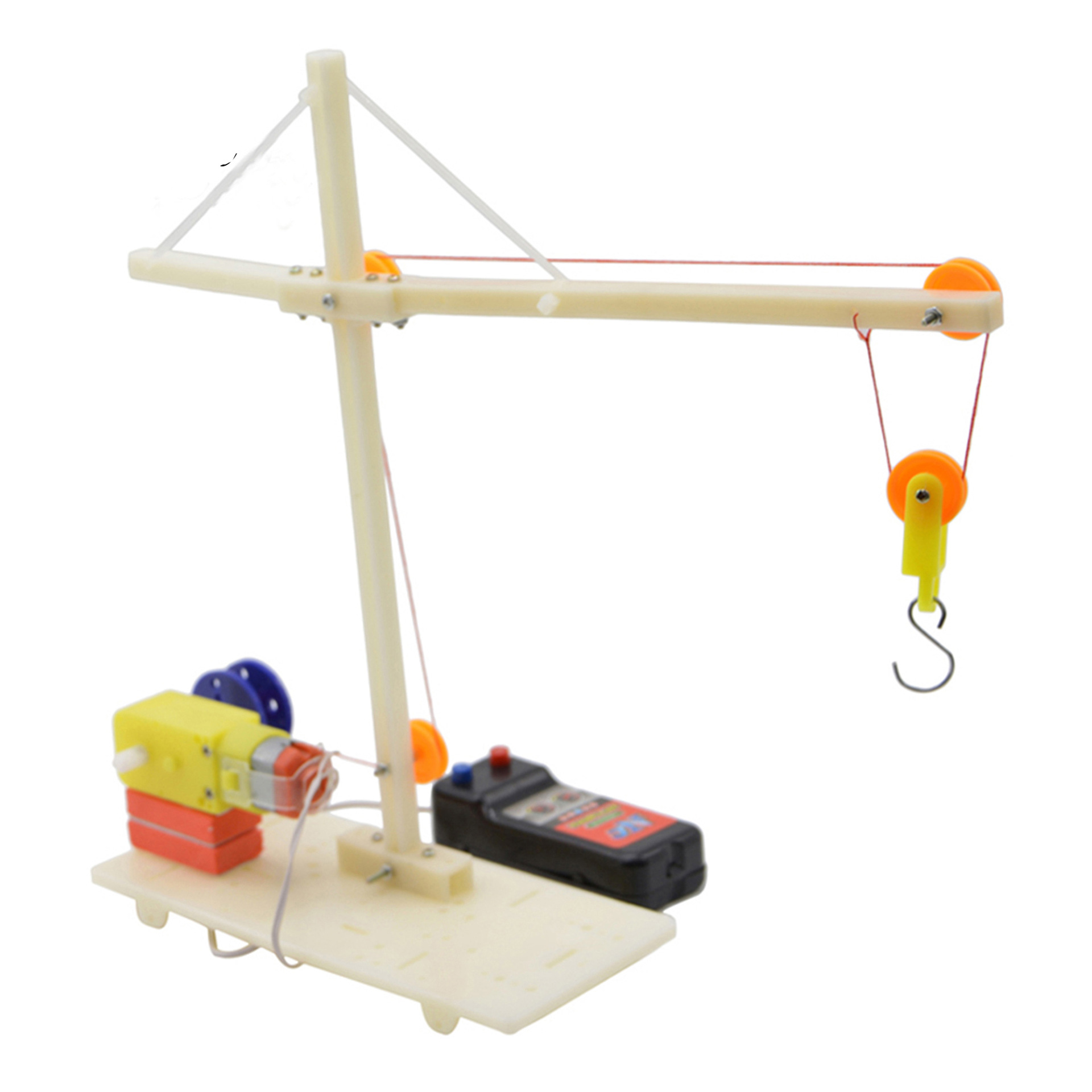

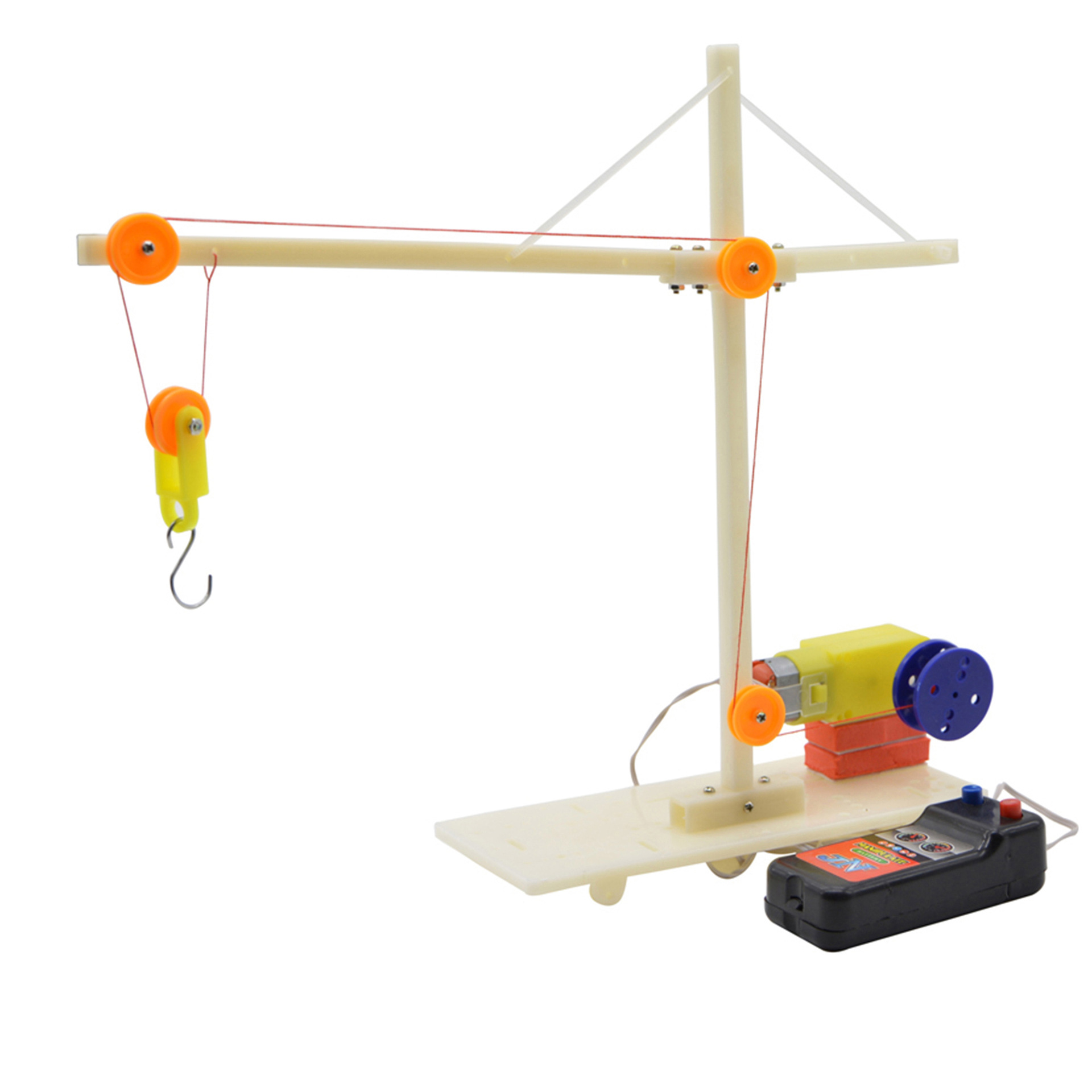

Product Name: Crane
Model Number: J0610
Size: 260*230*65 mm
Weight: 140g

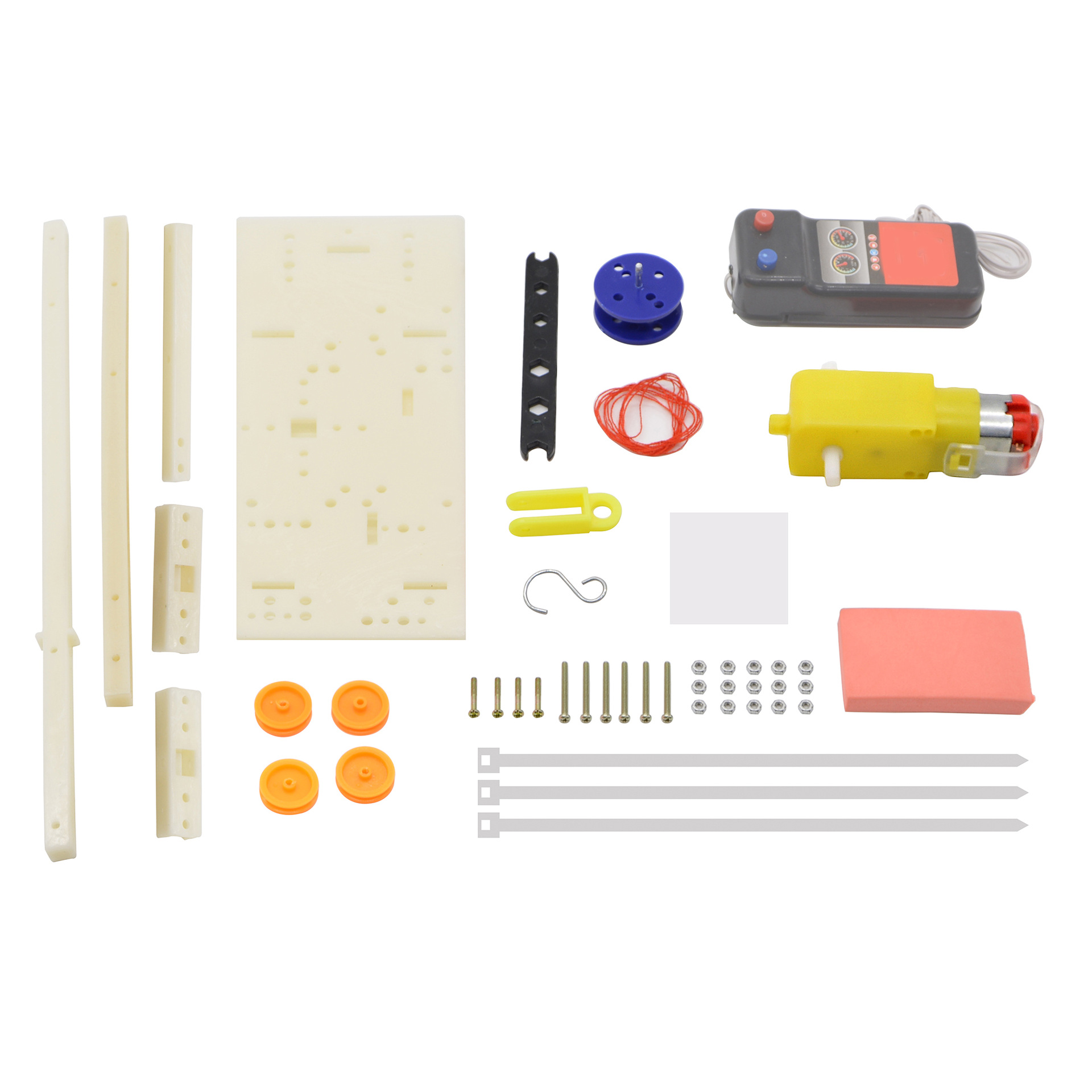

Material: plastic components + hardware components + motor unit + wood
Packaging: 150 pcs
Box dimensions: 600*500*450mm
Scientific Insights:
The ancient Greeks classified pulleys as simple machines. As early as 400 BC, the ancient Greeks already knew how to use compound pulleys. Around 330 BC, Aristotle discussed the compound pulley system in his eighteenth problem in "On the Laws of Mechanics". Archimedes contributed much knowledge about simple machines and explained the kinematics theory of pulleys in detail. It is said that Archimedes alone used a compound pulley to pull a large ship loaded with goods and passengers. In the first century AD, Alexander the Great’s Hero analyzed and wrote down theories on compound pulleys, proving that the ratio of load to force applied is equal to the number of rope segments carrying the load, which is known as the "pulley principle".





Scientific Production:
1. Identify and prepare the materials required for the experiment.
2. Follow the instructions in the manual step by step for installation.
3. After installation, proceed with debugging.
Scientific Principles:
Pulley system: A pulley device composed of a fixed pulley and a movable pulley. It saves effort and can change the direction of force. However, it does not save work, as the pulley system uses more distance despite saving effort. To achieve both efficiency and the ability to change the direction of force, the fixed pulley and movable pulley can be combined into a pulley system.
A pulley system is composed of several fixed pulleys and moving pulleys, which can achieve both effort reduction and direction change of force. During use, the amount of effort reduction and the way the rope is wound depend on the performance of the pulley system.
Features: A pulley system hangs an object with several sections of rope, and the force required to lift the object is only a fraction of the total weight. The free end of the rope is counted as one section when it passes around the moving pulley, while it is not counted when it passes around the fixed pulley. Although using the pulley system reduces effort, it increases the distance traveled; the distance the power moves is greater than the distance the load moves. The amount of increased distance depends mainly on the number of sections the fixed pulley creates around the rope. By conducting experiments with the pulley system, it is easy to see that although it saves effort, it increases the distance—the distance the power moves is greater than the height the load rises.
Knowledge Treasure:
A pulley is a simple machine used to lift heavy objects and reduce effort. A pulley is a small wheel with grooves around it that can rotate around a shaft. A simple machine that consists of a disc with grooves that can rotate around a central axis and a rope (cord, tape, wire, chain, etc.) crossing over the disc is called a pulley.
Scientific Expansion:
In mechanics, a typical pulley is a circular wheel that can rotate around its central axis. There are grooves on the circumferential surface of the wheel, and ropes are wound around these grooves. When either end of the rope is pulled forcefully, the friction between the rope and the pulley causes the pulley to rotate around the central axis. A pulley is essentially a modified, rotatable lever. Its primary functions include pulling loads, changing the direction of force, and transmitting power, among others. A mechanism composed of multiple pulleys is called a "pulley system" or "multiple pulley". Pulley systems offer greater mechanical advantage and can handle heavier loads. Pulleys can also serve as components in chain or belt drives, transferring power from one rotating shaft to another. Based on whether the position of the pulley's central axis remains fixed or moves, pulleys are classified as "fixed pulleys" and "moving pulleys"; fixed pulleys have a fixed central axis, while moving pulleys have a movable central axis, each with its own advantages and disadvantages. By assembling a fixed pulley and a moving pulley together, a pulley system is created, which not only reduces effort but also allows the direction of force to be changed.
