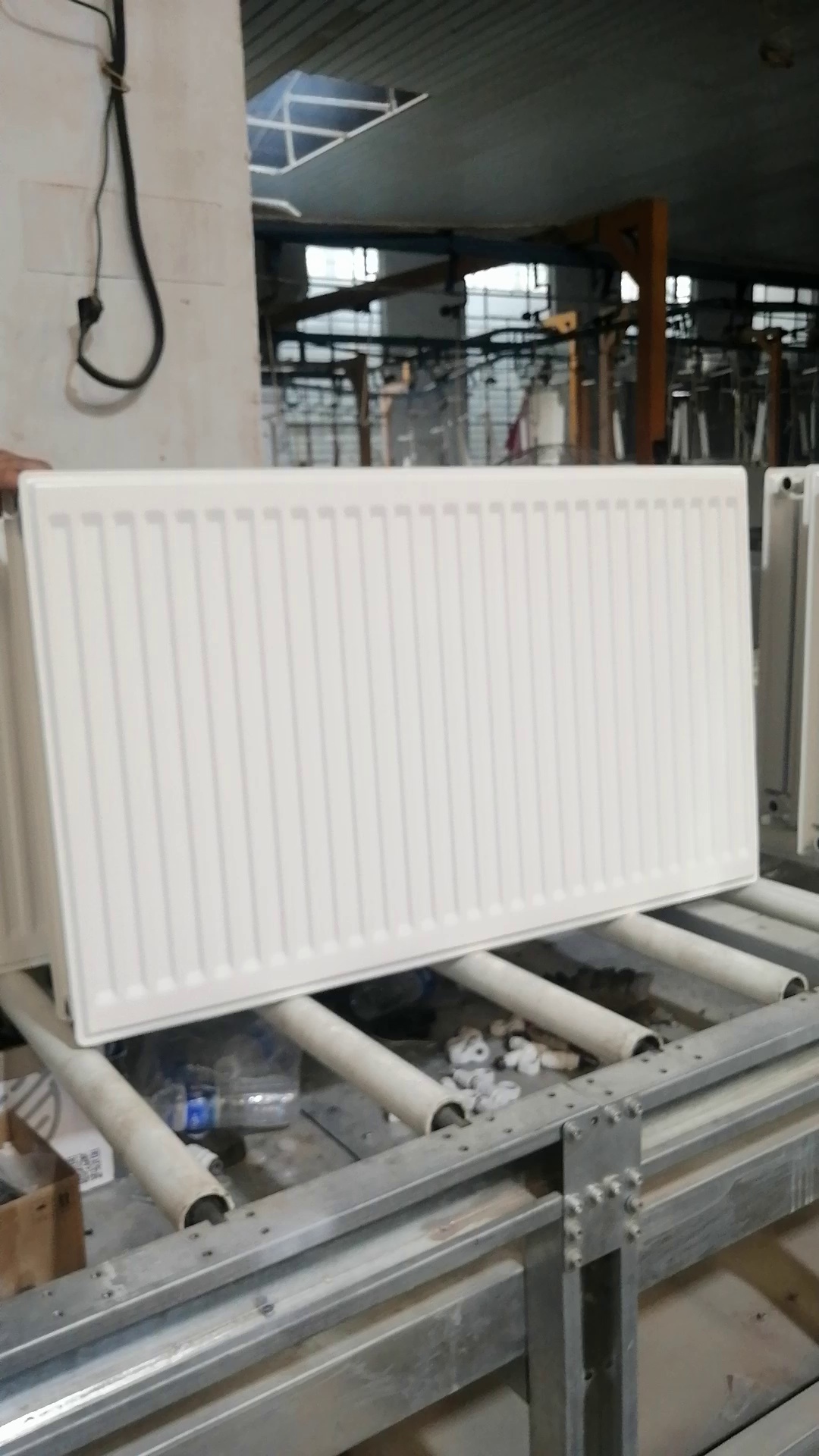

Steel Plate-type Radiator Steel Plate-type Radiator is an energy-efficient radiator made from high-quality cold-rolled low-carbon steel plates. Phone: 19858988858
Product: Steel Plate Radiator
Main Components: Waterway Plate, Top Cover, and Side Panels
Features: The lid and side panels are integrated molded, seamlessly connected, with rounded corners and no sharp angles, ensuring flatness.
Suitable, the close arrangement of convection fins is beneficial for convection heat dissipation and energy saving.
Interface Size: Internal Thread DN15
Packing: Bubble film plus two-sided cardboard protection, then packaging.
Color:
White (other colors can be provided upon request)
Type:
SGB -11| SGB -21| SGB -22| SGB -33
Height:
300|400|500|600|900|1600|1800mm
Length:
600=>3000mm【Stocked in common specifications, such as SGB -22 (PKKP), others require special order】
Product Details

















For specific details, please consult customer service at 19858988858.


Contact customer service directly at 18538120969
A. Floor-Embedded Series
B. Enclosed Series of Window Sills and Curtain Walls
C. 美艺系列
D. Bench-style radiator
E. Standard Series
F. Standard copper tube convection radiator
G. Forced Convection Heat Sink Series
H. Steel Series
I. Steel Plate Heat Exchanger Series
