Lifting BeltIntroduction

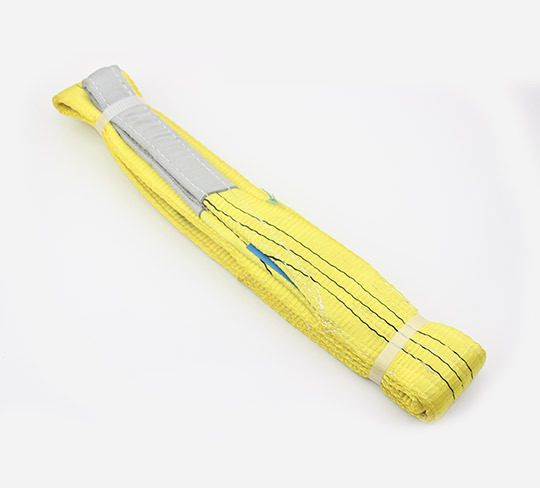

Hanging belt introduction: Hanging belts can be classified by type into flat hanging belts, flexible hanging belts, and loop hanging belts. Flat hanging belts can be divided into single-layer flat hanging belts, double-layer flat hanging belts, and multi-layer hanging belts. Flat hanging belts are made of 100%PES through weaving and stitching. The two ends of the hanging belt can be strengthened with ring eyes or metal accessories to improve strength. Flat belts are woven by looms at one time and processed with different stitching methods. The standard tonnage of flat belts can be distinguished by color, and different tonnage can also be distinguished by different widths. Flexible hanging belts can be classified into A-type and B-type flexible slings, commonly known as: round sets. They are made by filling the bearing core after the circular shield is sewn by machine equipment. The standard tonnage is indicated by color.

Basic parameters: The maximum load range of flat hoisting straps and flexible straps is 1-30 tons, with safety factors of 4.5/5/6/7 times; tonnage is indicated by 1T-purple, 2T-green, 3T-yellow, 4T-grey, 5T-red, 6T-brown, 8T-blue, 10T-orange, 12T-orange, 20T-orange, 30T-orange; the length range is 1-100 meters; the temperature range for use is -40℃—100℃.

Usage Notes: When performing hoisting operations, this flat hoisting strap can provide a wide, smooth bearing surface, making it particularly suitable for hoisting objects with soft surfaces. Since there is no contact with metal parts, it causes minimal damage to the painted surfaces of the hoisted objects. Flat hoisting straps offer higher protection against wear and damage. In general hoisting applications, the superiority of the hoisting strap allows it to have a relatively long service life. However, it is also necessary to use the correct protection sleeve during hoisting operations to prevent the hoisting strap from being cut by sharp objects or the hoisted object.

The advantages of hoist straps are: 1. High strength and durability: Hoist straps are made of high-strength materials, making them strong and durable. 2. Easy to use: Hoist straps are designed with easy-to-use features, making them convenient to operate. 3. Safety: Hoist straps are designed with safety features, making them safe to use. 4. Versatility: Hoist straps can be used for various purposes, making them versatile. 5. Cost-effective: Hoist straps are cost-effective, making them a good choice for budget-conscious users.

1. It can be single-layer, double-layer, or multi-layer, and the sewing methods are diverse.

2. The size can be determined according to customer requirements.

3. The bearing surface is wide, which can reduce the pressure of surface load.

4. When hoisting smooth and delicate objects on the exterior surface, it will not damage the hoisted object.

5. There are various methods of hoisting.

6. High strength-to-weight ratio.

7. Additional anti-wear protection sleeve and anti-cut-off protection sleeve can be added.

8. Features unique labels, using international standard colors to distinguish the carrying tonnage, and it is easy to identify even when the sling is worn.

9. Lightweight and soft, easy to use even in small spaces.

10. The surface can be treated with PU hardening to enhance wear resistance.

11、Non-conductive, no risk of electric shock.

12、Complies with European Standard EN1492-1:2000 and Chinese Industry Standard JB/T8521-1997.

13、Lifting strap elastic elongation rate ≤ 7%.

14、Temperature Range: -40℃—100℃

Maintenance Method

1. When moving the hoisting belt and the cargo, do not drag it. Do not allow it to become knotted.

2. Do not connect the soft ring with any device that may cause damage or wear.

3. When bearing, it should not be twisted.

4. It is not recommended to use a sling without a cover to carry goods with sharp corners or edges.

5. Avoid the soft ring opening angle exceeding 20°.

6. Should be stored in a shade and without ultraviolet radiation.

7. The hoisting belt should not be stored next to open flames or other heat sources.

8. When not using the hoisting strap, it should be placed in a place with good lighting.
