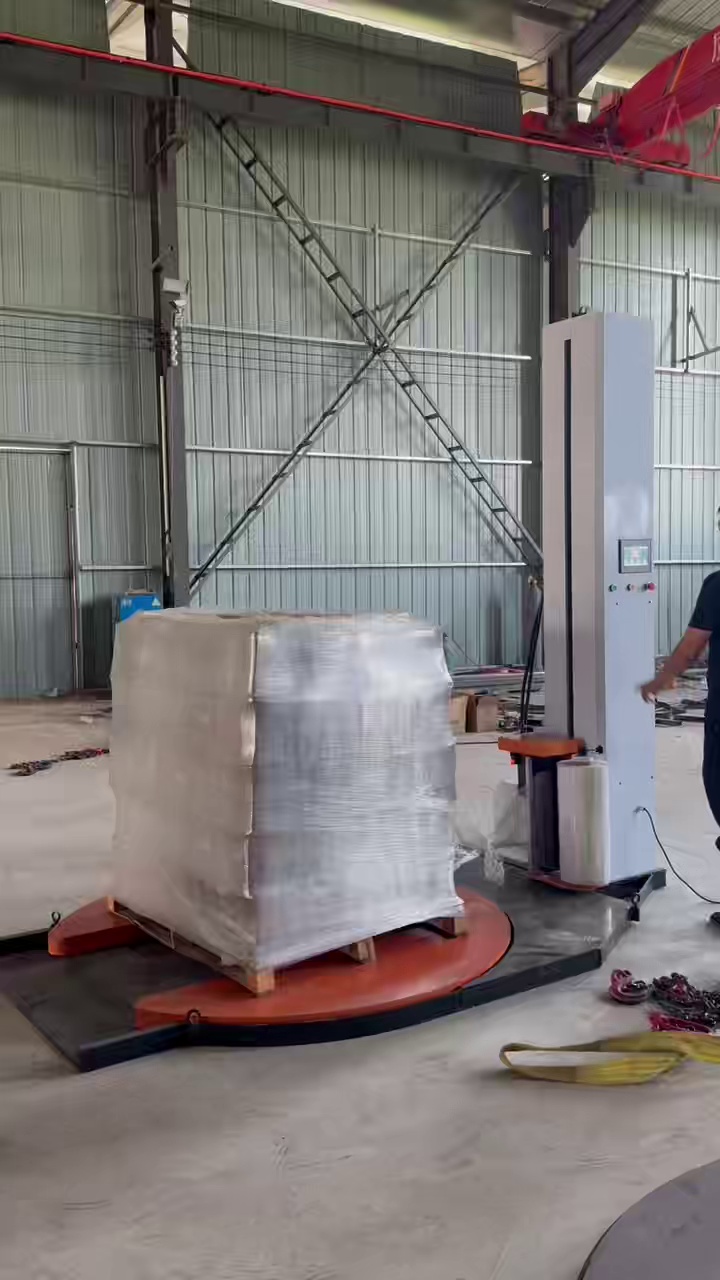

m fold winding film packaging machine forklift direct fork packing machine

Zhejiang Weimu Intelligent Equipment Co., Ltd. and Zhejiang Zhizhen Intelligent Technology Co., Ltd. are engaged in production and operationLabeling machines, box sealing machines, packing machines, unpacking machines, winding machines, sealing machines, and other automated packaging equipment

Widely used in industries such as food, pharmaceuticals, electronics, personal care products, and logistics.

We always adhere to the business philosophy of "quality first, customer priority", providing customers with high-quality products and comprehensive after-sales service.

Store address: No. 20832-20836, 4th Street, Zone 7, Yiwu International Production Materials Market, Zhejiang Province. Phone: 18969-5298

Factory Address: 2nd Floor, Building 4, Liandong U Valley Area, No. 140, Tongtai Road, Yiwu City, Zhejiang Province. Phone: 1816071877

Welcome new and old customers to contact us!

Tilt ring diameter: 1 6 5 0 mm

Packaging height: 2200 mm (max)
Tilt Table Height: 78mm
Turning unit load capacity: 8,000 kg
Total weight of the machine: 600 kg
Total machine power: 1.5 kw
Power supply voltage: Single-phase, 220V
Turntable speed: 0-12 revolutions per minute
Packaging material: L LDPE stretched film
Thickness: 1 7 -35μm Width: 500mm
Membrane Roll Inner Diameter: 76mm
Maximum outer diameter of the membrane roll: 250mm
Overall dimensions: 2.6 meters in length, 1.6.5 meters in width, and 2.63 meters in height
Main Performance Control System:
PLC programmable control; the number of winding layers and iterations can be set;
Photoelectric switch, automatically sensing the height of the goods;
Turntable variable frequency speed control, adjustable from 0 to 12 rpm; automatic reset film system for the turntable;
Membrane frame dynamic pre-stretching mechanism, with a pre-stretch capability of 300%;
The upward and downward movement speeds of the membrane frame can be adjusted individually, and the film feeding speed is adjustable. The number of windings at the top and bottom are controlled separately by the film system servo mechanism—just pull to operate.
Touch the display screen; the operation is simple and easy to understand, clear at a glance.
