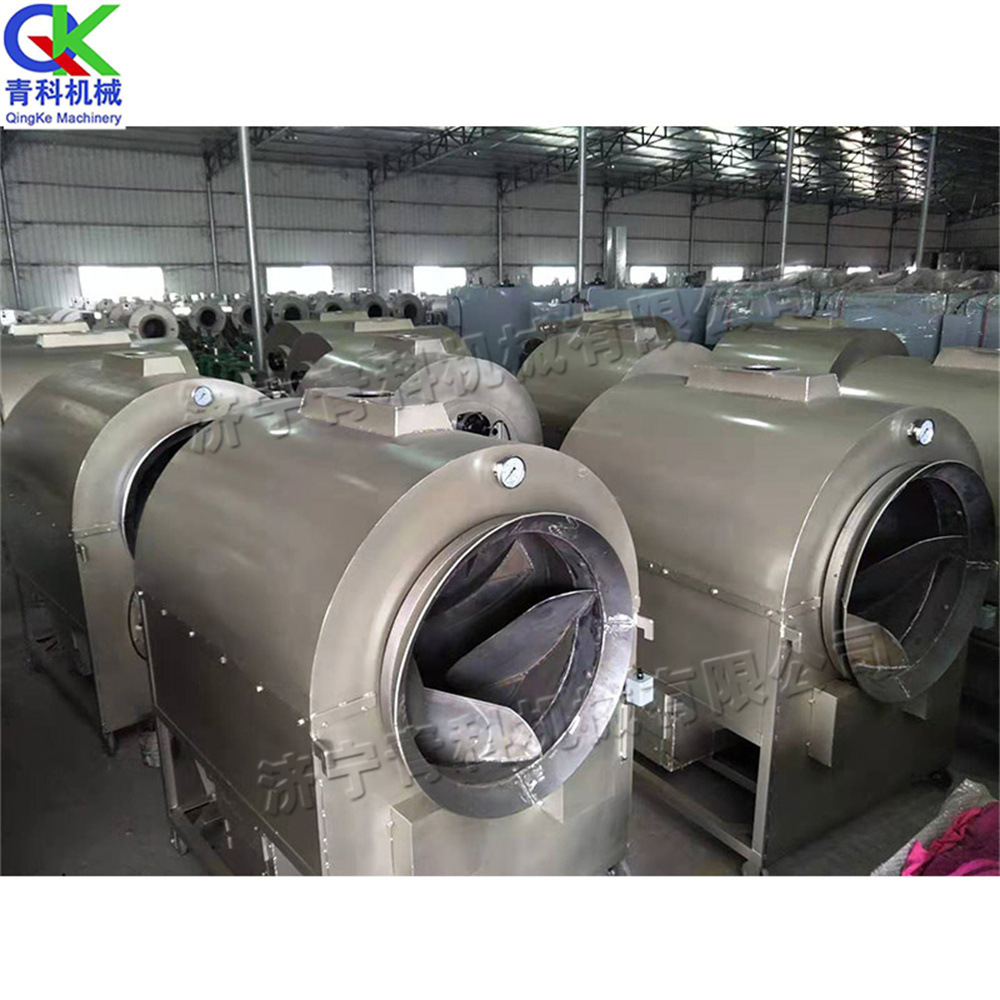

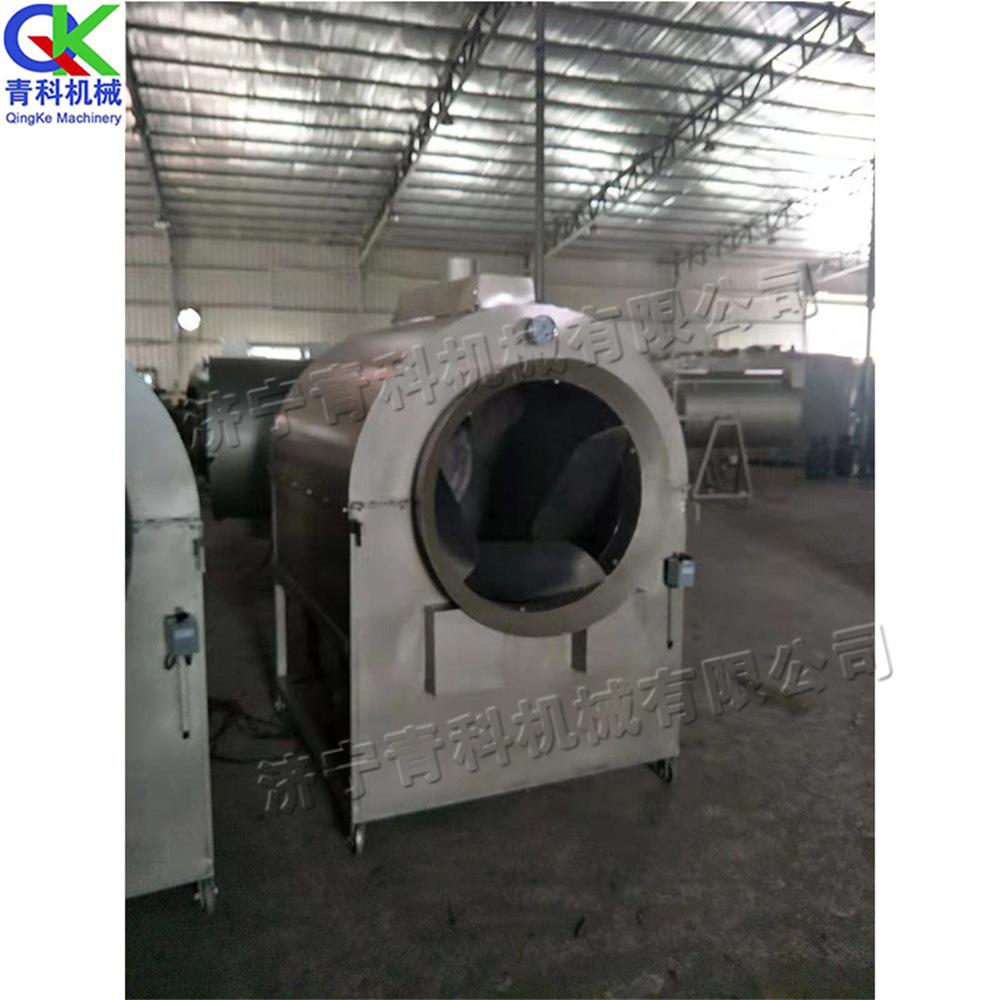

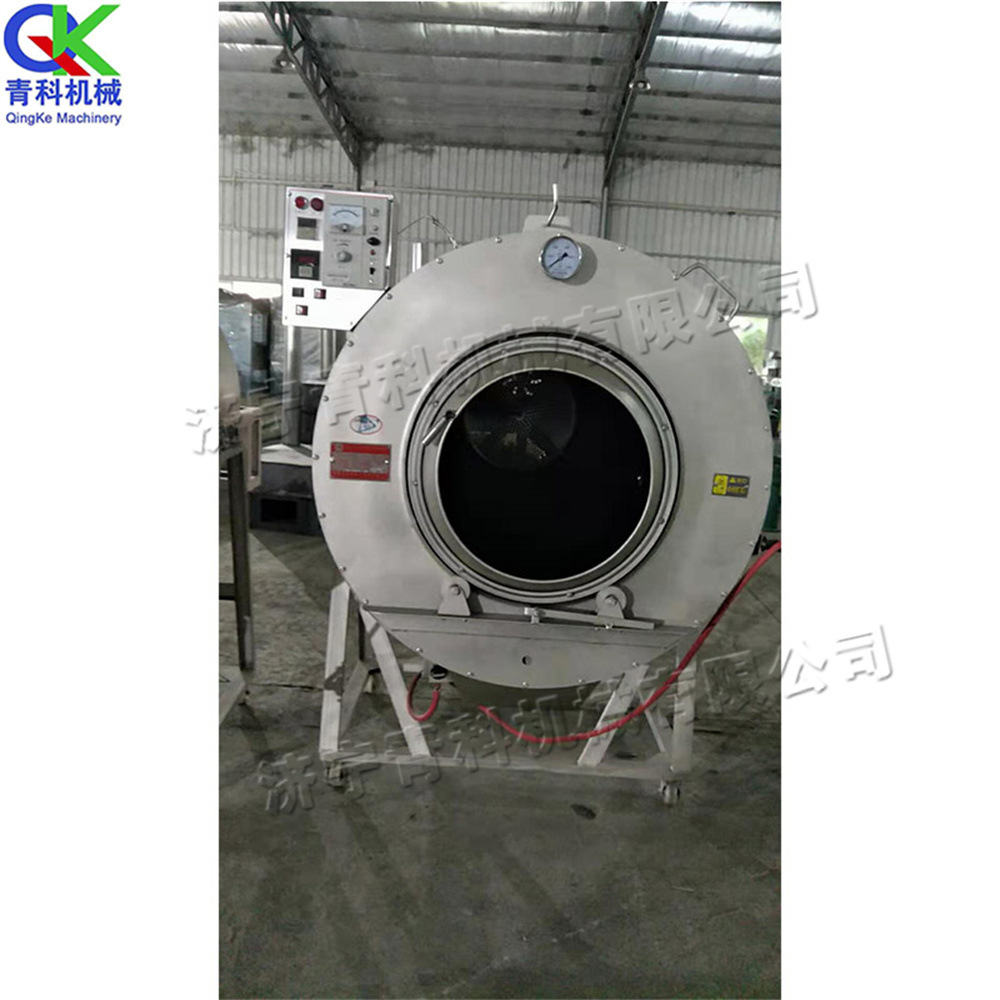

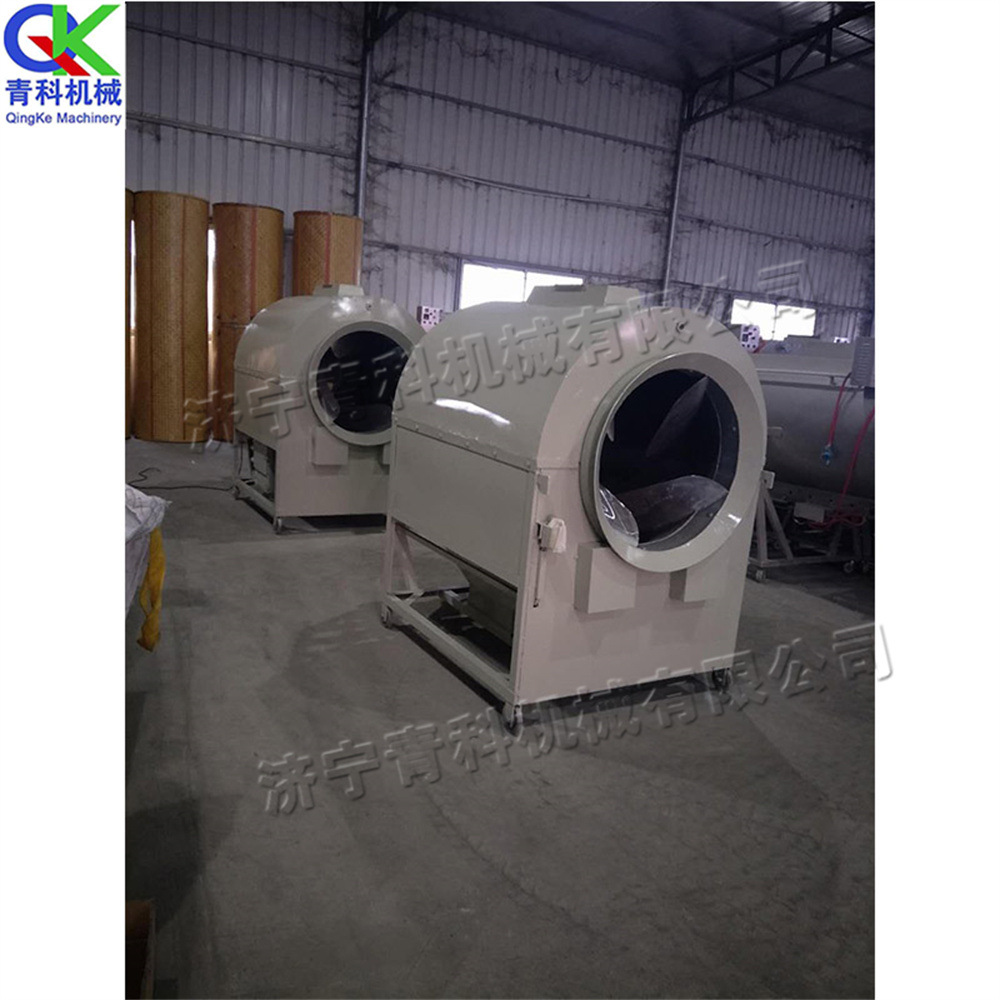

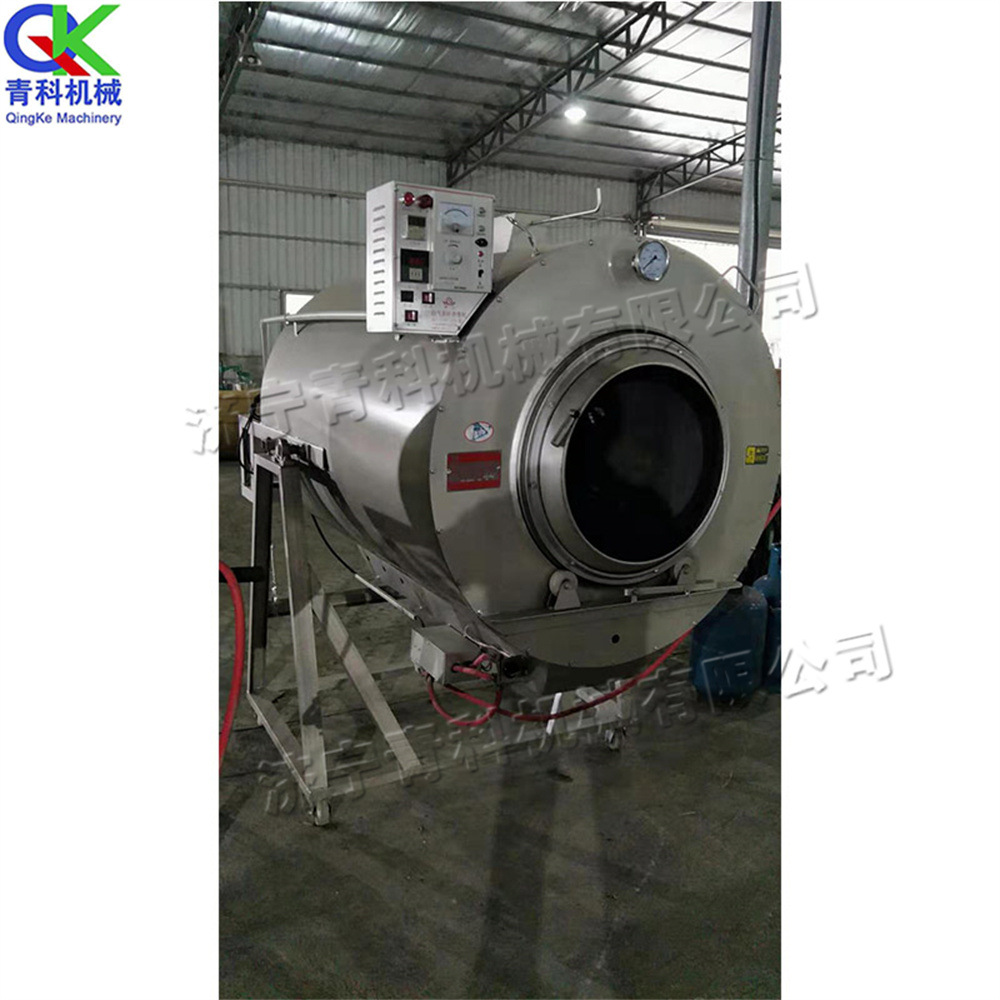

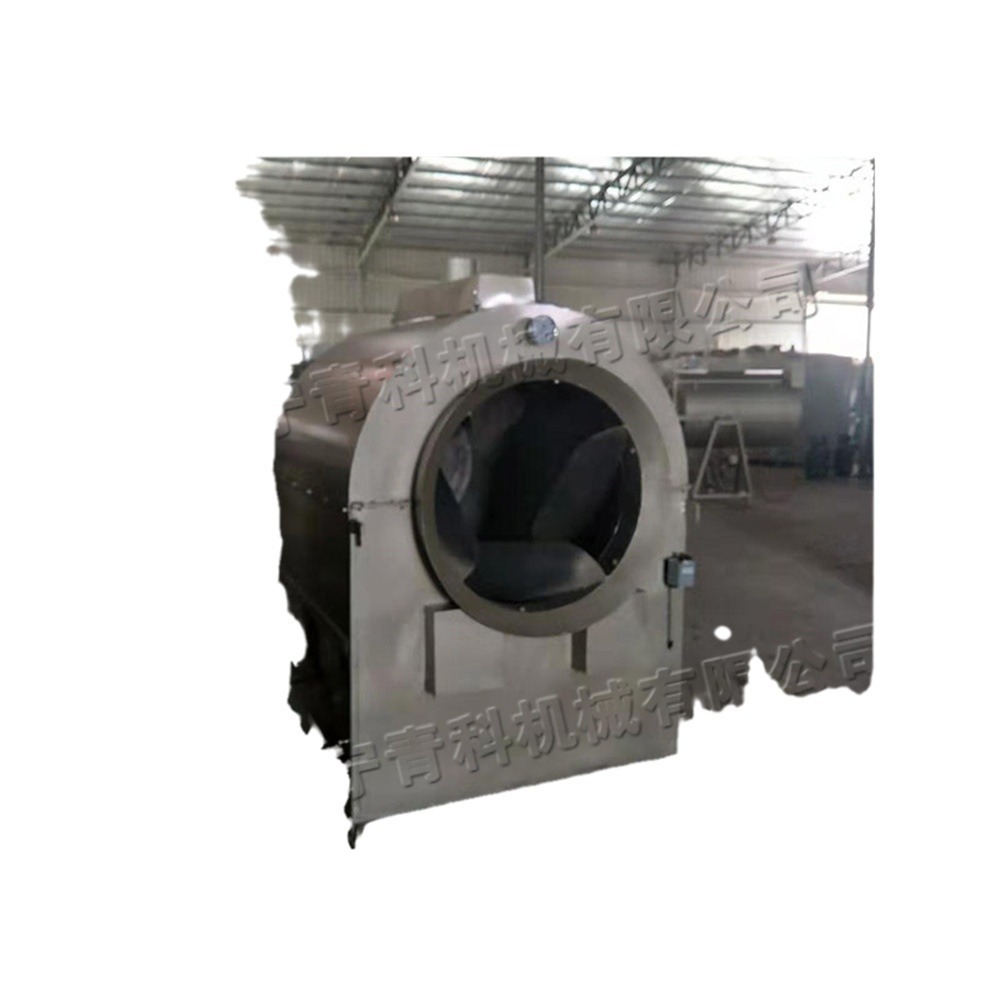

small tea automatic roaster liquefied gas tea automatic removing green machine drum type tea frying equipment

Product Introduction

This series of tea rolling fixation machine is one of the products produced by this factory. The machine utilizes the rotation of the cylinder to continuously transport the tea through the guide plates inside the cylinder. Its features include: 1) High fixation temperature, making operation easy and straightforward; 2) High temperature of the hot air inside the machine, with strong penetration power, resulting in good color of the fixed tea leaves, intact leaf structure, high aroma, and effectively preserving the nutritional components within the tea; 3) High efficiency in fixation, suitable for assembly line operations in tea factories; 4) This machine can be used for fixation, as well as drying and roasting, offering a wide range of applications.

Technical Parameters

1. Gas Tea Fixing Machine: qk-6CST-90I

2. Physical dimensions (length × width × height): 2,170 * 1,290 * 1,920 mm

3. Inner diameter of the drum: 875 mm

4. Length of the straight section inside the drum: 1270 mm

5. Drum motor power: 0.75kW

6. Drum motor speed: 1390 r/min

7. Rotor motor rated operating voltage: 380V

8. Exhaust fan power: 0.069kW

9. Exhaust fan speed: 1180 r/min

10. Rated operating voltage of the exhaust fan: 220V

11. Drum operating speed: 1.0–4.1.5 r/min

12. Weight: 366 KG

The product images are for reference only. The actual color and style will depend on the delivered item. The factory ships randomly in order of order placement, with no quality issues; returns or exchanges are not accepted.
