A gentle reminder: The prices and parameter images on the website are for reference only. For machine parameters and detailed specifications, please contact us for verification.

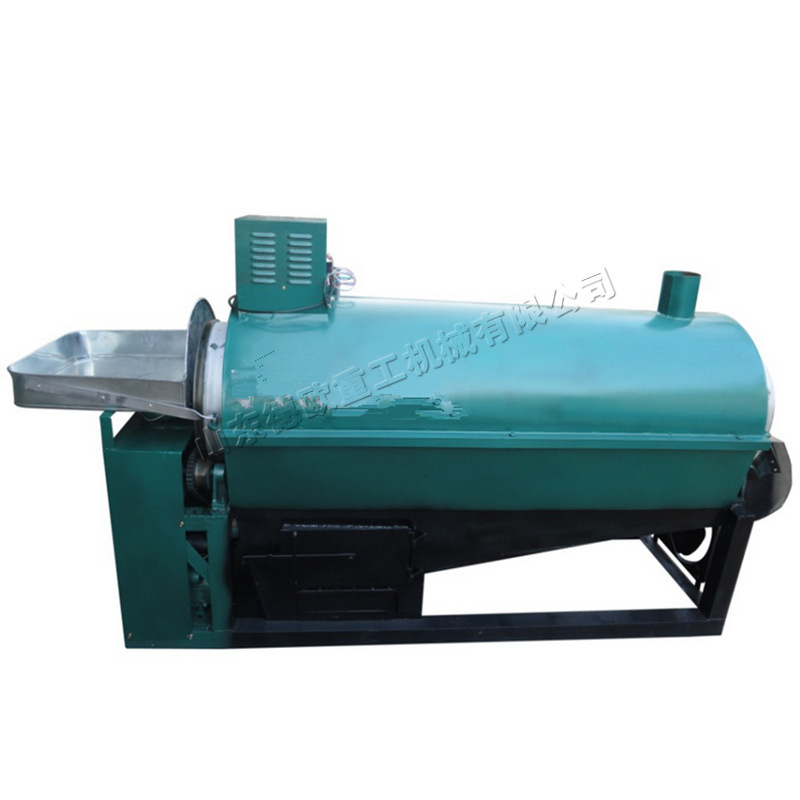

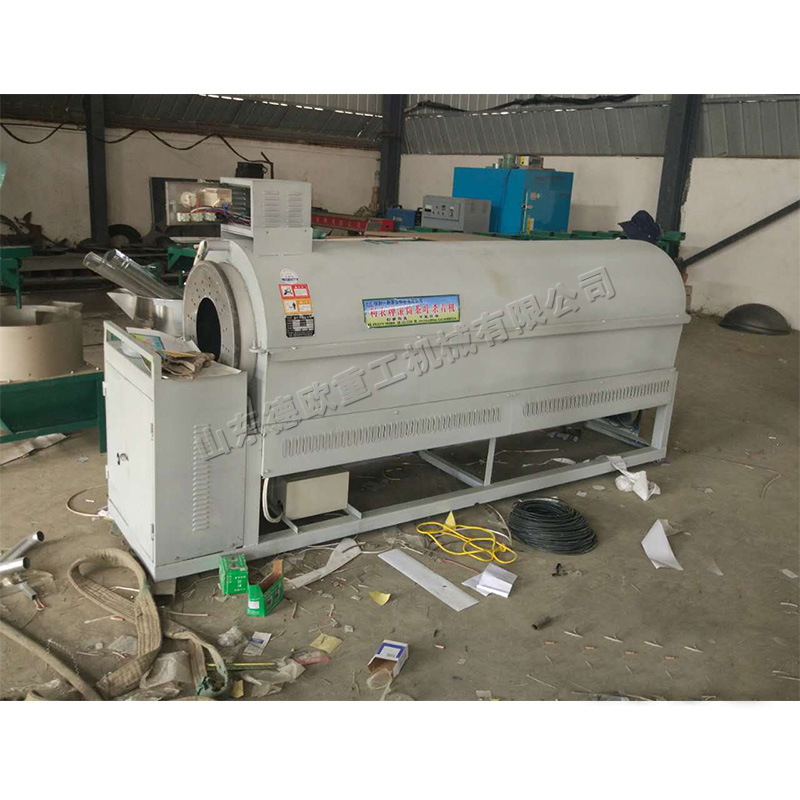

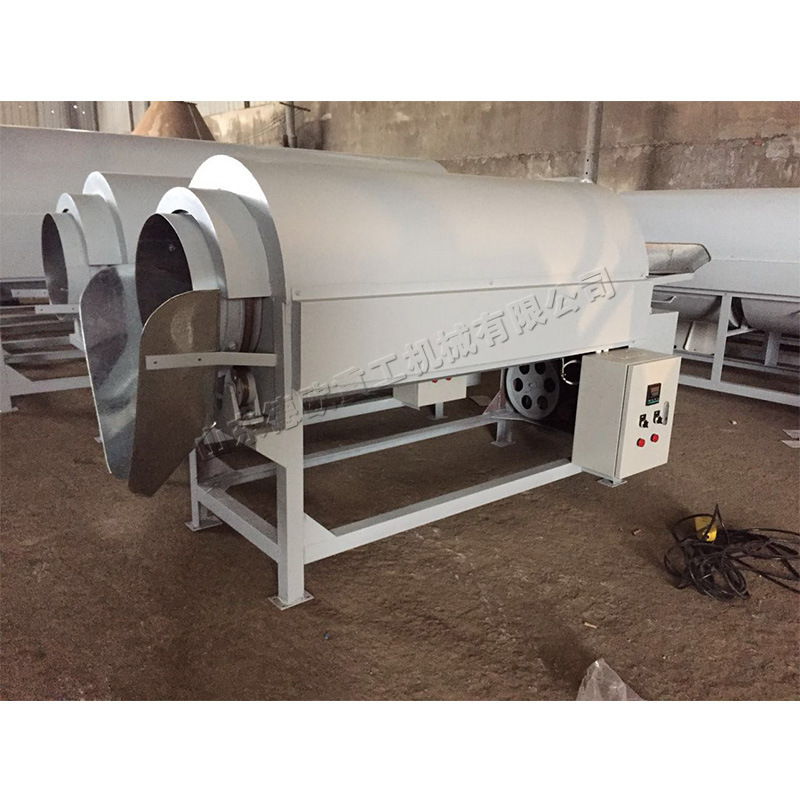

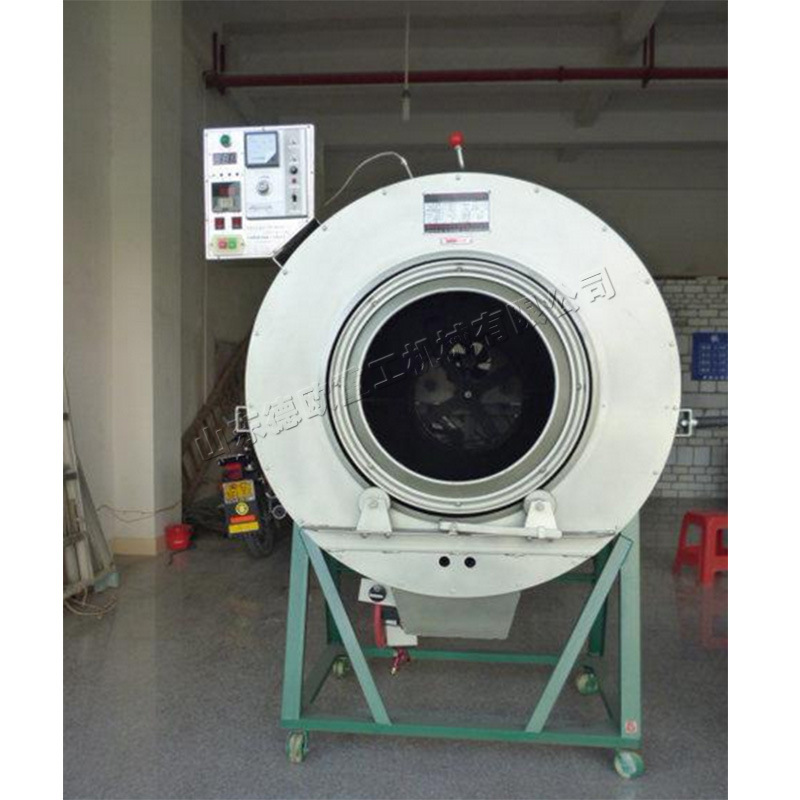

This series of tea rolling fixation machines is one of the main products produced by this factory. The machine utilizes the rotation of the cylinder to continuously transport the tea through the guide plates within the cylinder. Its features include: 1) High fixation temperature, making operation easy and straightforward; 2) High temperature of the hot air inside the machine, with strong penetration power, resulting in good color of the fixed tea leaves, intact leaf structure, high aroma, and effectively preserving the nutritional components within the tea; 3) High efficiency in fixation, suitable for assembly line operations in tea factories; 4) This machine can be used for fixation, drying, and aroma development, offering a wide range of applications.

Project | Unit | Specifications |
Physical dimensions | mm | 3500×850×1400 |
Supporting Power | kw | 1.0 |
Time-on production | kg/h | 50-90 |
Finishing temperature | ℃ | 100-180 |
Drum diameter | cm | 55 cm |
Overall machine quality | kg | 980 |















Please note the model number for online ordering. Before shipping, we conduct multiple inspections by quality control staff at each stage to ensure everything is correct before delivery. Since the machine is quite large and requires logistics transportation, minor scratches or paint peeling that occur during shipping are not covered under warranty returns or exchanges. If there are no quality issues, they are also not eligible for returns or exchanges. Thank you for your cooperation.
